Trim Tim 13

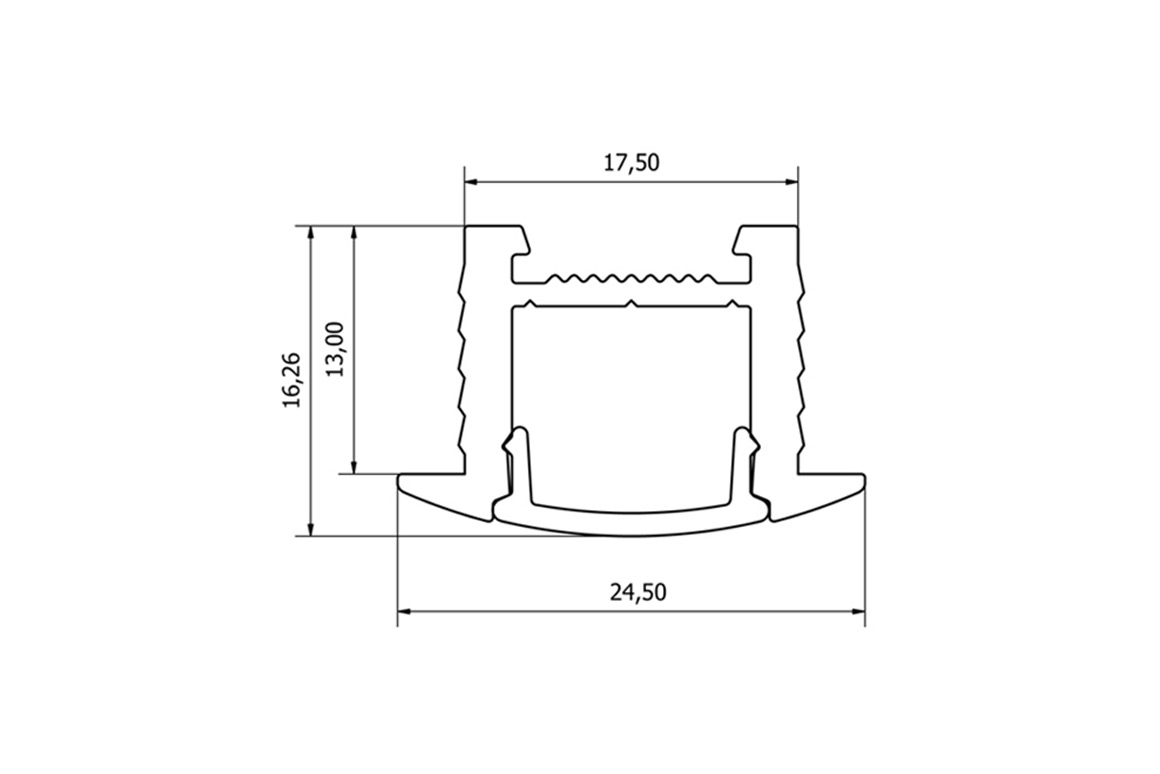

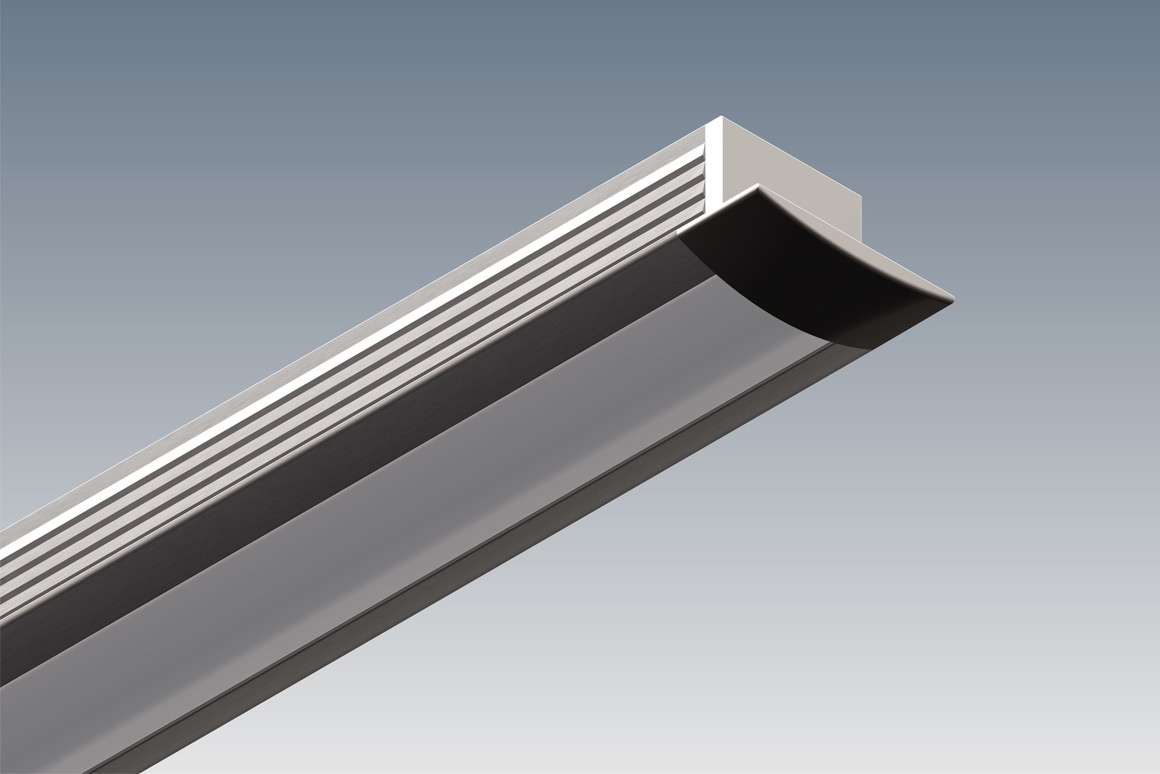

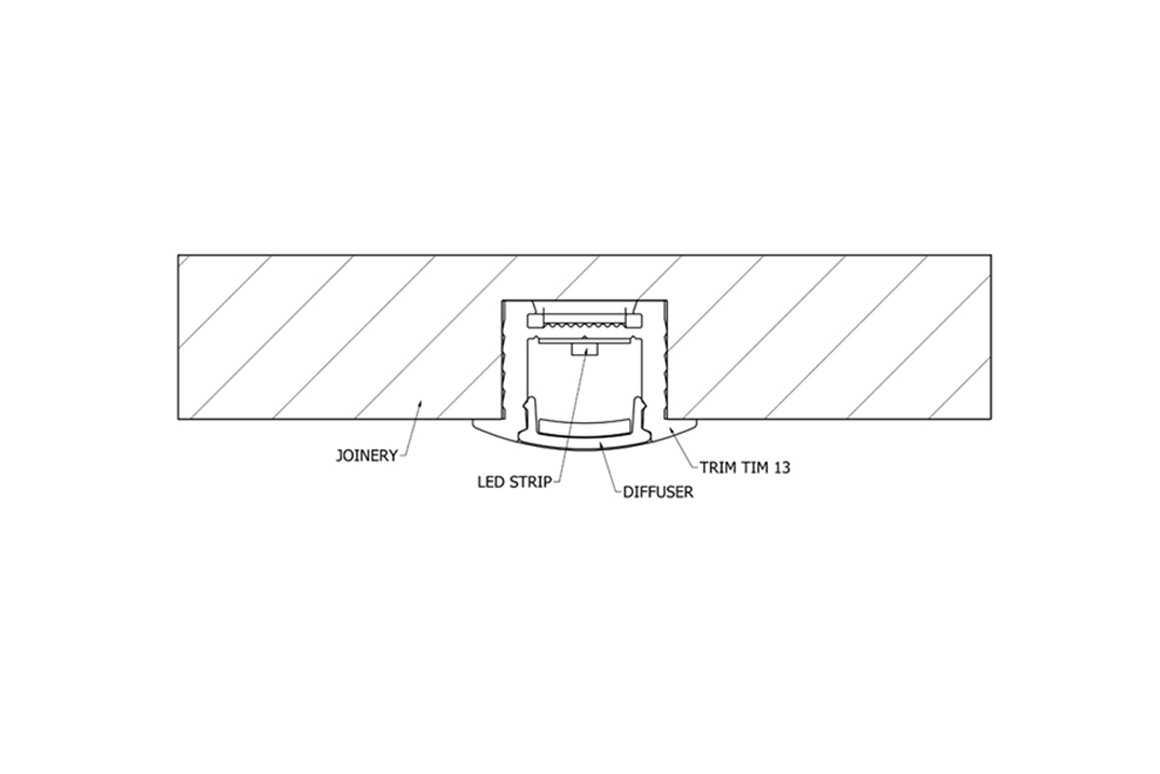

Trim Tim 13 has similar dimensions and features to Downhill Dan 14 with the added feature of recessing trims to cover the cut edges of joinery when recessing. Also featured are small ribs either side of the profile which allow Trim Tim 13 to be friction-fitted into an 18mm routed slot in joinery without the need for screws. The 13mm depth provides “dot-free” lighting in building materials as thin as 18mm.

SKU: TT13

Categories: Recessed

Product Information

Application

Task lighting in kitchen cabinetry, lighting for shelving or display units.

Installation

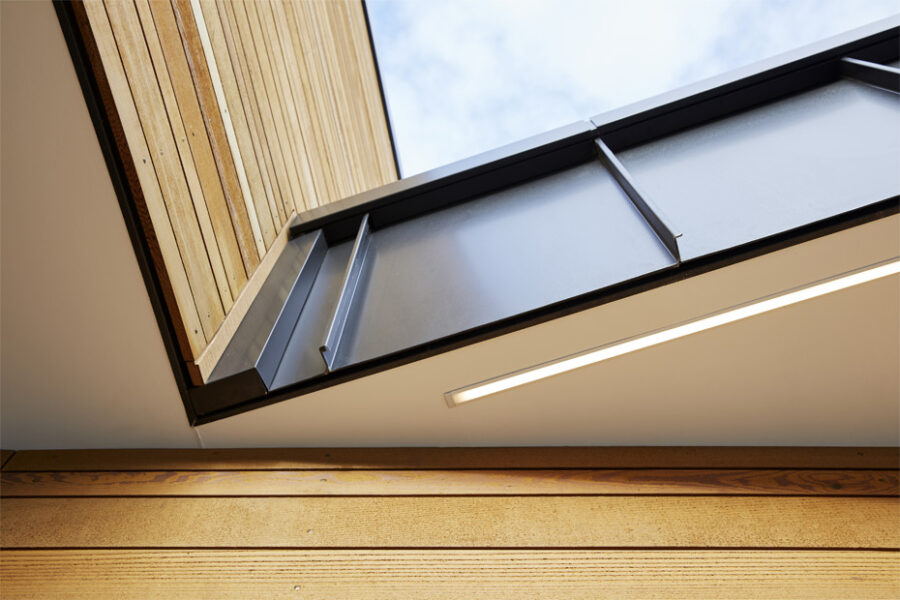

Interior and exterior (with IP65 or IP67 rated LED strip).

Material

Aluminium body, polycarbonate diffuser, AES plastic end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Opal Polycarbonate, Clear Polycarbonate

led strip options

View here

features

N Customised lengths and configurations, made to measure.
N New Zealand designed and made.
N Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
N Provides heat sinking for high wattage LED strips.
N Dust & grease protection.
