Tiny Tim 11

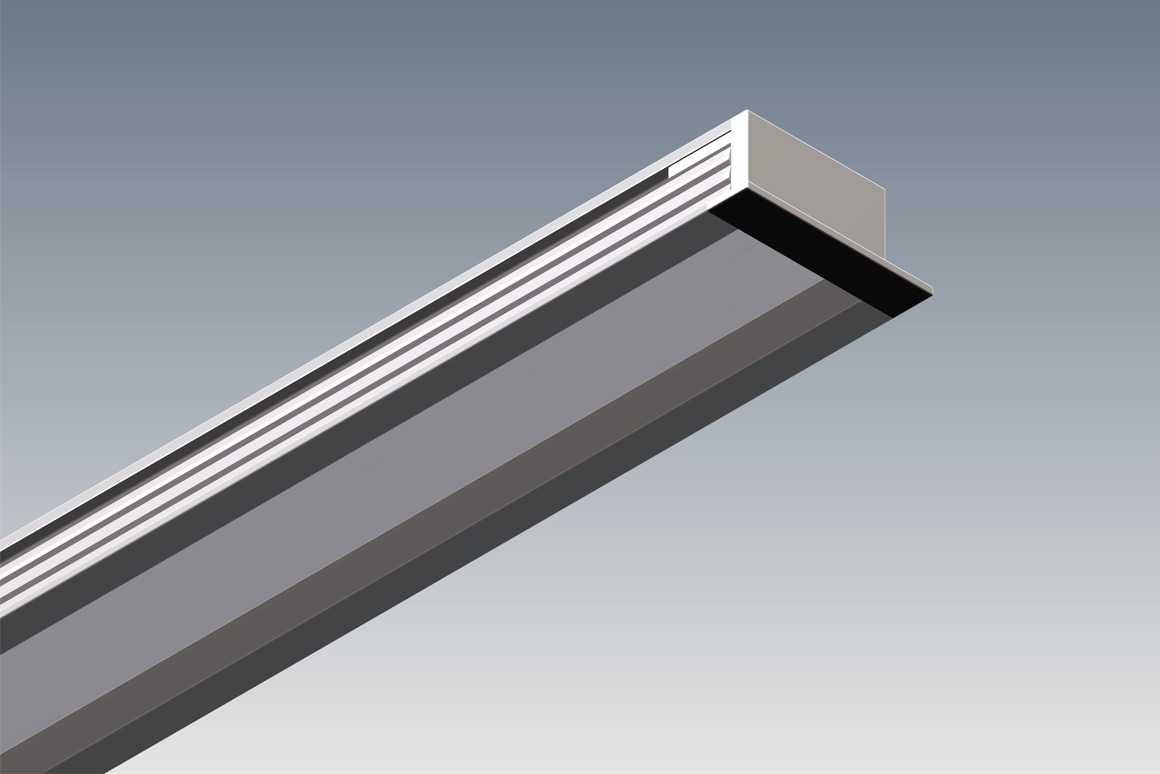

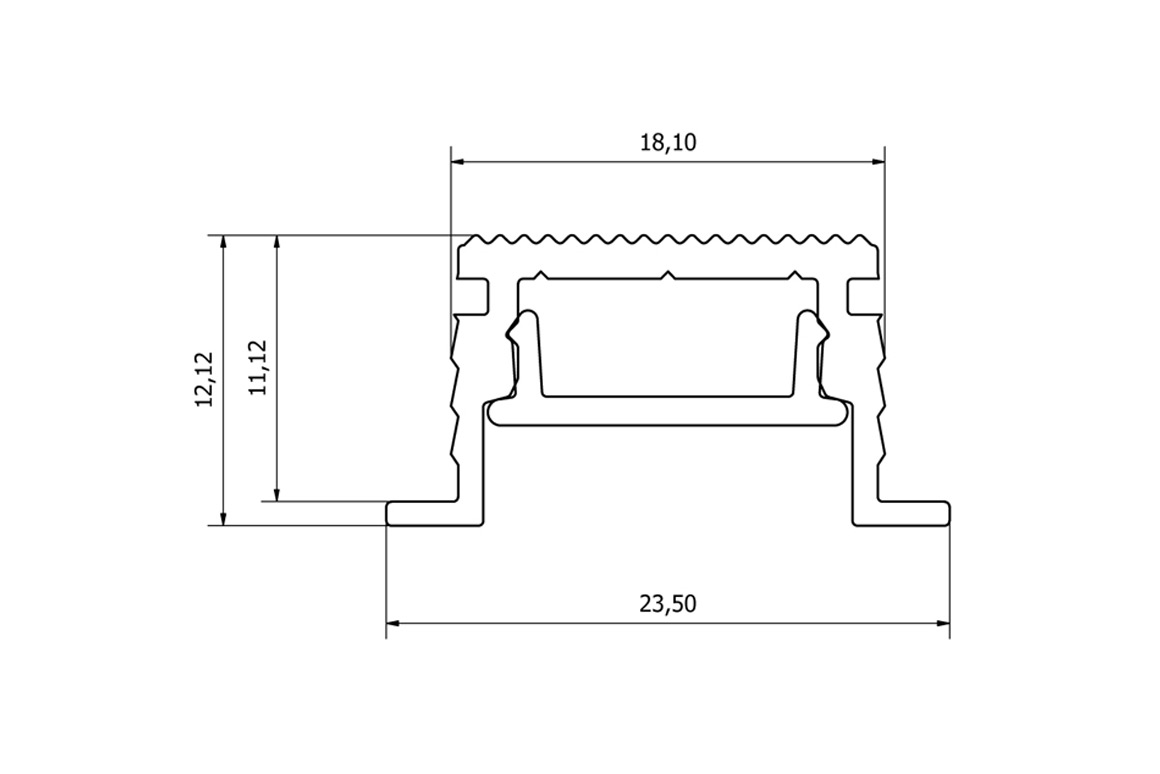

Tiny Tim 11 is a unique, low-profile joinery extrusion with a recessed diffuser which drastically reduces glare. At only 11mm deep, Tiny Tim 11 can be used in slim joinery carcasses. For “dot-free” lighting, our “Spec Series Slim” LED strip is the perfect accompaniment.

SKU: TNT11 Category:

Product Description

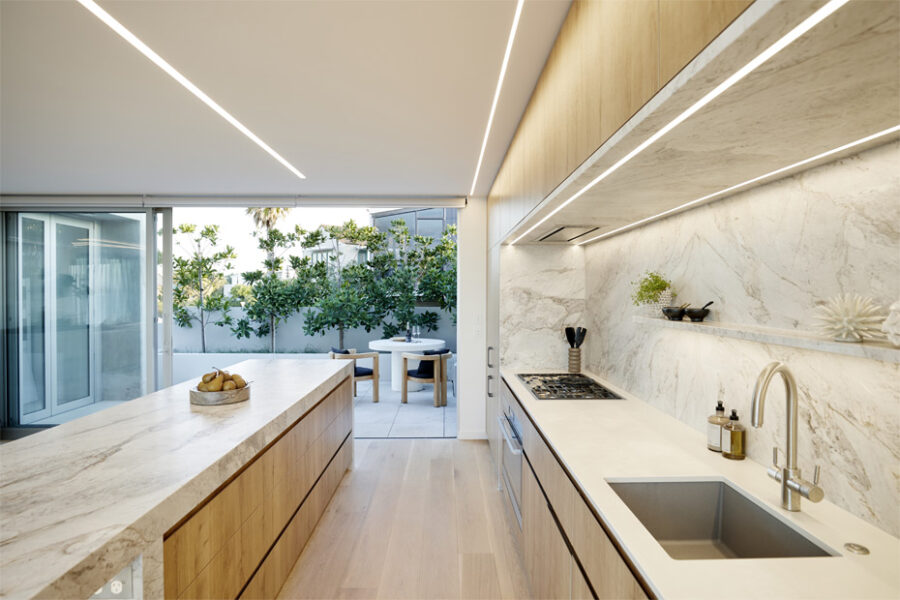

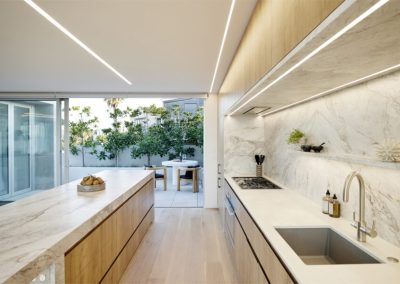

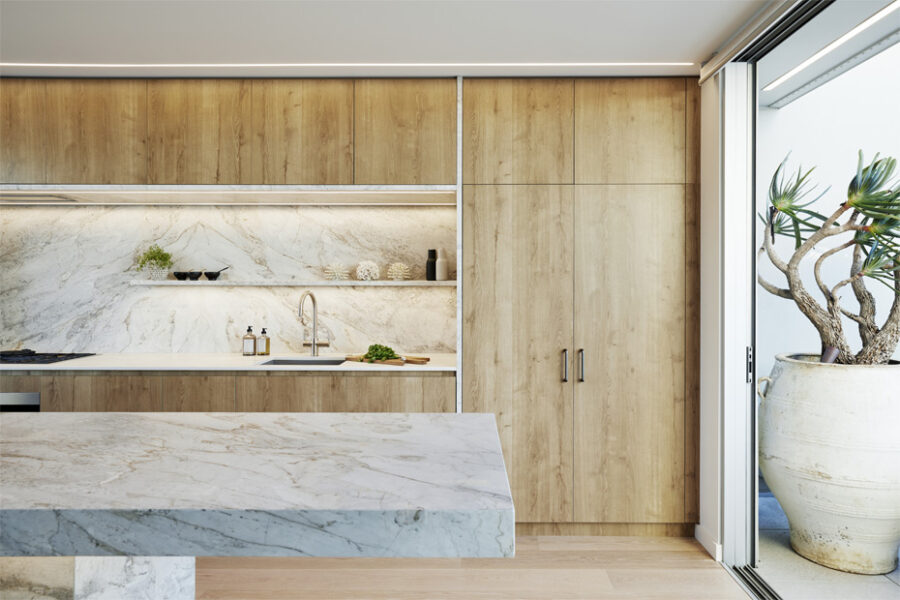

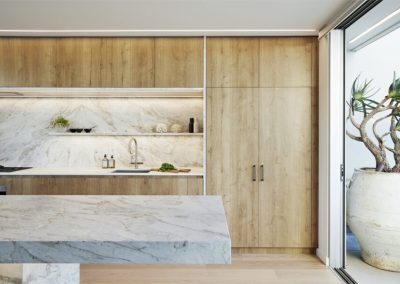

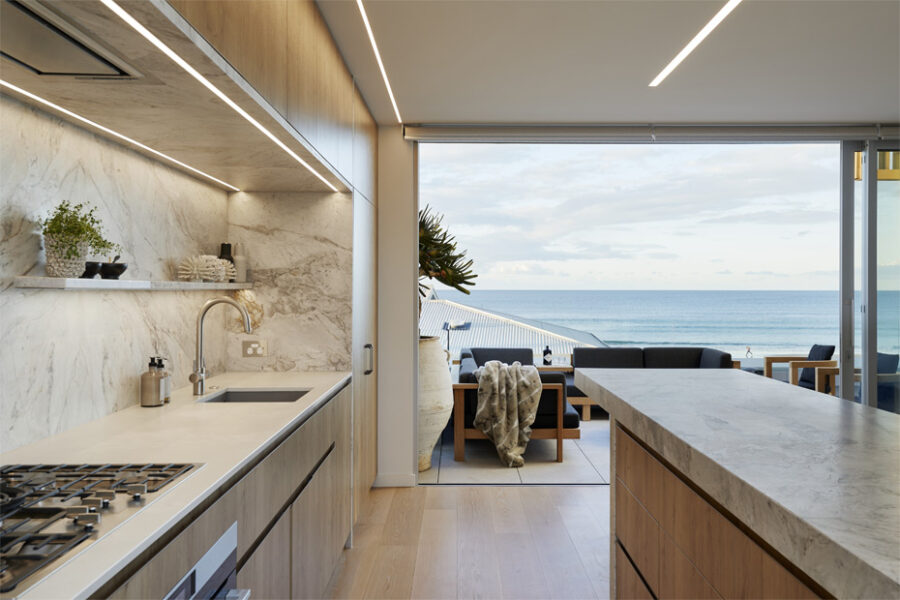

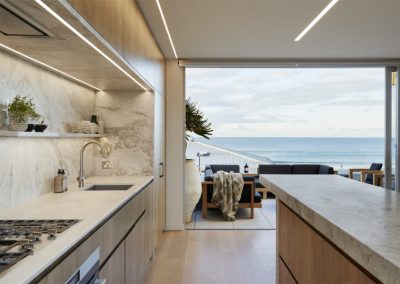

Task lighting in kitchen cabinetry, lighting for shelving or display units.


Interior only.


Aluminium body, polycarbonate diffuser, AES plastic end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.


Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffusor options

Opal Polycarbonate, Clear Polycarbonate

led strip options
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
  • Provides heat sinking for high wattage LED strips.
  • Dust & grease protection.
mounting options
  • Recessed
finish options
  • Natural Silver Anodised
  • Textura White Powder Coat
  • Textura Black Powder Coat
  • Custom Powder Coat Colours
  • Product Information
    Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
  • Download
    Product Information Pack
    Click to view @ Dropbox.com
