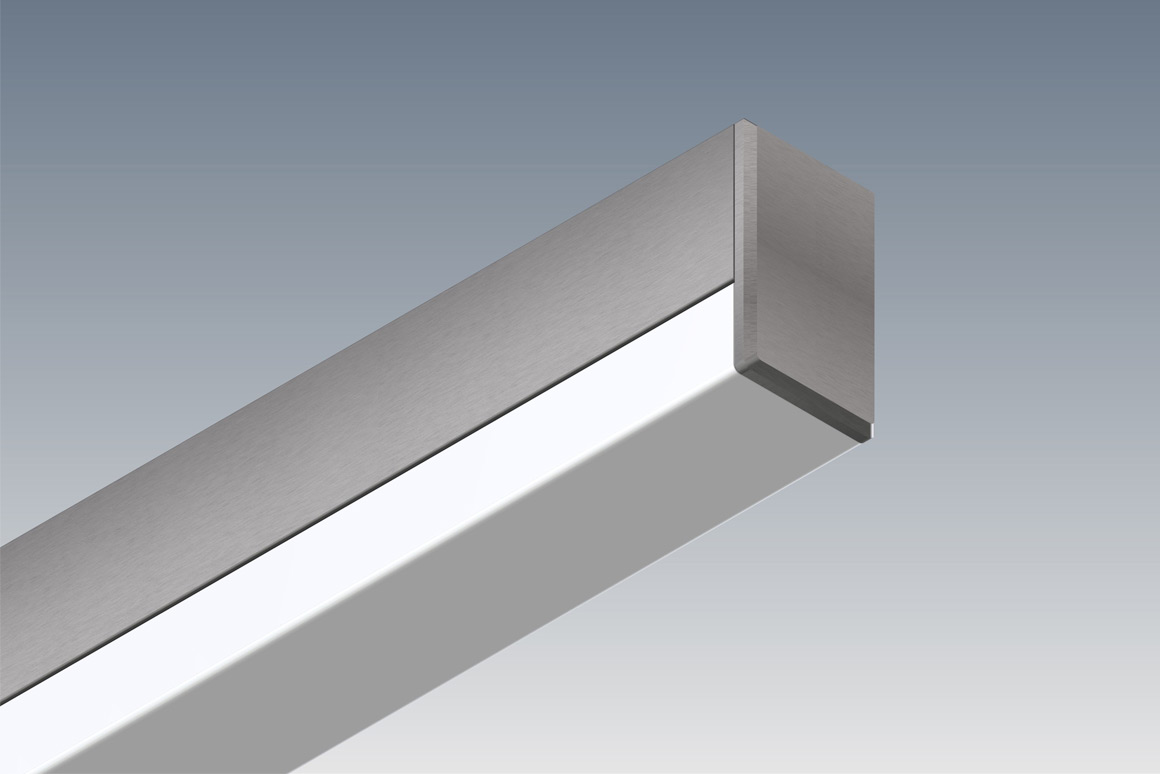

Sideways Sally 20R

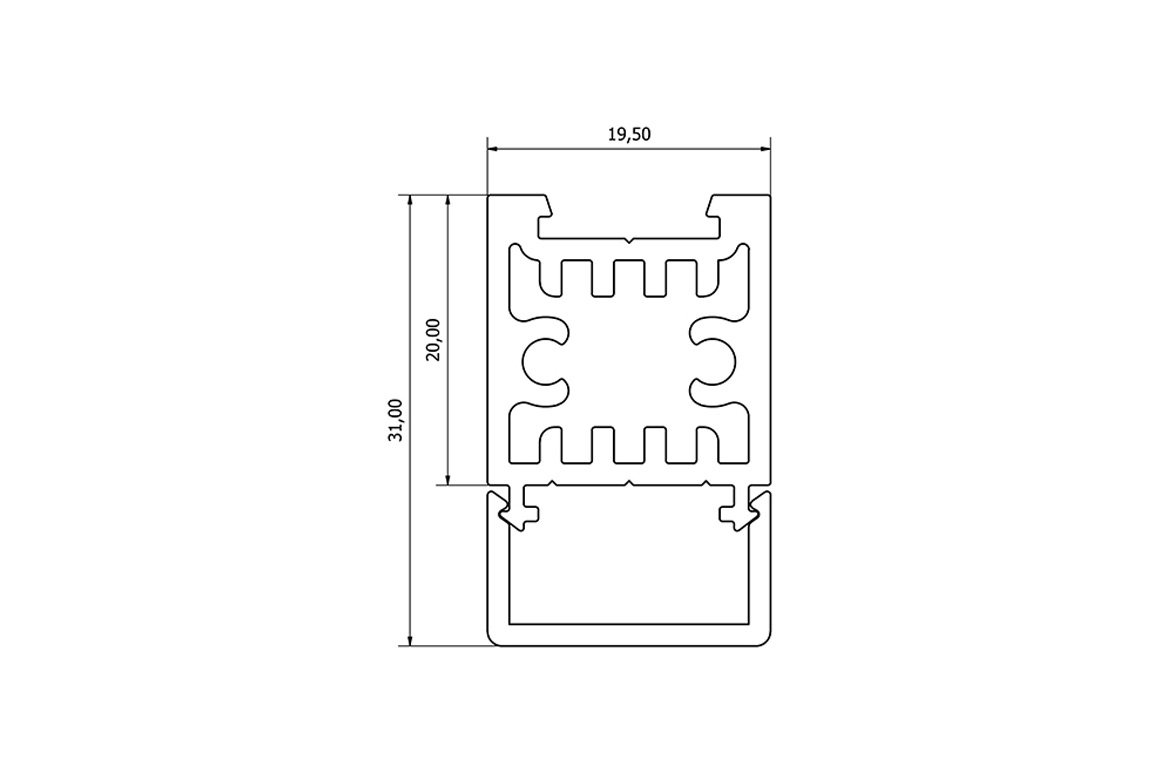

The Sideways Sally 20 profile is a compact uplight/downlight solution providing “dot-free” lighting. A versatile system suitable for various mounting options, Sideways Sally 20can be surface mounted, wall mounted and suspended. Both wire and rod suspension options are available for the Sideways Sally 20 profile.

SKU: SS20R Categories: , , ,
Share

Product Description

Application

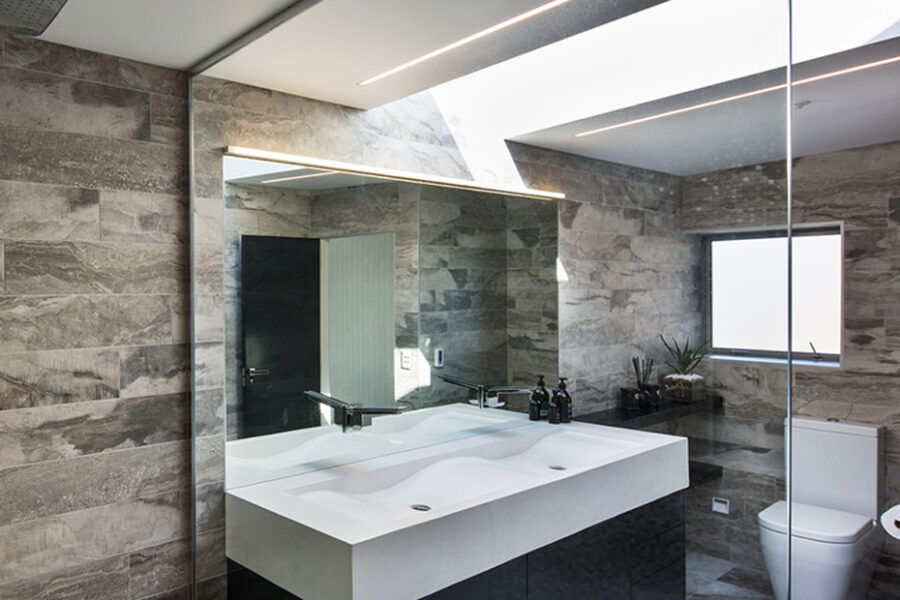

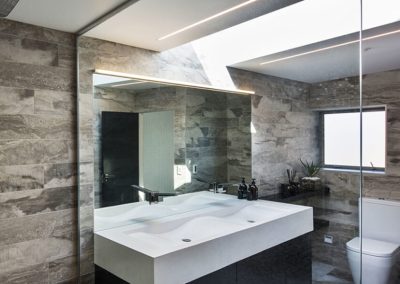

Task lighting over kitchen islands or reception counters, mirror lighting.

Installation

Interior and exterior (with IP65 or IP67 rated LED strip).

Material

Aluminium body, PMMA diffuser, aluminium end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Satin PMMA

led strip options
features
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
  • Provides heat sinking for high wattage LED strips.
  • Wrap-around diffuser for wide distribution of light.
  • Dust and grease protection.

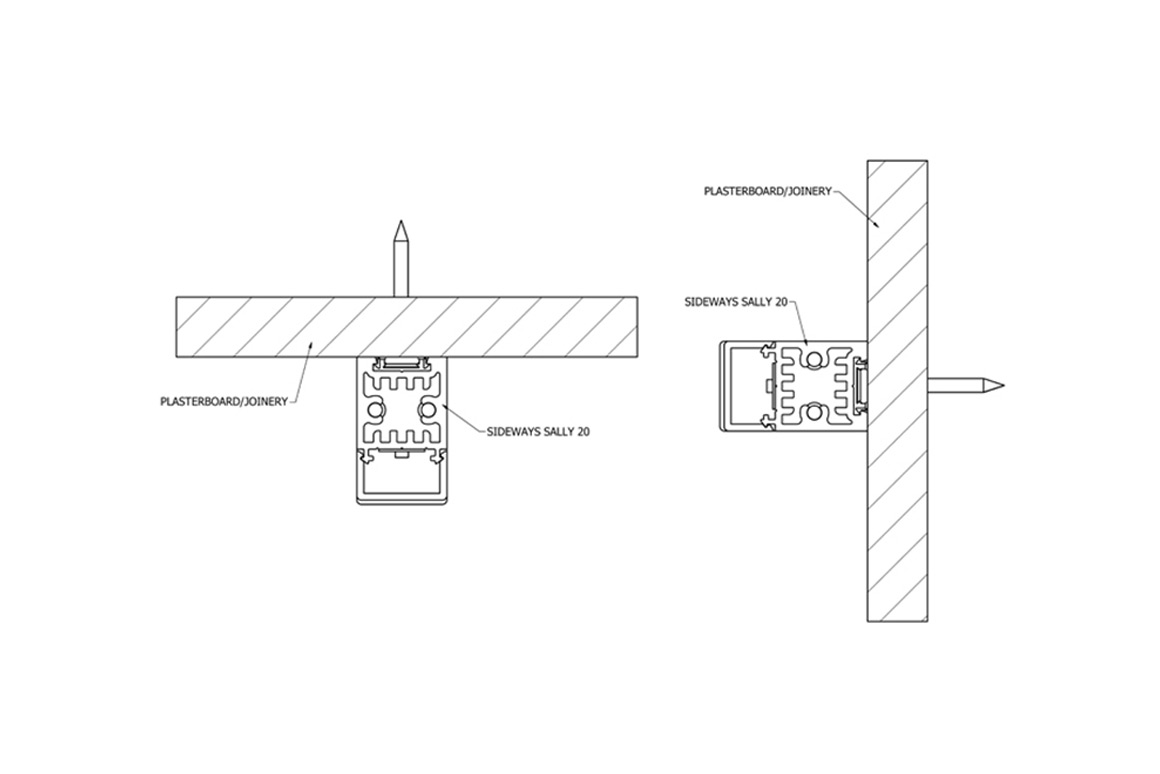

mounting options
  • Surface Mounted
  • Suspended
  • Wall Mounted
finish options
  • Natural Silver Anodised
  • Textura White Powder Coat
  • Textura Black Powder Coat
  • Custom Powder Coat Colours
  • Product Information
    Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
  • Download
    Product Information Pack
    Click to view @ Dropbox.com

Joining & Mounting Accessories

Joinery Mounting Clip

JMC-12

Straight Joiner

JN-ST-12

90 Degree Joiner

JN-90-12

135 Degree Joiner

JN-135-12

120 Degree Joiner

JN-120-12

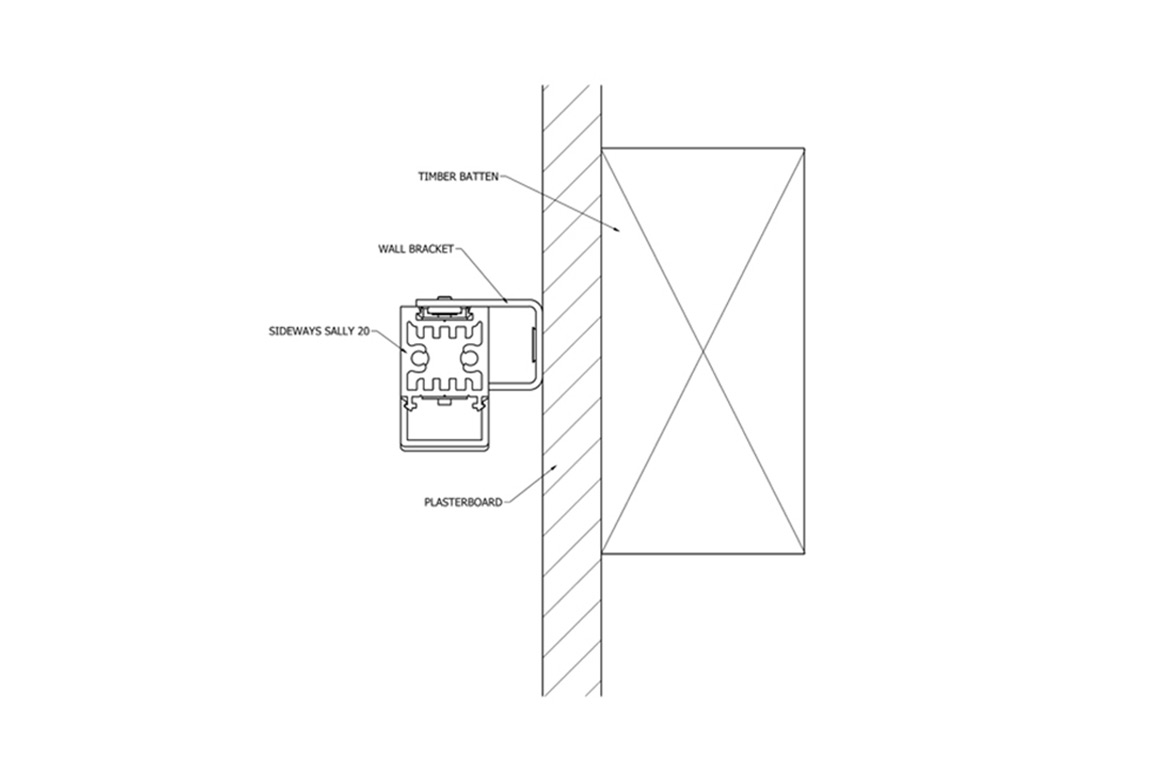

Wall bracket
Wall Bracket

WB-SS20

Suspension rod
Suspension Rod – 0.5m, 1m, 2m

ROD-0.5M / ROD-1M / ROD-2M

Surface mounted rod suspension kit
Surface Mounted Rod Suspension Kit (Rod Not Incl.)

SRK-6-S (SILVER) / SRK-6-W (WHITE) / SRK-6-B (BLACK)

Recessed rod suspension kit
Recessed Rod Suspension Kit (Rod Not Incl.)

SRK-1-S (SILVER) / SRK-1-W (WHITE) / SRK-1-B (BLACK)

Cable Base 60, Recessed

CB-60-R-S (SILVER) / CB-60-R-W (WHITE)

Cable Base 80, Surface Mount

CB-80-SM-S (SILVER) / CB-80-SM-W (WHITE)

Wire suspension
Wire Suspension – 1M, 2M, 4M

SWK-1-1M / SWK-1-2M / SWK-1-4M

You may also like…

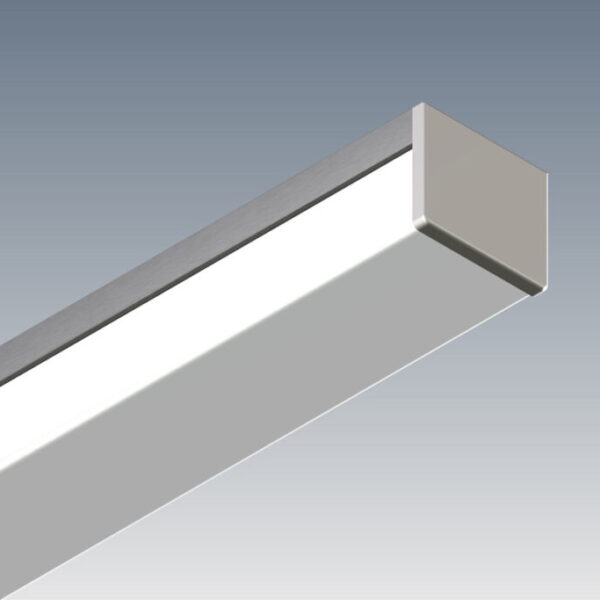

  • Sideways Sally 5R

    Sideways Sally 5 has many uses as a surface mounted profile solution, whether it is used as a slim-line mirror light in a bathroom, discrete task lighting under a shelf or tucked into a pelmet. With diffuser options of both curved and rectangular, this profile is sure to be a great addition to any specifier’s tool kit.

  • Sideways Sally 20C

    The Sideways Sally 20 profile is a compact uplight/downlight solution providing “dot-free” lighting. A versatile system suitable for various mounting options, Sideways Sally 20can be surface mounted, wall mounted and suspended. Both wire and rod suspension options are available for the Sideways Sally 20 profile.

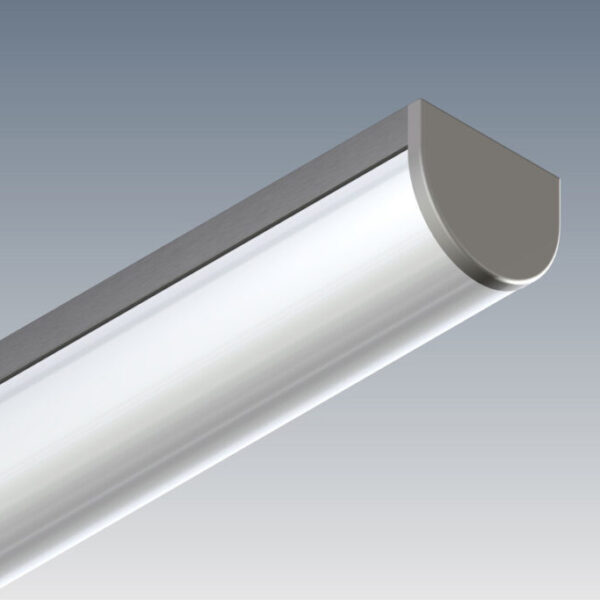

  • Sideways Sally 5C
