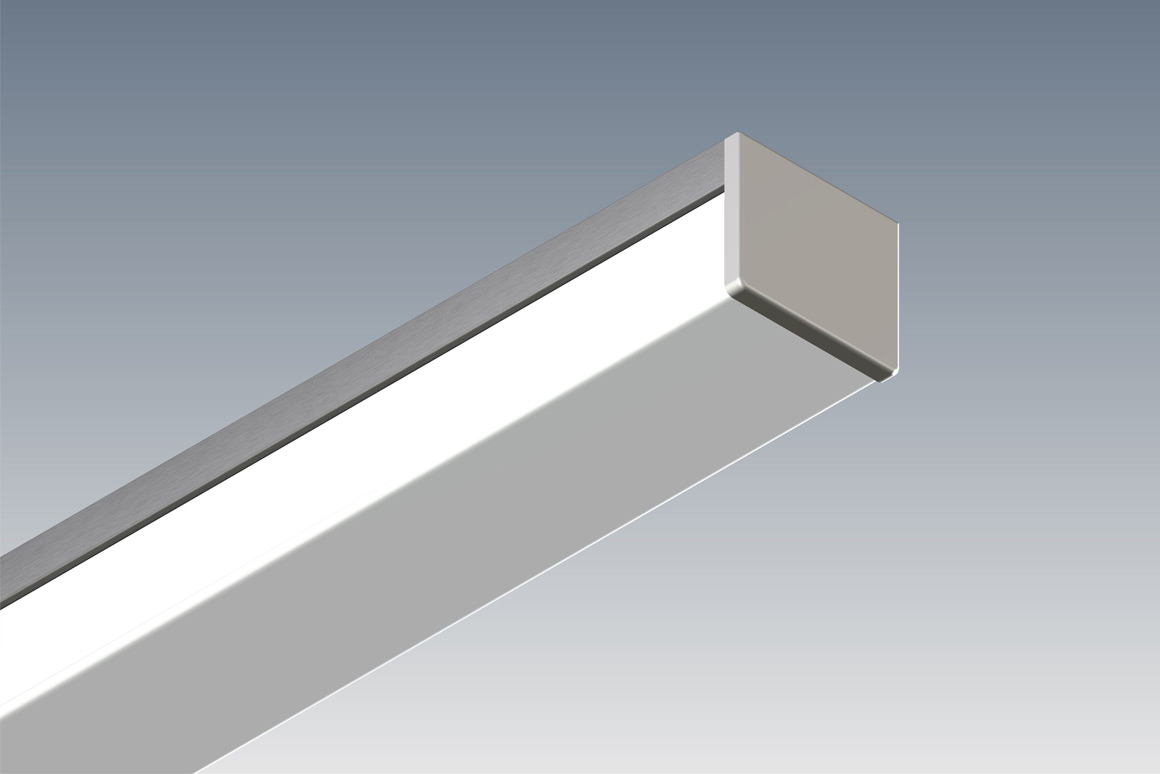

Sideways Sally 5R

Sideways Sally 5 has many uses as a surface mounted profile solution, whether it is used as a slim-line mirror light in a bathroom, discrete task lighting under a shelf or tucked into a pelmet. With diffuser options of both curved and rectangular, this profile is sure to be a great addition to any specifier’s tool kit.

SKU: SS5R Category:

Description

Application

Mirror lighting, kitchen joinery, display shelving.

Installation

Interior and exterior (with IP65 or IP67 rated LED strip).

Material

Aluminium body, PMMA diffuser, AES plastic end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Satin PMMA

led strip options
features
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
  • Provides heat sinking for high wattage LED strips.
  • Wrap-around diffuser for wide distribution of light.
  • Dust and grease protection.
mounting options
  • Surface Mounted
finish options
  • Natural Silver Anodised
  • Mannex Appliance White Powder Coat
  • Mannex Black Powder Coat
  • Custom Powder Coat Colours
  • Product Information
    Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
  • Download
    Product Information Pack
    Click to view @ Dropbox.com

Joining & Mounting Accessories

Joinery Mounting Clip

JMC-12

Straight Joiner

Straight Joiner

JN-ST

90 Degree Joiner

JN-90

Adjustable mounting bracket
Adjustable Mounting Bracket

MB-ADJ
