Richie Rail 20

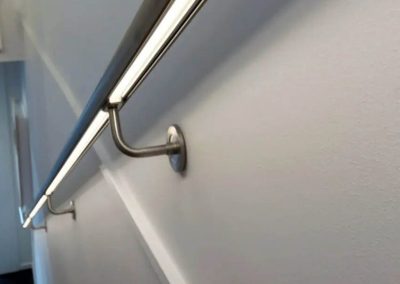

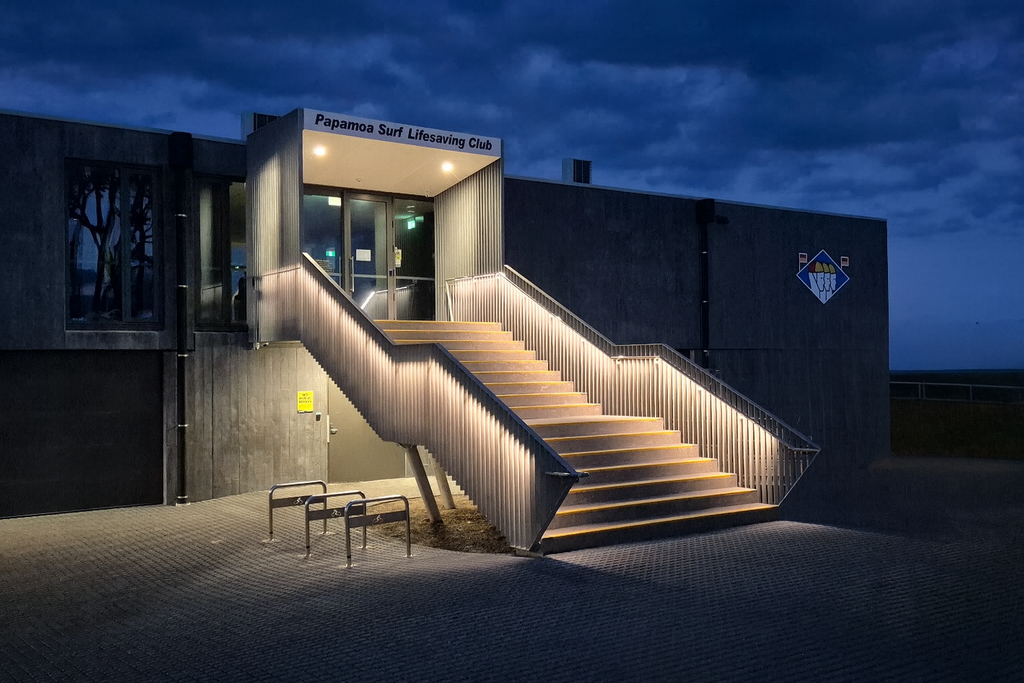

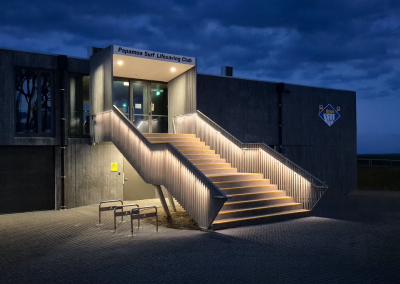

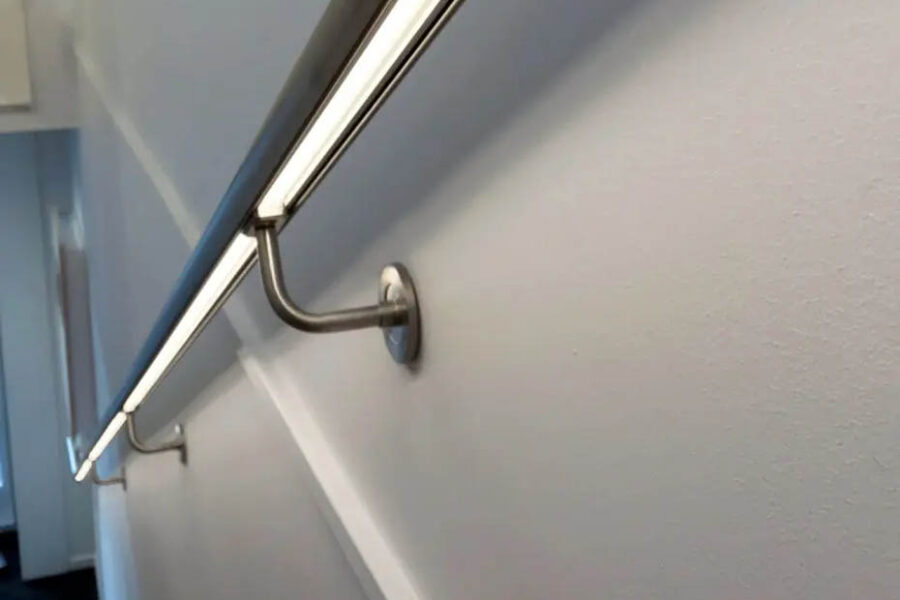

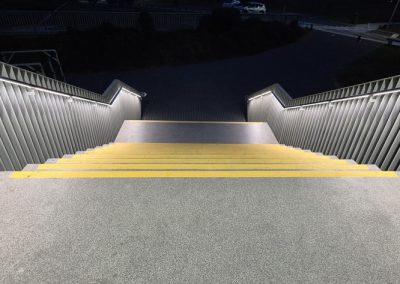

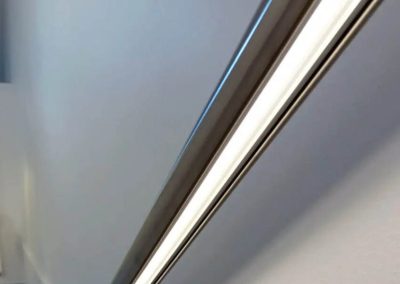

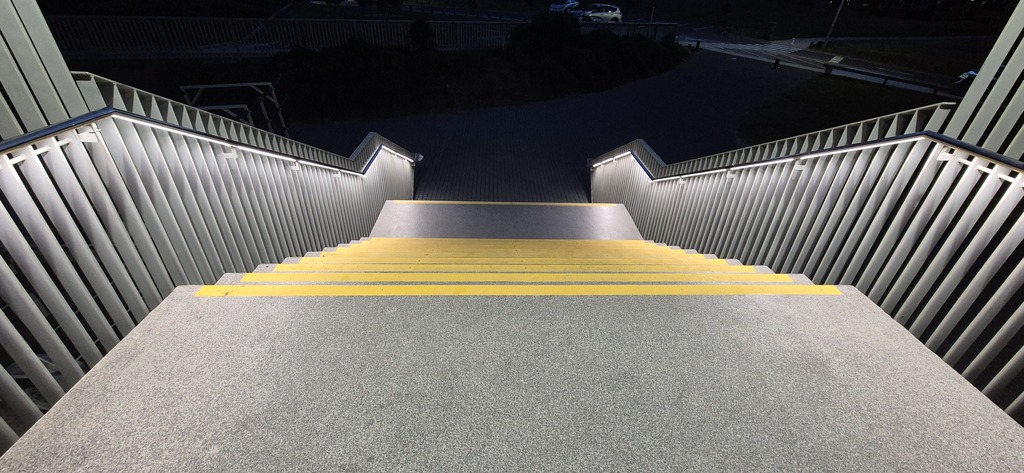

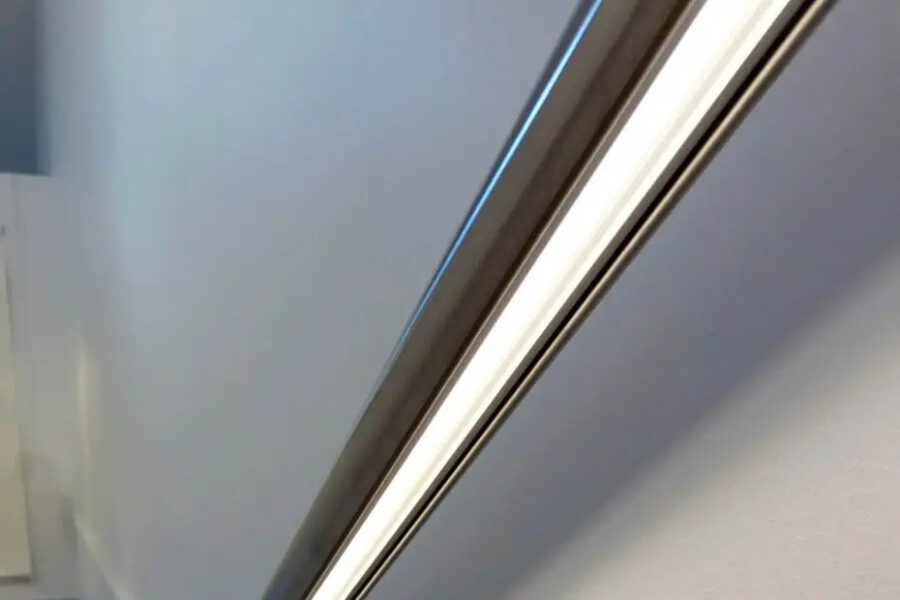

Richie Rail 20 is a unique illuminated handrail system with a diameter of 42.4mm. Hollow wall brackets conceal the power supply to the LED strip, and the low voltage input makes the handrail safe to touch. The innovative sliding wall brackets allow minimal power feeds to the LED strip for simple installation. Richie Rail 20 is suitable for use on residential and commercial stairs and thoroughfares including accessible routes and exterior urban spaces. Richie Rail 20 can be supplied as a “plug-and-play” modular system, or as a seamless, fully welded system.

SKU: RR20 Category:
Share

Product Description

Application

Stairs and ramps for commercial, residential and public spaces, accessible routes.

Installation

Interior and exterior (with IP65 or IP67 rated LED strip).

Material

316 stainless steel rail and components (including wall brackets, post tops etc), marine-grade extruded aluminium, polycarbonate diffuser.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Opal polycarbonate

led strip options
features
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Hollow wall brackets that conceal power cable and don’t interrupt the LED strip or diffuser.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
mounting options
  • Wall Mounted
  • Glass Mounted
  • Post Top
finish options
  • Satin 316 stainless steel
  • Polished 316 stainless steel
  • Product Information
    Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
  • Download
    Product Information Pack
    Click to view @ Dropbox.com

Joining & Mounting Accessories

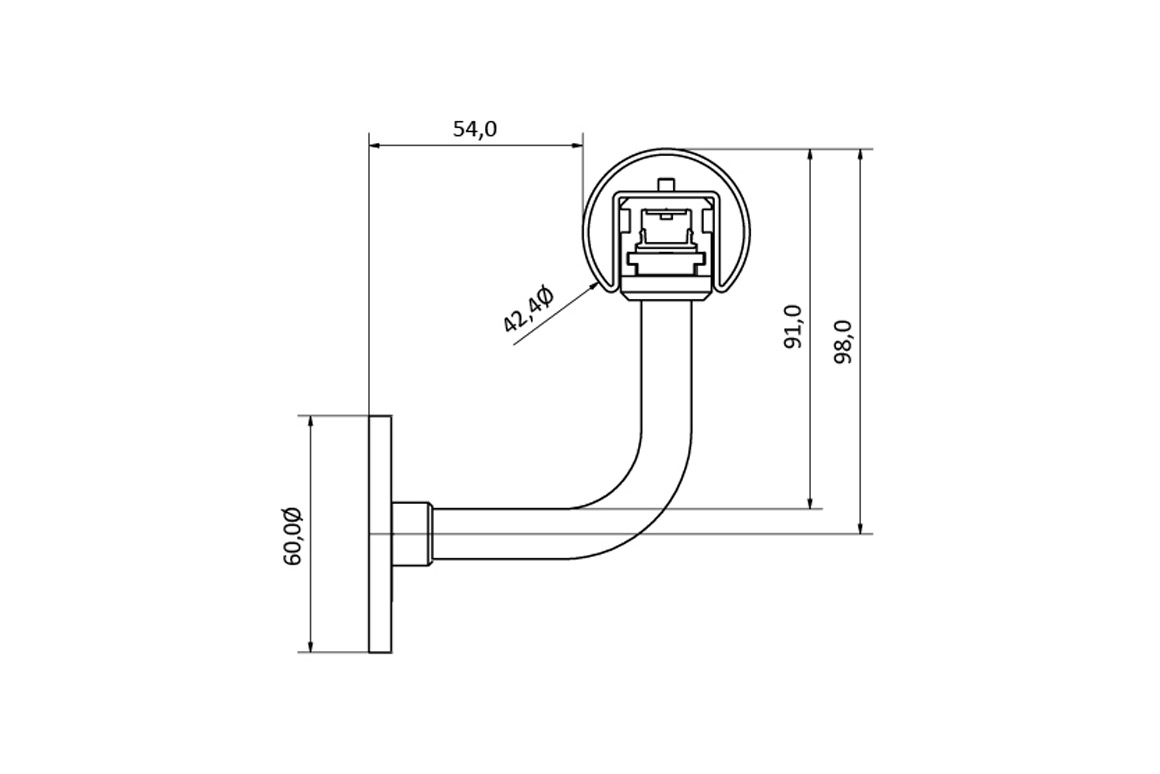

Wall bracket
Wall Bracket

WBRR-SS (Satin finish) / WBRR-SS-POL (Polished finish)

Post top bracket
Post Top Bracket

PTBRR-SS (Satin finish) / PTBRR-SS-POL (Polished finish)

Glass Mount Bracket

GMBRR-SS (Satin finish)

Straight joiner
Straight Joiner

JN-ST-RR20-SS (Satin finish) / JN-ST-RR20-SS-POL (Polished finish)

90 Degree Joiner

JN-90-RR20-SS / JN-90-RR20-SS-POL (Polished finish)

Variable angle joiner - down
Variable Angle Joiner, Down

JN-VD-RR20-SS (Satin finish) / JN-VD-RR20-SS-POL (Polished finish)

Variable angle joiner - up
Variable Angle Joiner, Up

JN-VU-RR20-SS (Satin finish) / JN-VU-RR20-SS-POL (Polished finish)

Joiner tube
Joiner Tube

JN-TUBE-RR20-SS (Satin finish) / JN-TUBE-RR20-SS-POL (Polished finish)

Blank Tube End Cap, For Welded Systems Only

EC-TUBE-RR20-SS (Satin finish) / EC-TUBE-RR20-SS-POL (Polished finish)

90 Degree Bend, For Welded Systems only

JN-90-RR20-W-SS (Satin finish)

180 Degree Bend, For Welded Systems only

JN-180-RR20-W-SS (Satin finish)

Handrail Accessories

Handrail, 316 Stainless Steel

HR-RR20-SS (Satin finish) / HR-RR20-SS-POL (Polished finish)

Handrail End Cap

EC-RR20-SS (Satin finish) / EC-RR20-SS-POL (Polished finish)

Extrusion and Diffuser

EX-RR20-MSA + DF-FLAT-OP
