Richie Rail 17

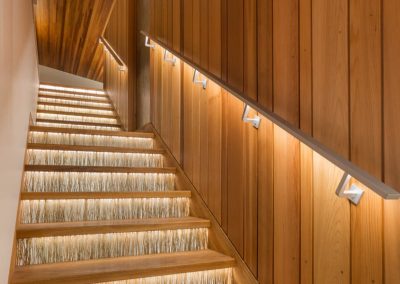

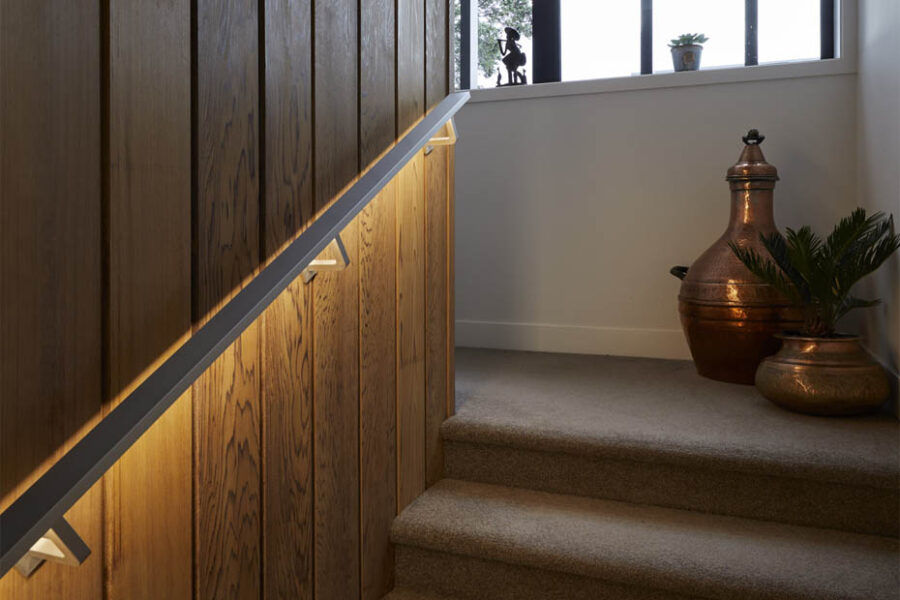

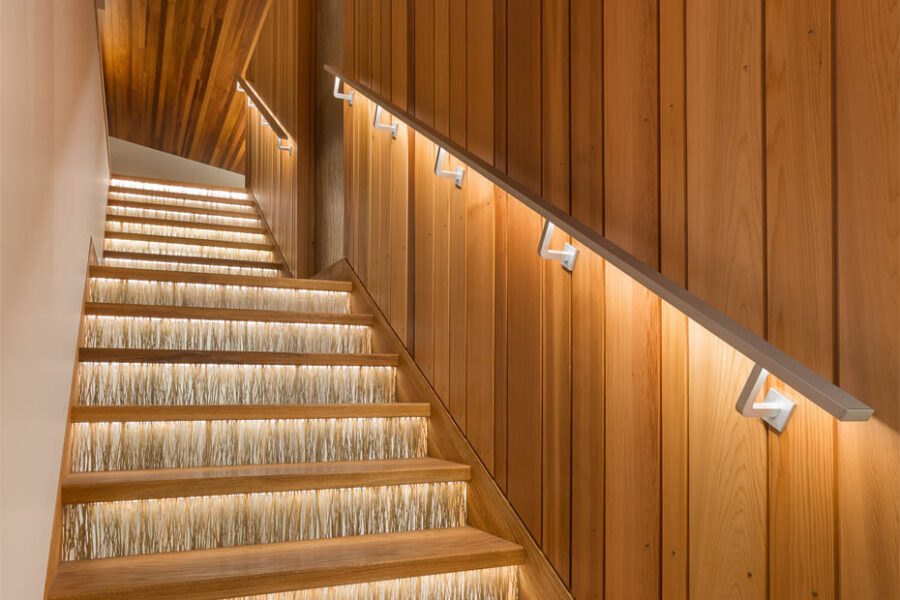

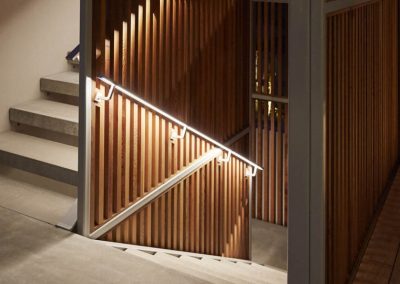

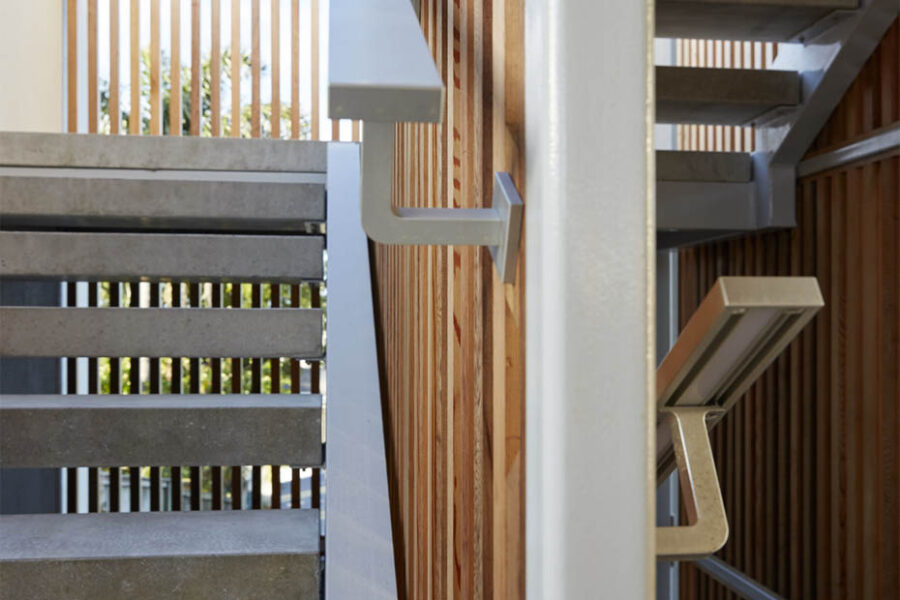

Richie Rail 17 is a unique illuminated handrail system. CNC machined wall brackets provide a beautiful finish and make for quick installation. Hollow wall brackets conceal the power supply to the LED strip, and the low voltage input makes the handrail safe to touch. Richie Rail 17 is suitable for use on residential and commercial stairs and thoroughfares.

SKU: RR17 Category:
Share

Product Description

Application

Residential or commercial stairs, lift cars, accessways.

Installation

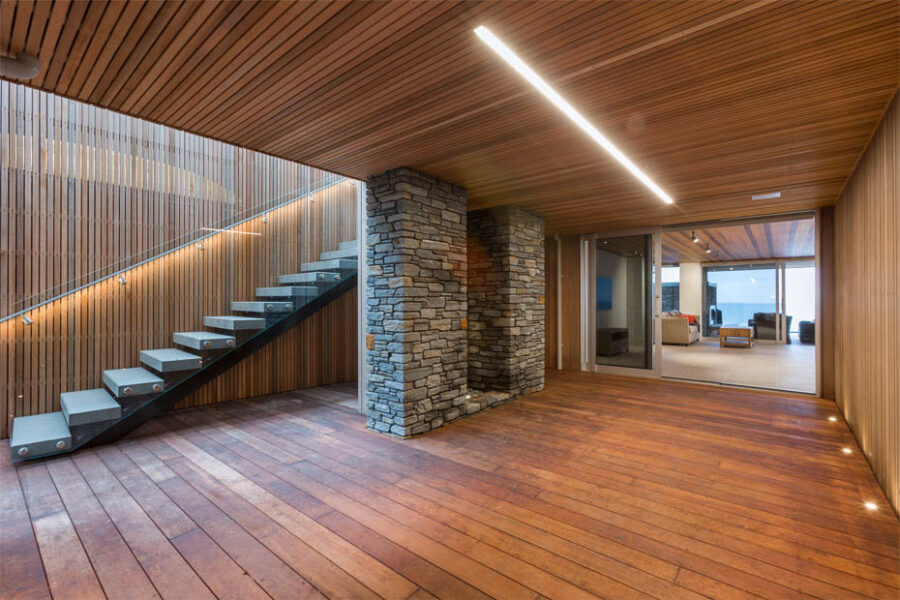

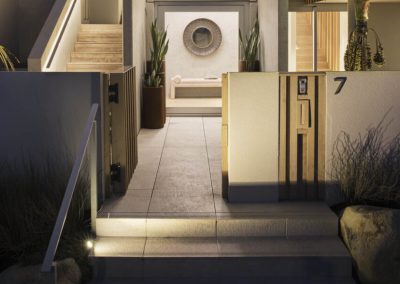

Interior and exterior (with IP65 or IP67 rated LED strip).

Material

Aluminium body & components, polycarbonate diffuser.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Opal polycarbonate, Clear polycarbonate

led strip options
features
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
  • Provides heat sinking for high wattage LED strips.
  • Dust and grease protection.
mounting options
  • Wall Mounted
  • Glass Mounted
finish options
  • Natural Silver Anodised
  • Textura White Powder Coat
  • Textura Black Powder Coat
  • Custom Powder Coat Colours.
  • Product Information
    Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
  • Download
    Product Information Pack
    Click to view @ Dropbox.com

Joining & Mounting Accessories

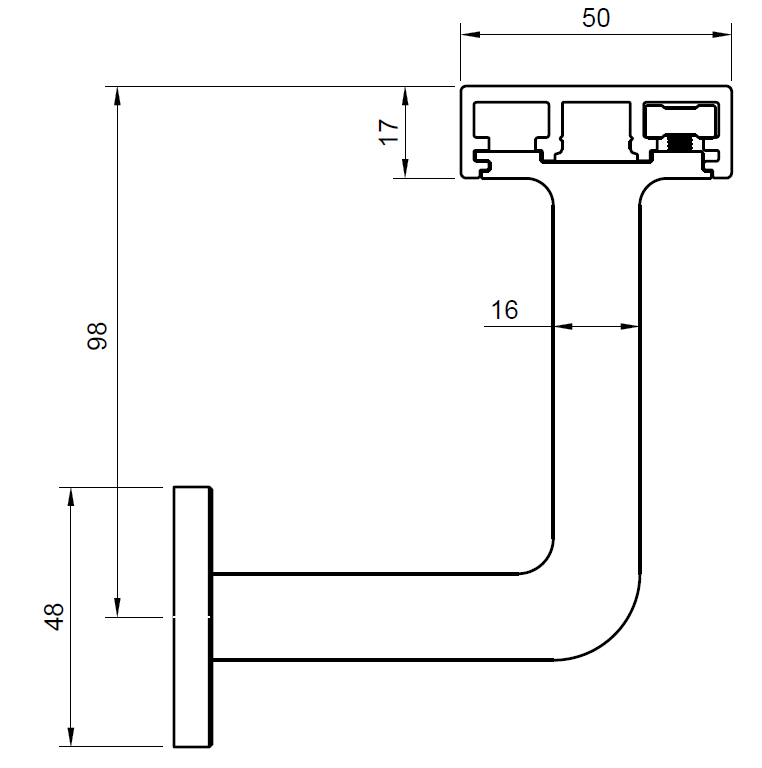

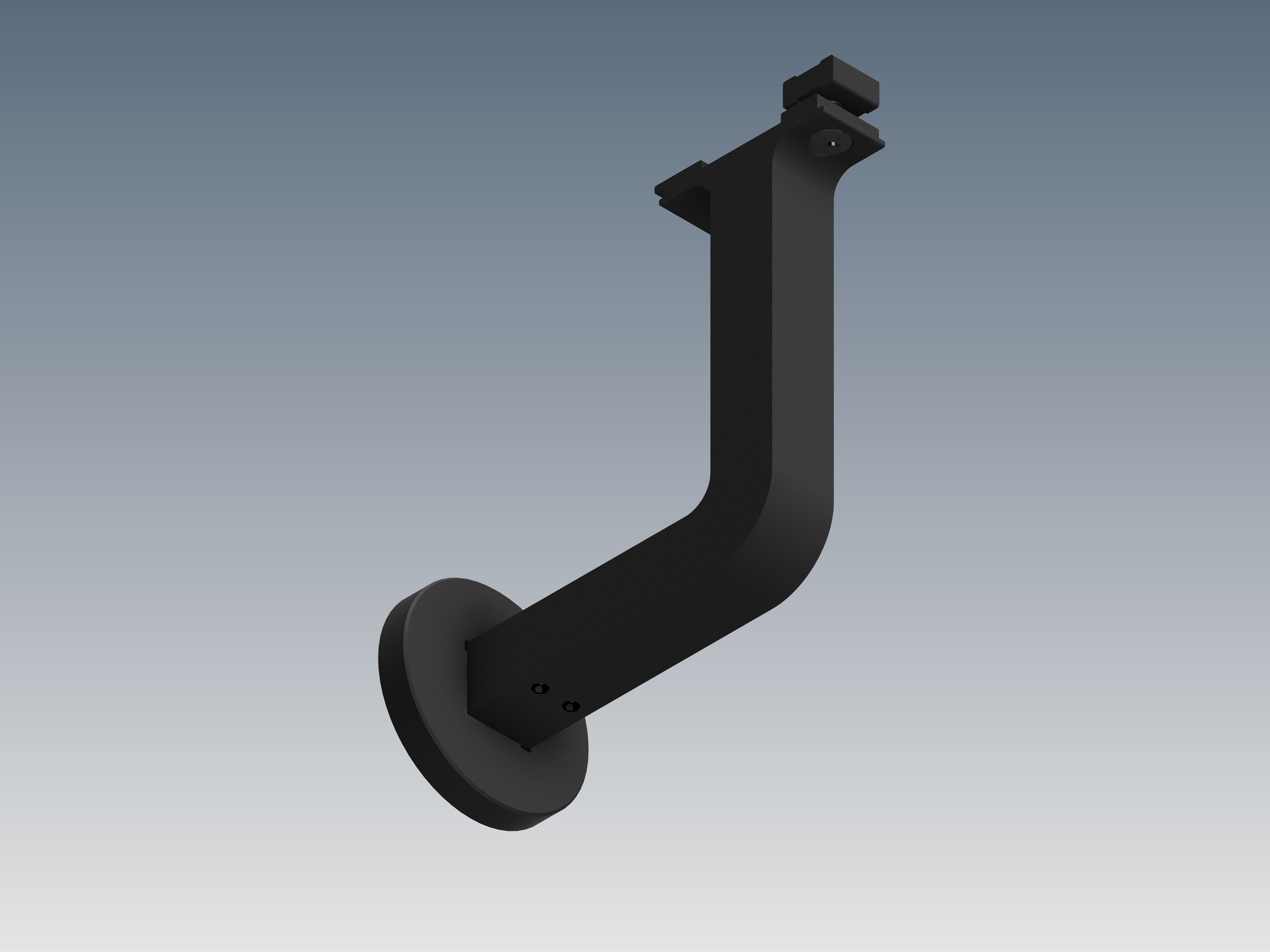

Wall bracket with round cover
Wall Bracket with Round cover

WBRR17-R

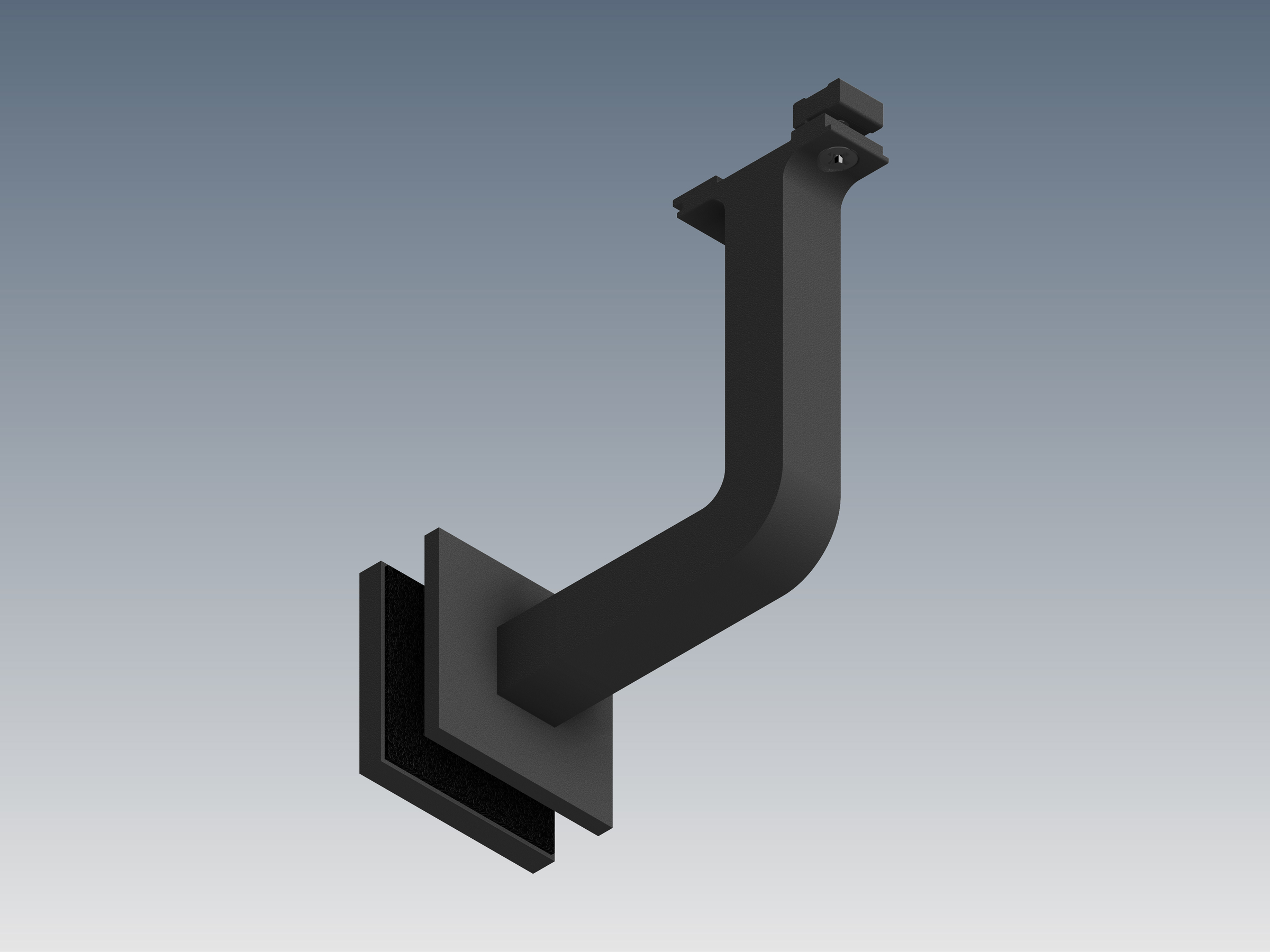

Glass Mount Bracket with Square cover

GMBRR17-S

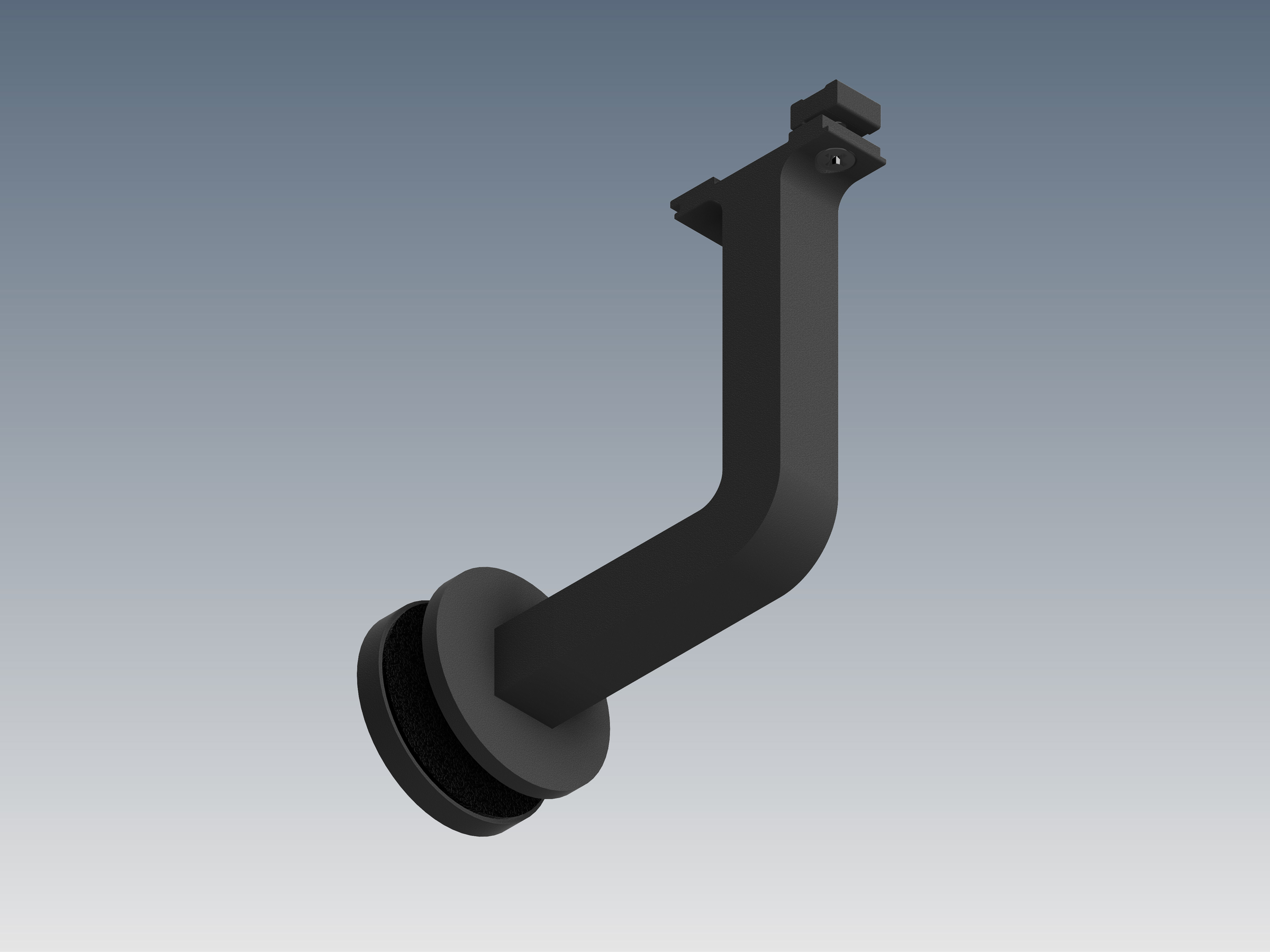

Glass Mount Bracket with Round cover

GMBRR17-R

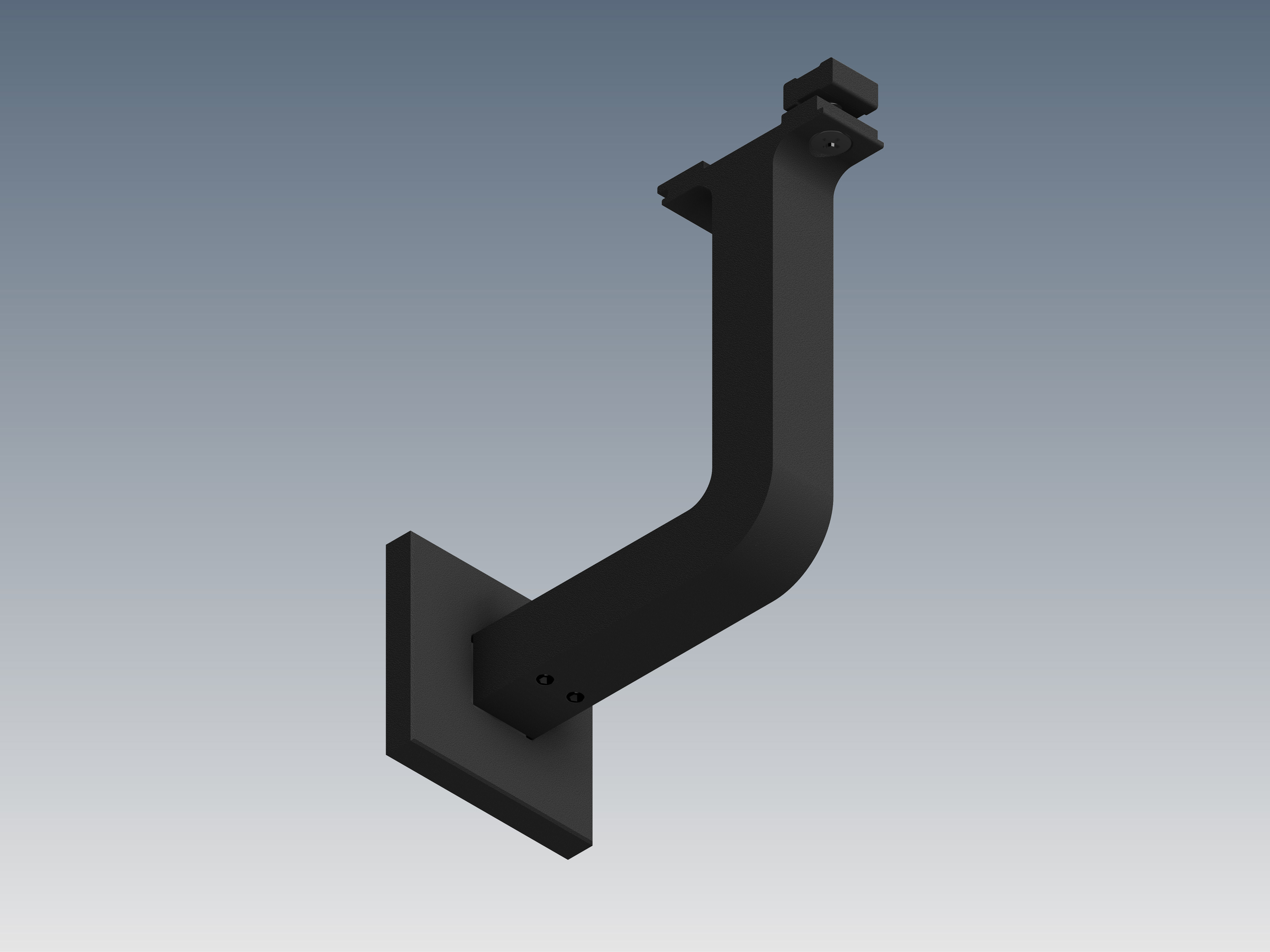

Wall bracket with square cover
Wall Bracket with Square cover

WBRR17-S

Wall bracket plasterboard spacer
Wall bracket plasterboard spacer, 10mm

WBPBS-13

Wall bracket plasterboard spacer
Wall bracket plasterboard spacer, 10mm

WBPBS-10

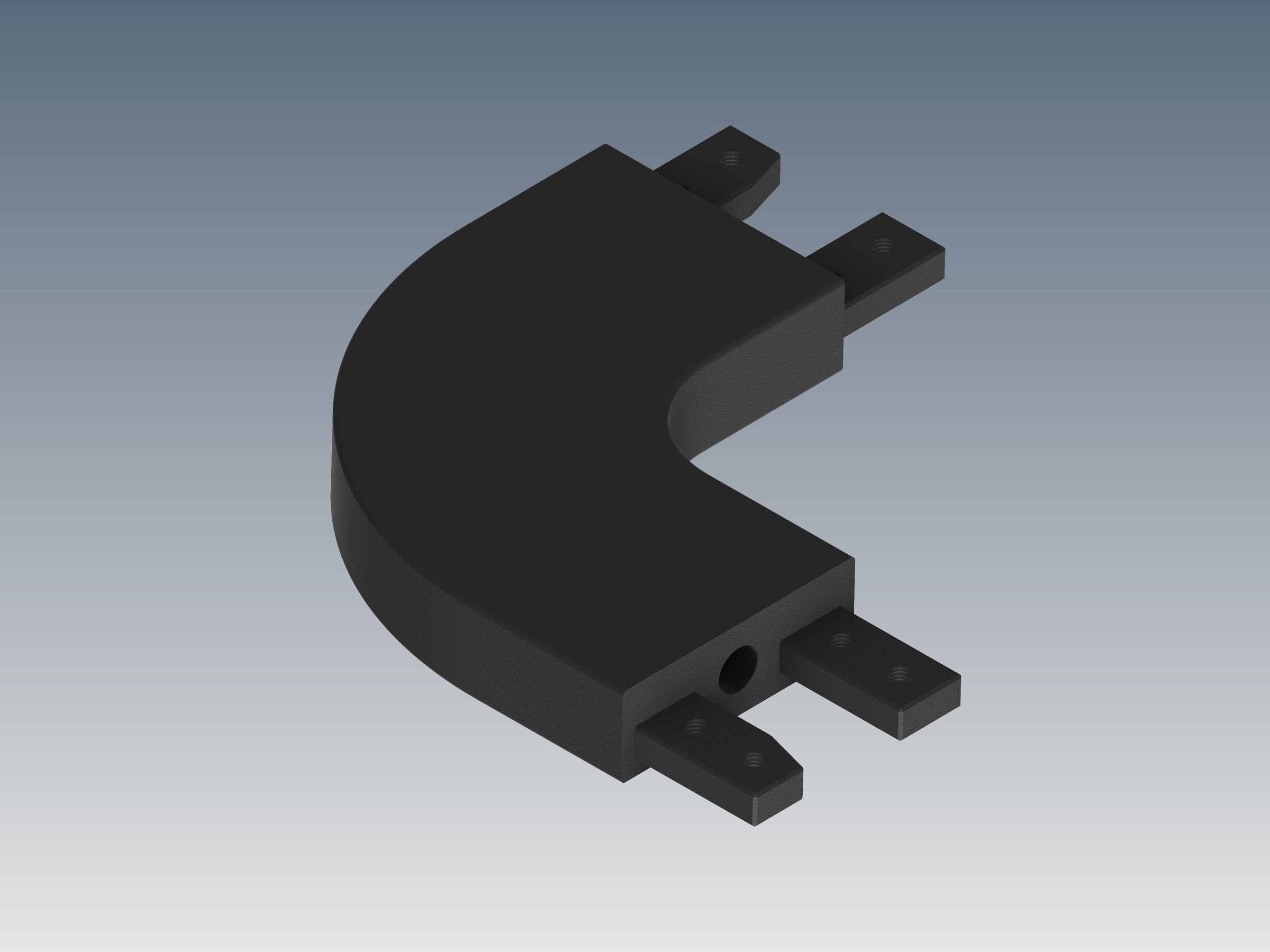

90 Degree Joiner

JN-90-RR17

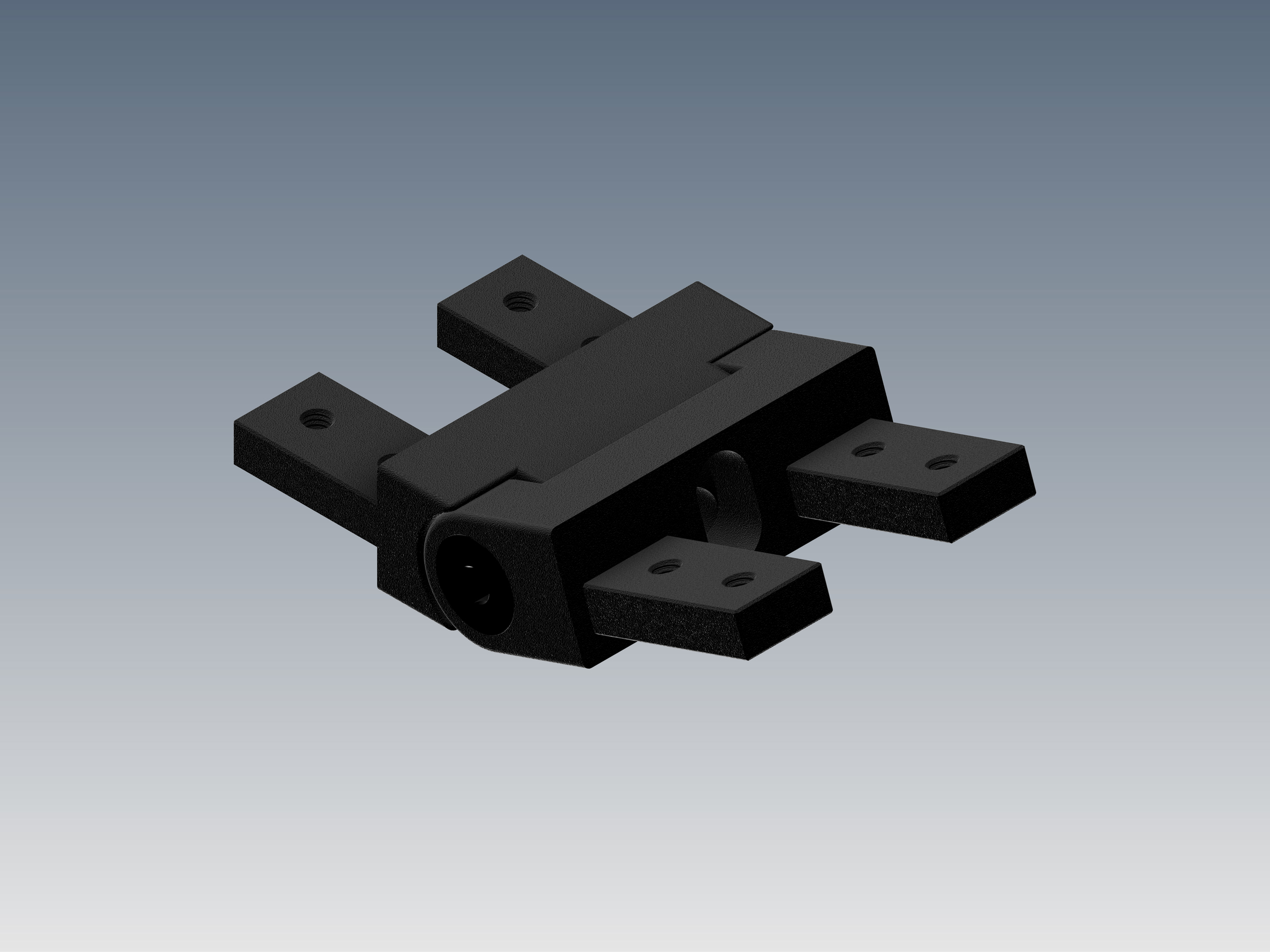

Variable Bend Joiner
Variable bend Joiner

JN-V-RR17

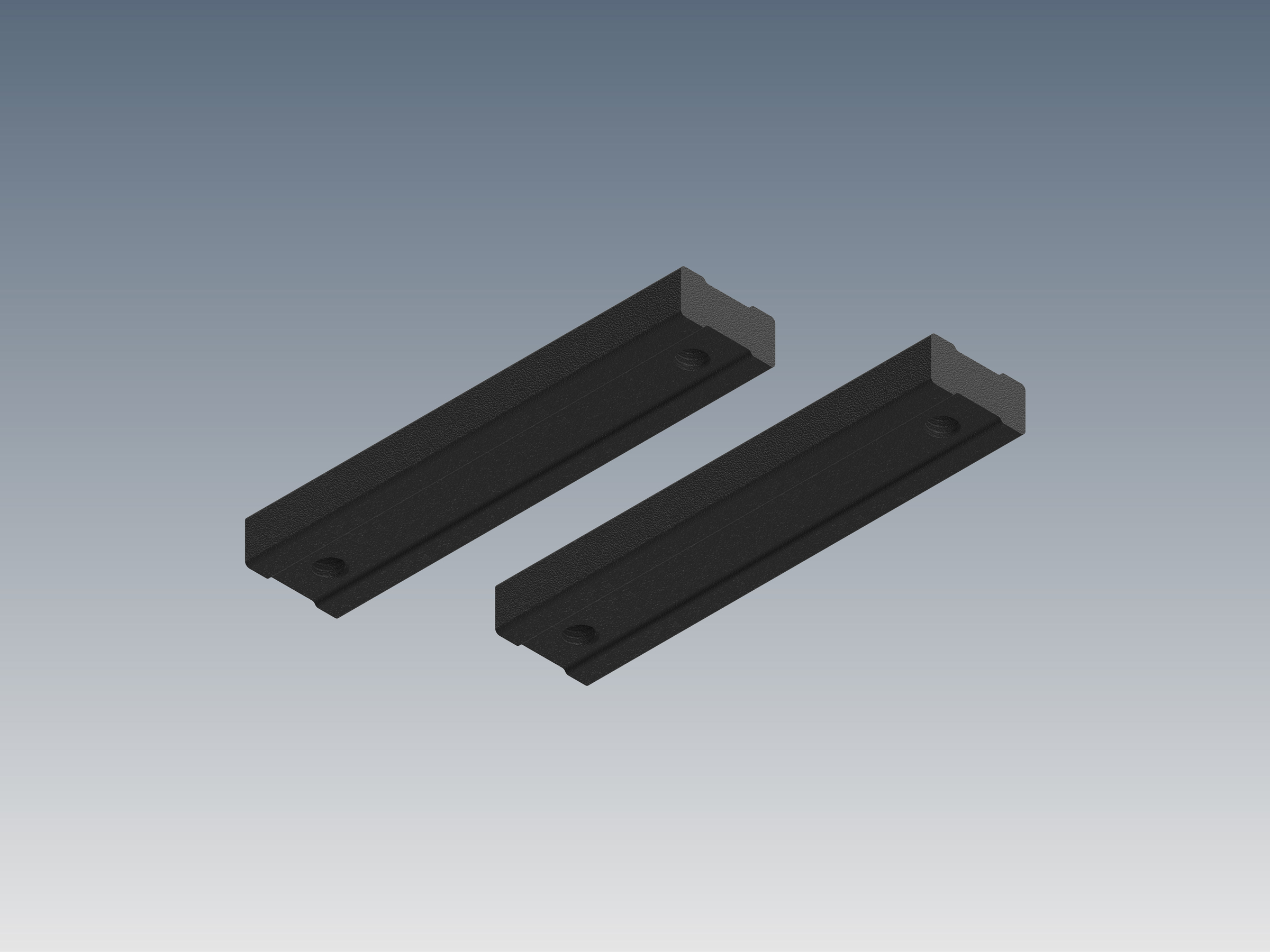

Pair straight joiners
Pair Straight Joiners

JN-ST-RR17

You may also like…

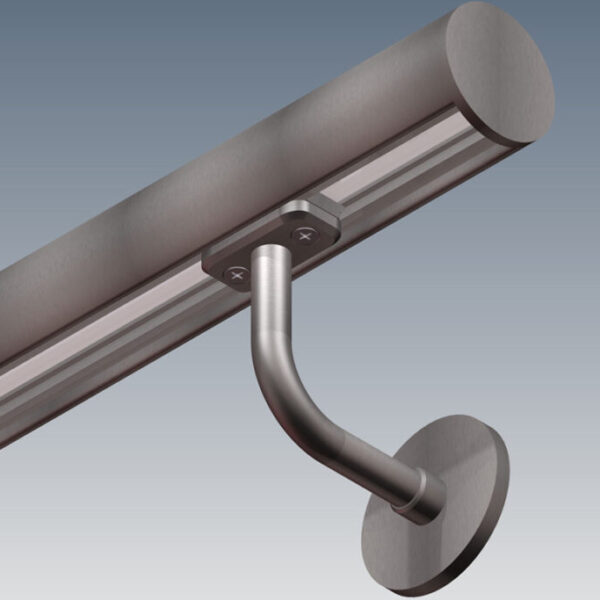

  • Richie Rail 26

    Richie Rail 26 is a unique illuminated handrail system with a diameter of 48.3mm. Hollow wall brackets conceal the power supply to the LED strip, and the low voltage input makes the handrail safe to touch. The innovative sliding wall brackets allow minimal power feeds to the LED strip for simple installation. Richie Rail 26 is suitable for use on residential and commercial stairs and thoroughfares including accessible routes and exterior urban spaces. Richie Rail 26 can be supplied as a “plug-and-play” modular system, or as a seamless, fully welded system.

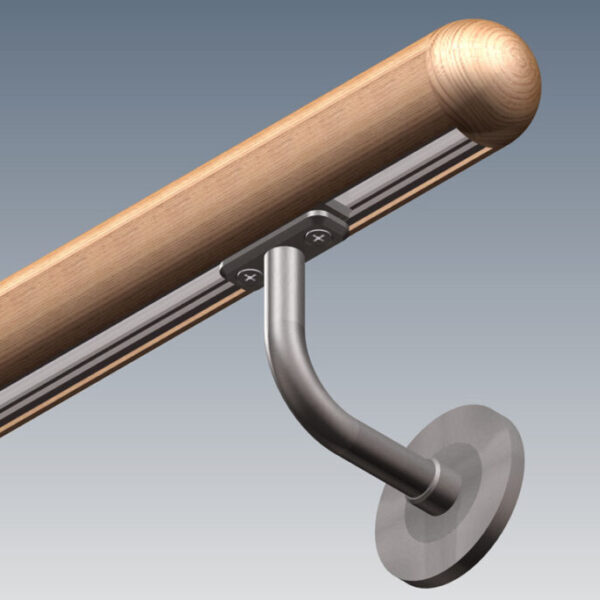

  • Richie Rail 18

    Richie Rail 18 is a unique illuminated handrail system. Hollow wall brackets conceal the power supply to the LED strip, and the low voltage input makes the handrail safe to touch. The innovative sliding wall brackets allow minimal power feeds to the LED strip for simple installation. Richie Rail 18 is suitable for use on residential and commercial stairs and thoroughfares including accessible routes and urban spaces. The profile is designed to be used with various timber profile and timber types.

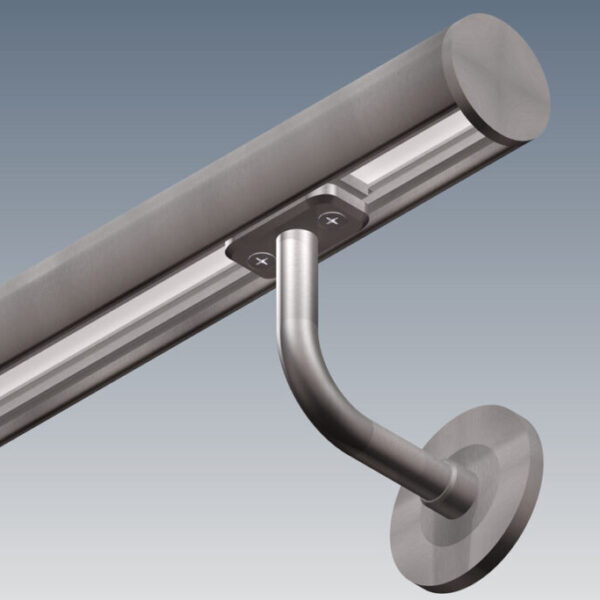

  • Richie Rail 20
