Richie Rail 18

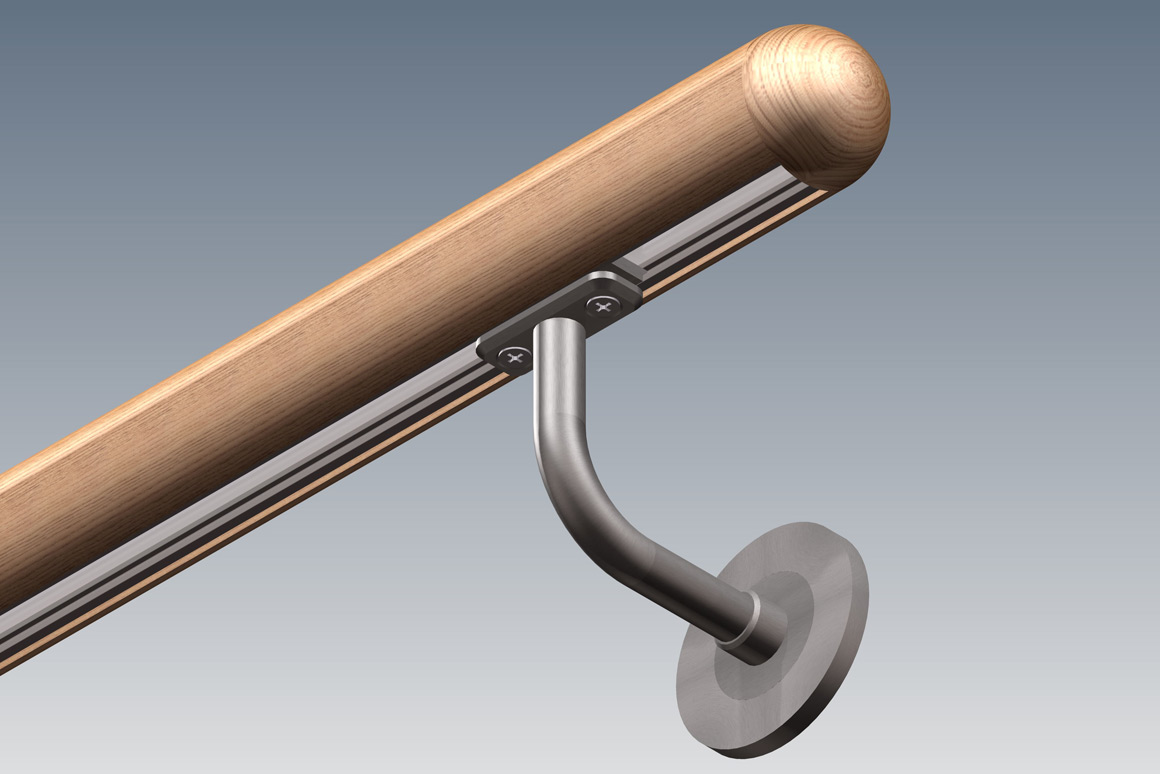

Richie Rail 18 is a unique illuminated handrail system. Hollow wall brackets conceal the power supply to the LED strip, and the low voltage input makes the handrail safe to touch. The innovative sliding wall brackets allow minimal power feeds to the LED strip for simple installation. Richie Rail 18 is suitable for use on residential and commercial stairs and thoroughfares including accessible routes and urban spaces. The profile is designed to be used with various timber profile and timber types.

SKU: RR18 Category: Handrail

Product Description

Application

Stairs and ramps for commercial, residential and public spaces, accessible routes.

Installation

Interior only

Material

Timber of your choice, 316 stainless steel wall bracket, marine-grade extruded aluminium, polycarbonate diffuser.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Opal polycarbonate

led strip options

View here

features

Customised lengths and configurations, made to measure.
New Zealand designed and made.
Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
Provides heat sinking for high wattage LED strips.
Dust and grease protection.

mounting options

Wall Mounted
Glass Mounted
Post Top

finish options

Satin 316 stainless steel wall bracket.

Product Information
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
Download
Product Information Pack
Click to view @ Dropbox.com

Joining & Mounting Accessories

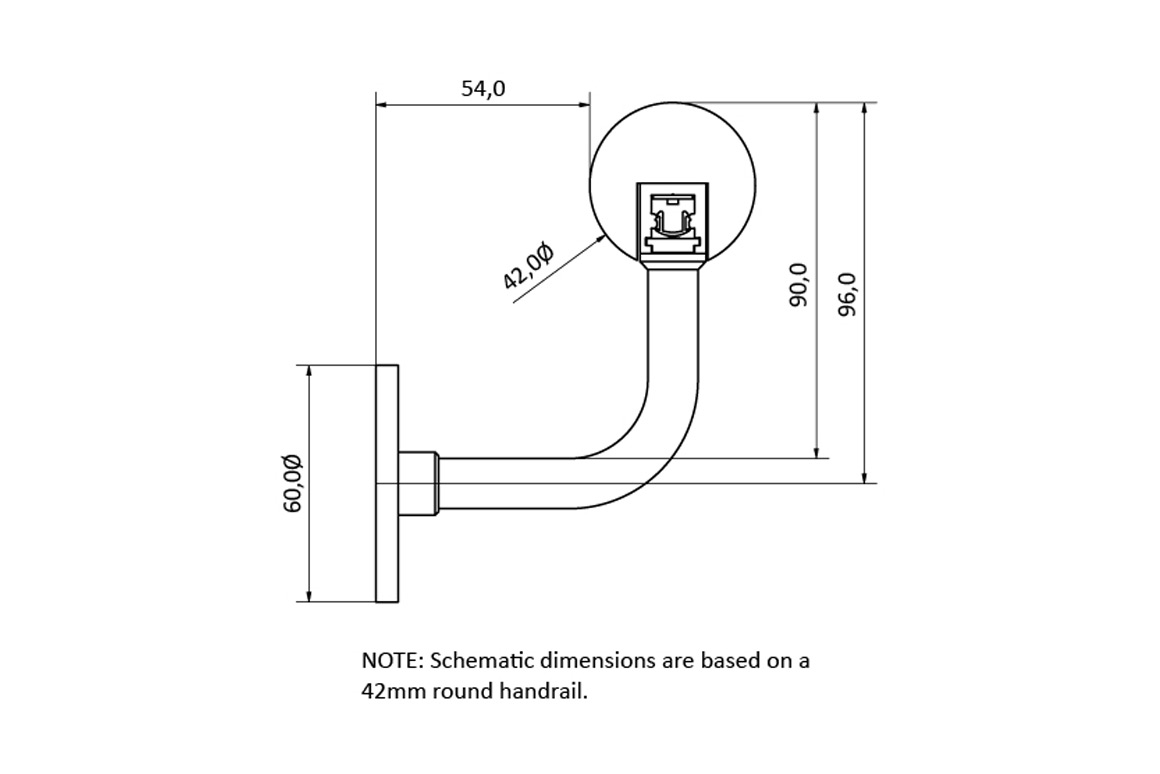

Wall Bracket

WBRR18-SS (Satin finish)

Post Top Bracket

PTBRR18-SS (Satin finish)

Glass Mount Bracket

GMBRR-SS (Satin finish)

Handrail Accessories

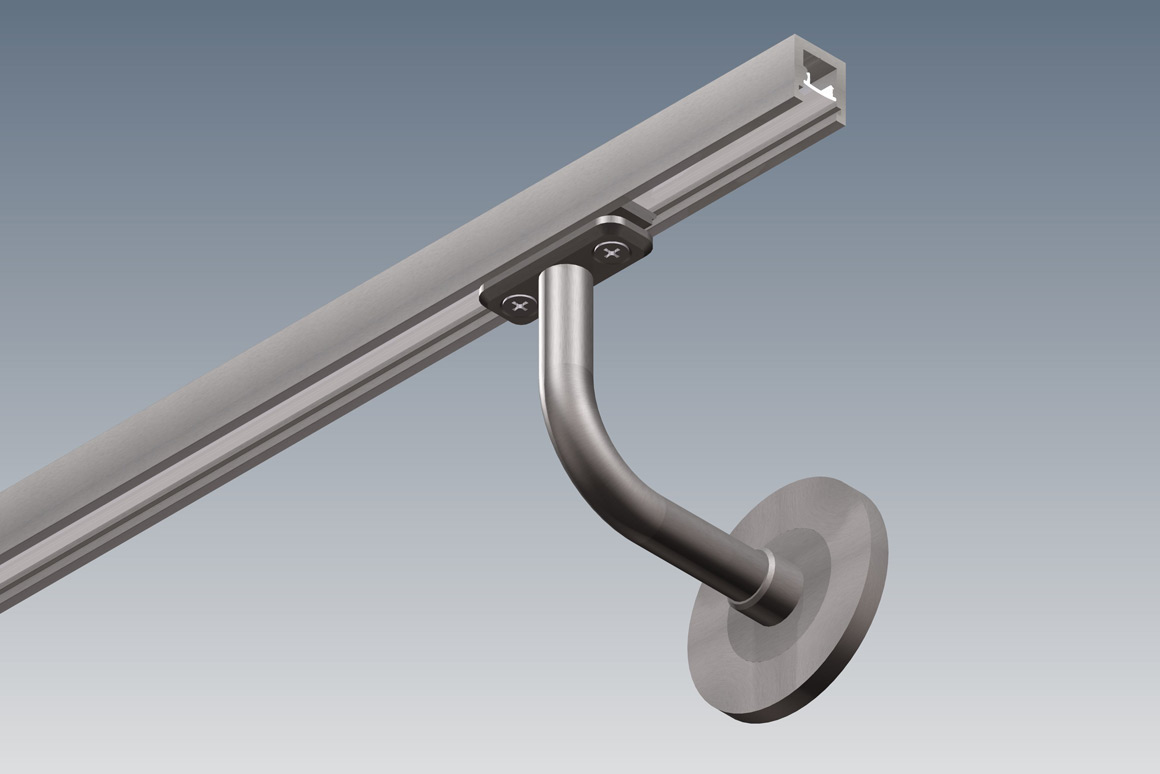

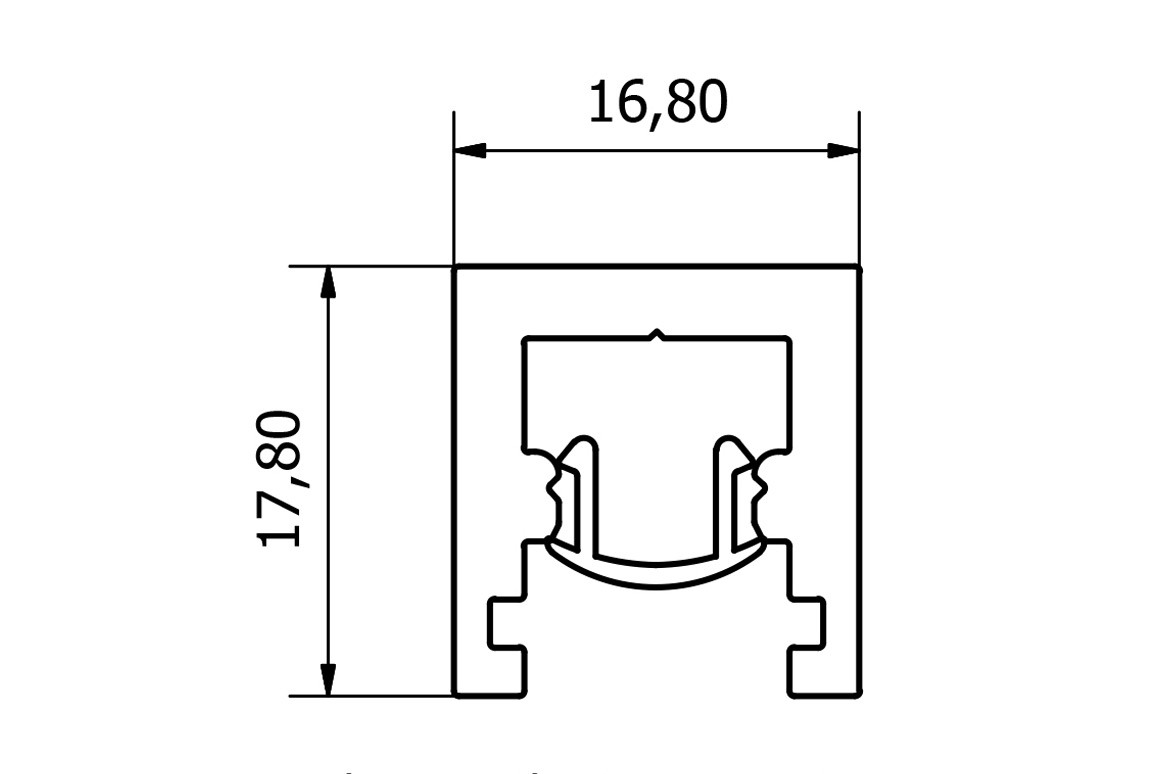

Extrusion and Diffuser

EX-RR18-MSA + DF-10-OP

American White Oak or Other Timber of your choice
