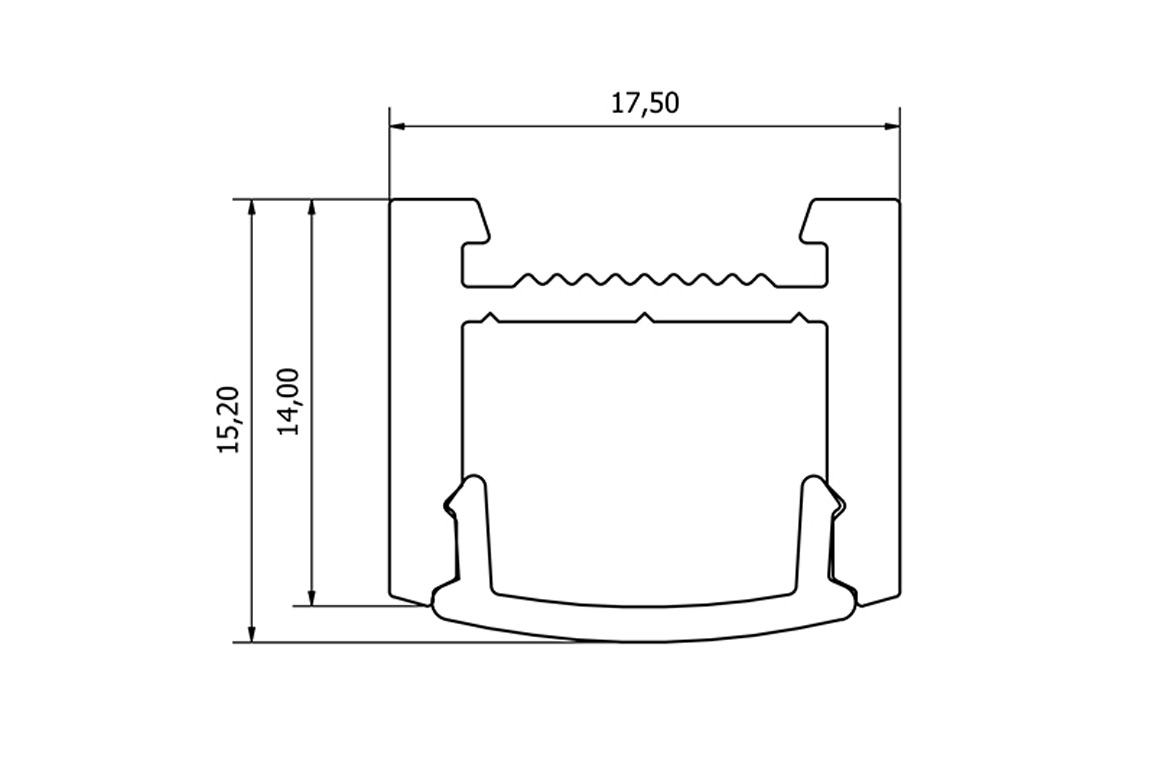

Downhill Dan 14

The Downhill Dan 14 profile is a compact solution providing “dot-free” lighting. A versatile system suitable for various mounting options, Downhill Dan 14 can be surface mounted, recessed or suspended.

Product Description

Application

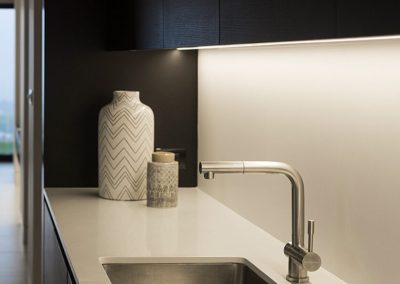

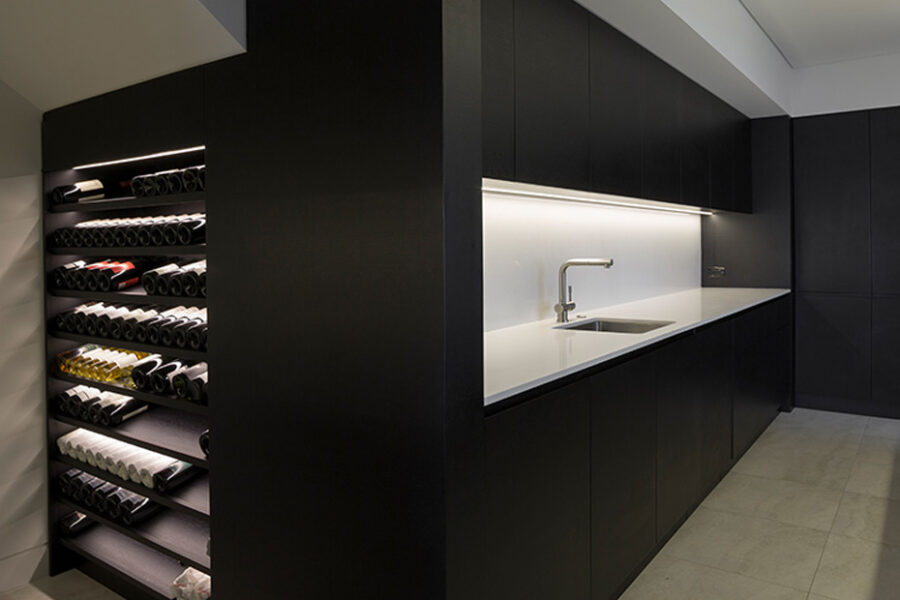

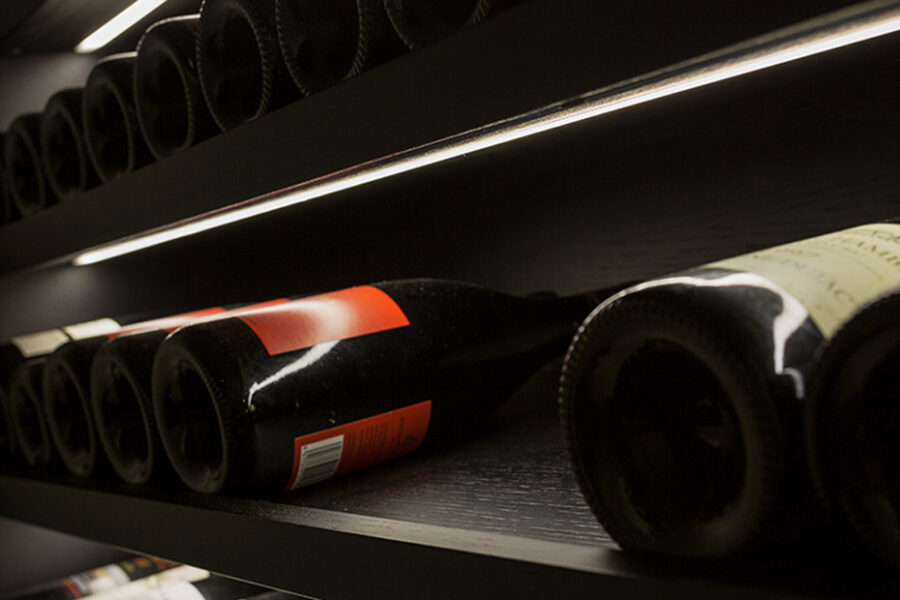

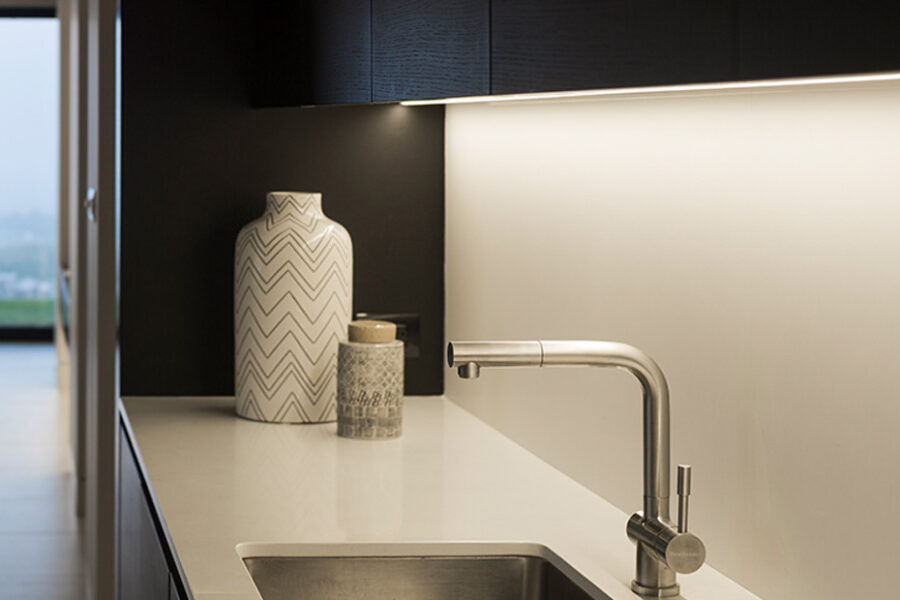

Task lighting in kitchen cabinetry, lighting for shelving or display units, hallway lighting.

Installation

Interior and exterior (with IP65 or IP67 rated LED strip).

Material

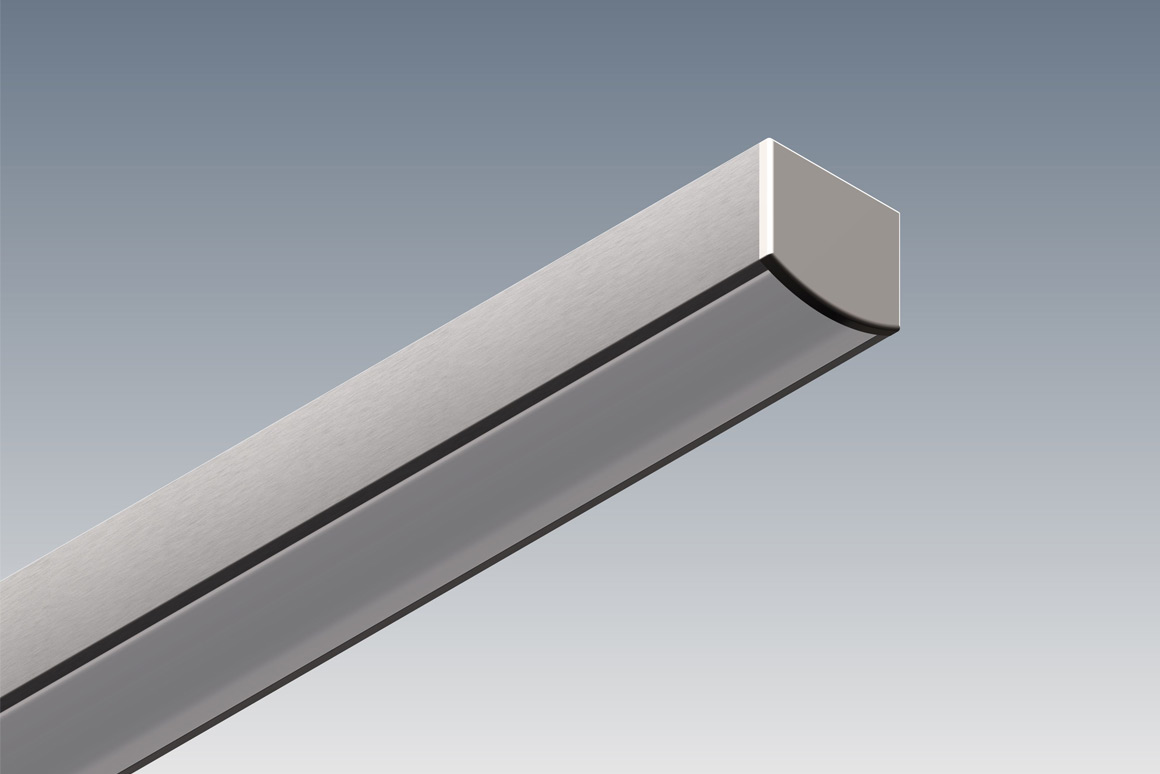

Aluminium body, polycarbonate diffuser, AES plastic end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Opal Polycarbonate, Clear Polycarbonate

led strip options

View here

features

Customised lengths and configurations, made to measure.
New Zealand designed and made.
Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
Provides heat sinking for high wattage LED strips.
Dust and grease protection.

mounting options

Surface Mounted
Recessed
Rod Suspended

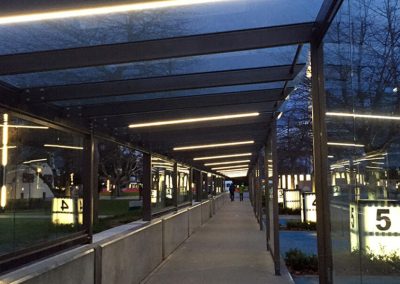

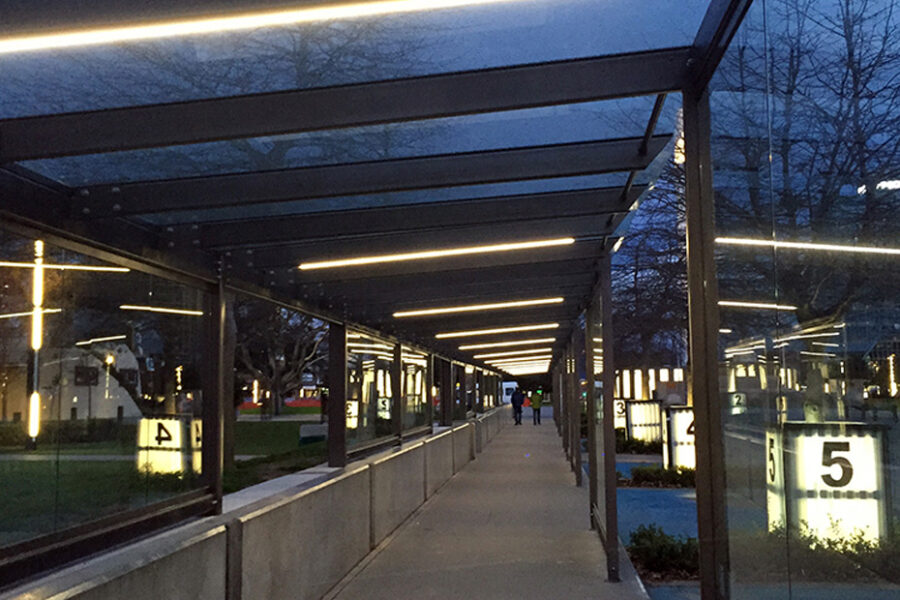

Wire Suspended

finish options

Natural Silver Anodised
Textura White Powder Coat
Textura Black Powder Coat
Custom Powder Coat Colours.

Product Information
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
Download
Product Information Pack
Click to view @ Dropbox.com

Joining & Mounting Accessories

Joinery Mounting Clip

JMC-12

Straight Joiner

JN-ST

90 Degree Joiner

JN-90

Adjustable Mounting Bracket

MB-ADJ

Suspension Rod – 0.5m, 1m, 2m

ROD-0.5M / ROD-1M / ROD-2M

Surface Mounted Rod Suspension Kit (Rod Not Incl.)

SRK-6-S (SILVER) / SRK-6-W (WHITE) / SRK-6-B (BLACK)

Recessed Rod Suspension Kit (Rod Not Incl.)

SRK-1-S (SILVER) / SRK-1-W (WHITE) / SRK-1-B (BLACK)

Cable Base 60, Recessed

CB-60-R-S (SILVER) / CB-60-R-W (WHITE)

Cable Base 80, Surface Mount

CB-80-SM-S (SILVER) / CB-80-SM-W (WHITE)

Wire Suspension – 1M, 2M 4M

SWK-1-1M / SWK-1-2M / SWK-1-4M
