Downhill Dan 10

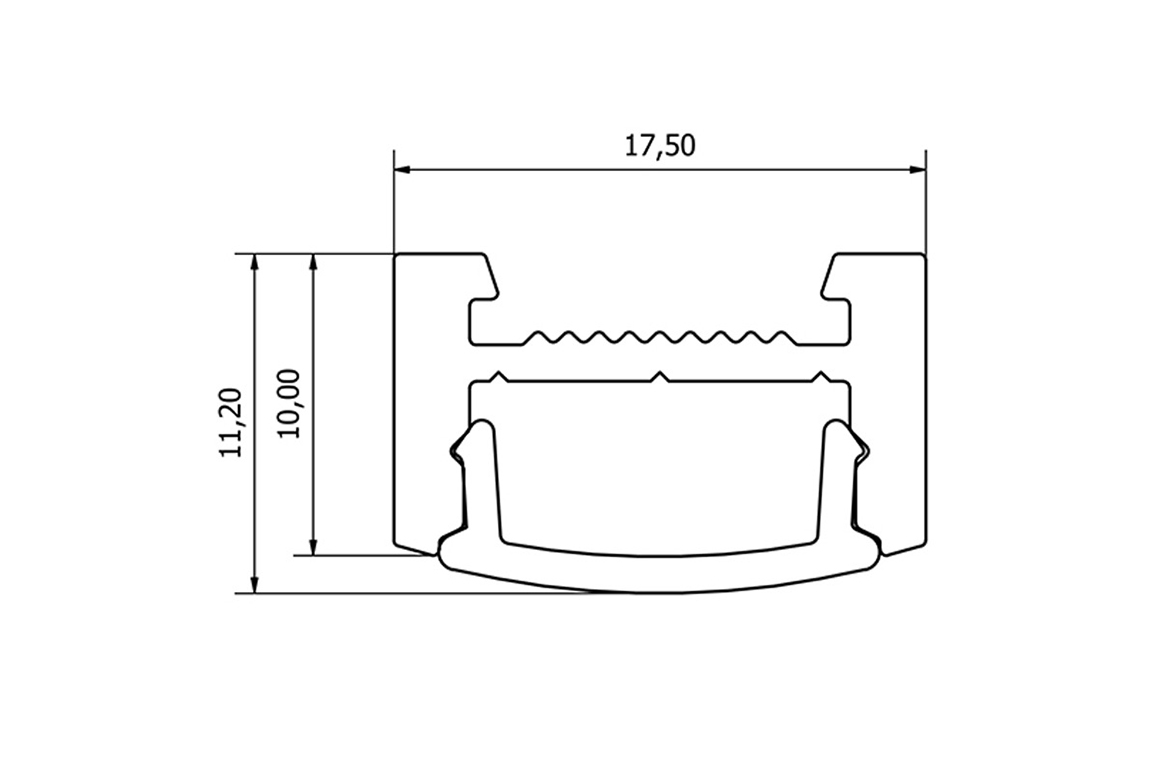

The Downhill Dan 10 profile is our most compact lighting system. At only 10mm deep, it’s ideal for tight spaces and minimal visual impact. Downhill Dan 10 can be surface mounted or recessed. The concealed mounting clip provides a quick and secure fixing to joinery surfaces.

Product Description

Application

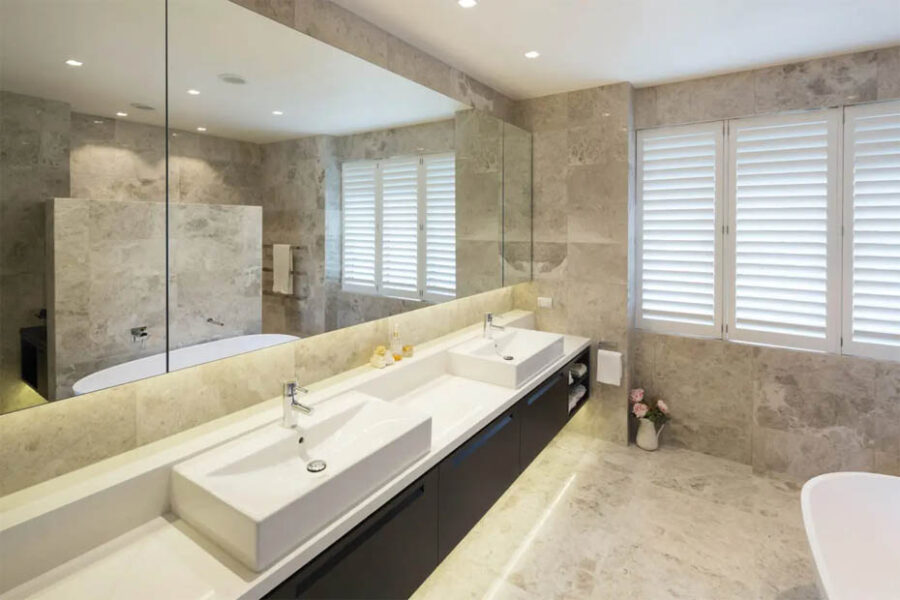

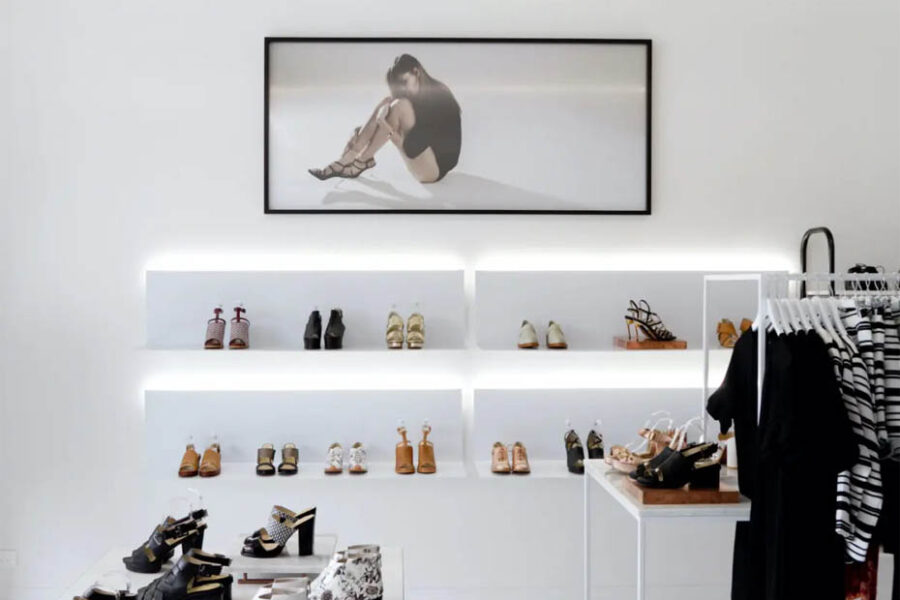

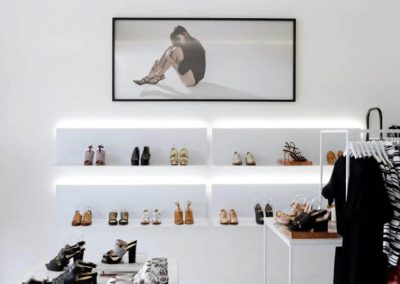

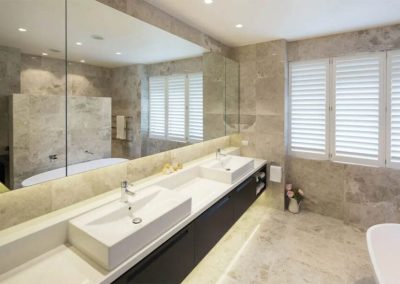

Task lighting in kitchen cabinetry, shelving or display units, concealed architectural details.

Installation

Interior only.

Material

Aluminium body, polycarbonate diffuser, AES plastic end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Opal Polycarbonate, Clear Polycarbonate

led strip options

View here

features

Customised lengths and configurations, made to measure.
New Zealand designed and made.
Provides heat sinking for high wattage LED strips.
Dust and grease protection.

mounting options

Surface Mounted
Recessed
Rod Suspended
Wire Suspended

finish options

Natural Silver Anodised
Textura White Powder Coat
Textura Black Powder Coat
Custom Powder Coat Colours.

Product Information
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
Download
Product Information Pack
Click to view @ Dropbox.com

Joining & Mounting Accessories

Joinery Mounting Clip

JMC-12

Straight Joiner

JN-ST

90 Degree Joiner

JN-90

Adjustable Mounting Bracket

MB-ADJ

SUSPENSION ROD – 0.5M, 1M, 2M

ROD-0.5M / ROD-1M / ROD-2M

SURFACE MOUNTED ROD SUSPENSION KIT (ROD NOT INCL.)

SRK-6-S (SILVER) / SRK-6-W (WHITE) / SRK-6-B (BLACK)

RECESSED ROD SUSPENSION KIT (ROD NOT INCL.)

SRK-1-S (SILVER) / SRK-1-W (WHITE) / SRK-1-B (BLACK)

CABLE BASE 60, RECESSED

CB-60-R-S (SILVER) / CB-60-R-W (WHITE)

CABLE BASE 80, SURFACE MOUNT

CB-80-SM-S (SILVER) / CB-80-SM-W (WHITE)

WIRE SUSPENSION – 1M, 2M 4M

SWK-1-1M / SWK-1-2M / SWK-1-4M
