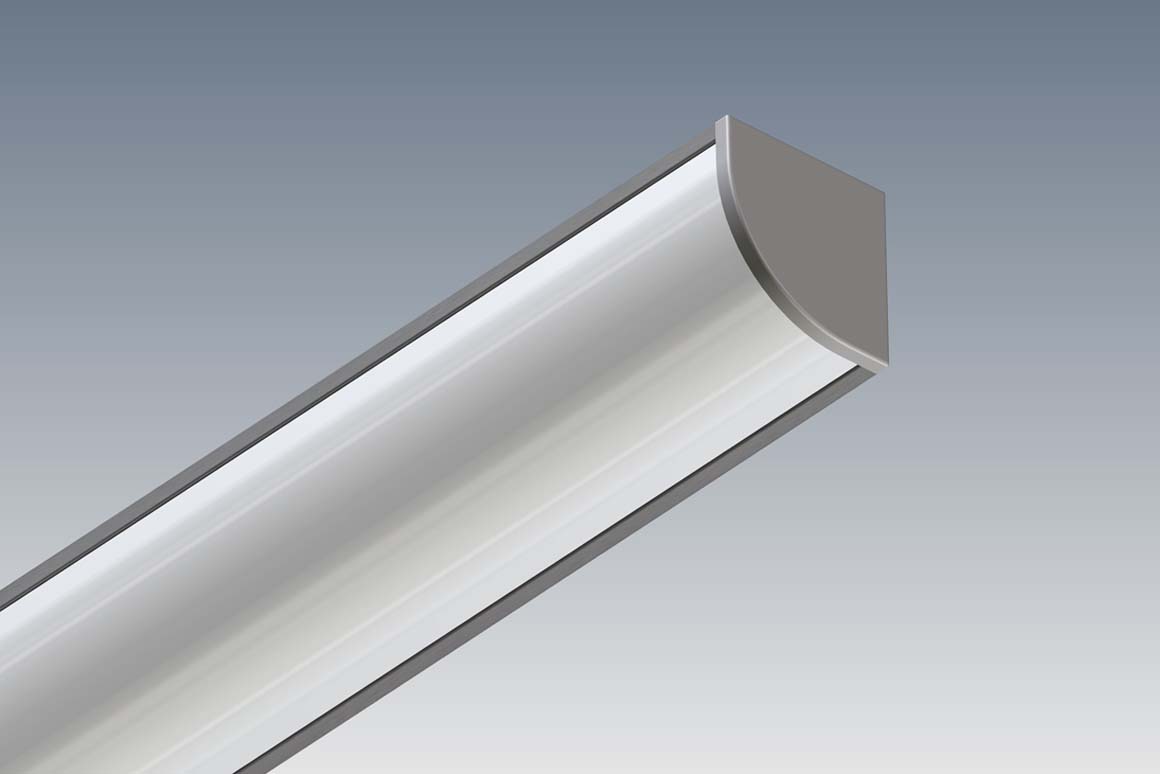

Angle Andy 16

Angle Andy 16

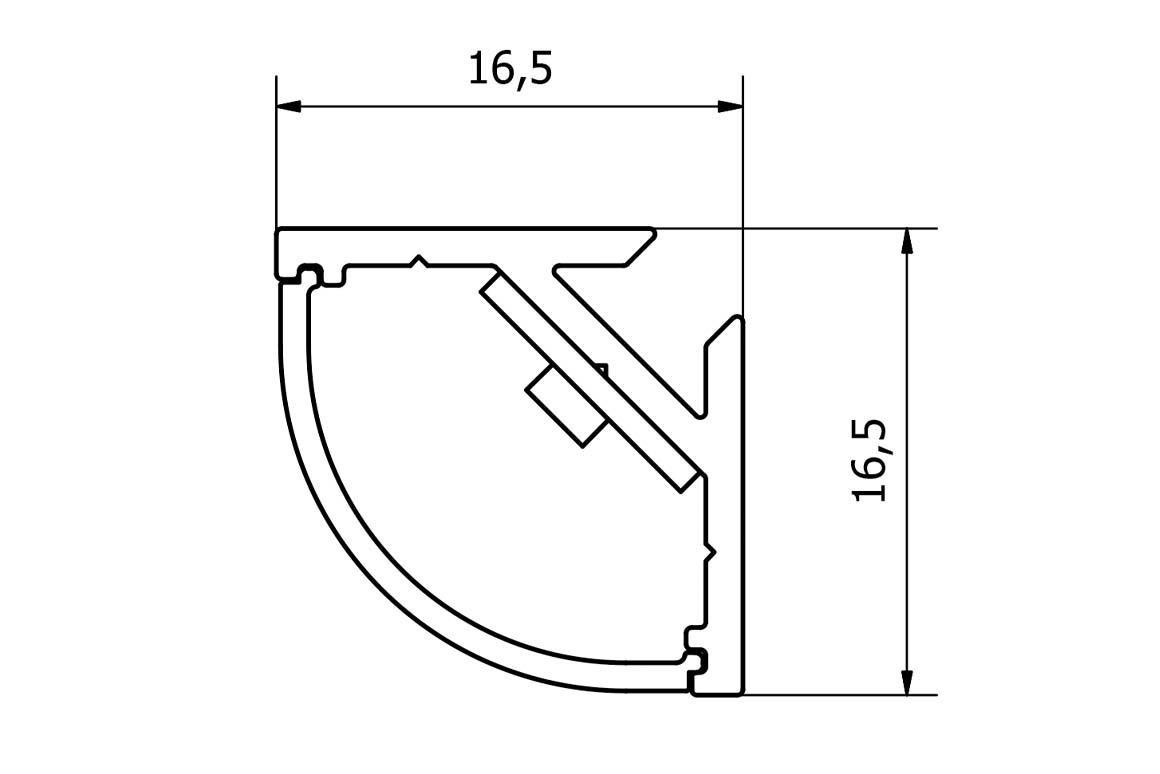

The Angle Andy 16 profile is great for use in display units, shelving, mirror cabinets or those tricky little architectural nooks and crannies that require a miniaturised asymmetric profile. The small ‘open’ cavity at the back of the profile allows it to sit snug into the corner of a space, even where there are uneven surfaces caused by lumps of plaster or sealant.

SKU: AA16 Category:
Share

Product Description

Application

Task lighting in kitchen cabinetry, lighting for shelving or display units, mirror cabinets, niches.

Installation

Interior and exterior (with IP67 rated LED strip).

Material

Aluminium body, polycarbonate diffuser, AES plastic end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Opal Polycarbonate

led strip options
features
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
  • Provides heat sinking for high wattage LED strips.
  • Dust and grease protection.
mounting options
  • Surface Mounted
finish options
  • Natural Silver Anodised
  • Textura White Powder Coat
  • Textura Black Powder Coat
  • Custom Powder Coat Colours.
  • Product Information
    Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
  • Download
    Product Information Pack
    Click to view @ Dropbox.com

Joining & Mounting Accessories

Straight Joiner

JN-ST-5
