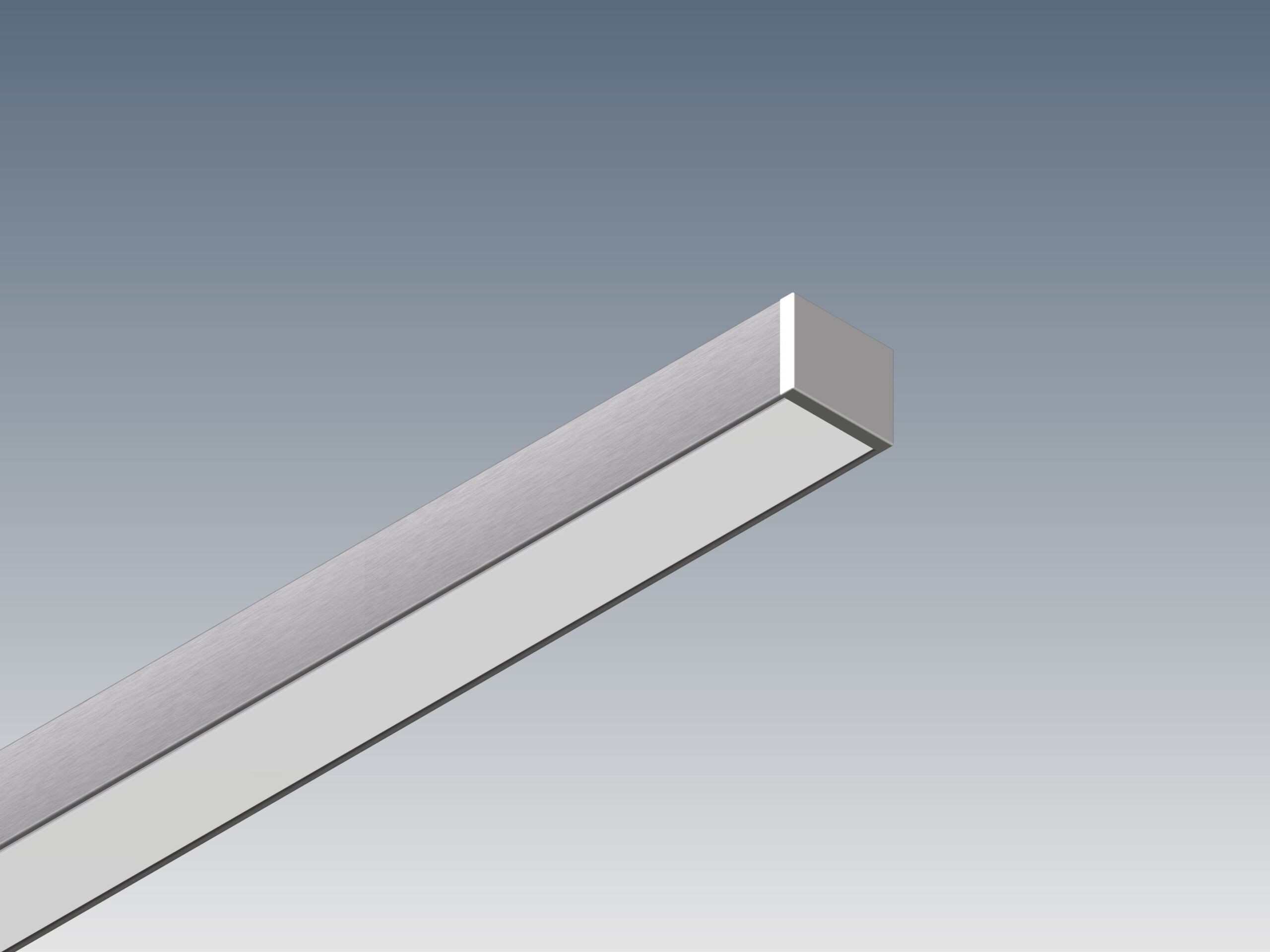

Slim Jim 10

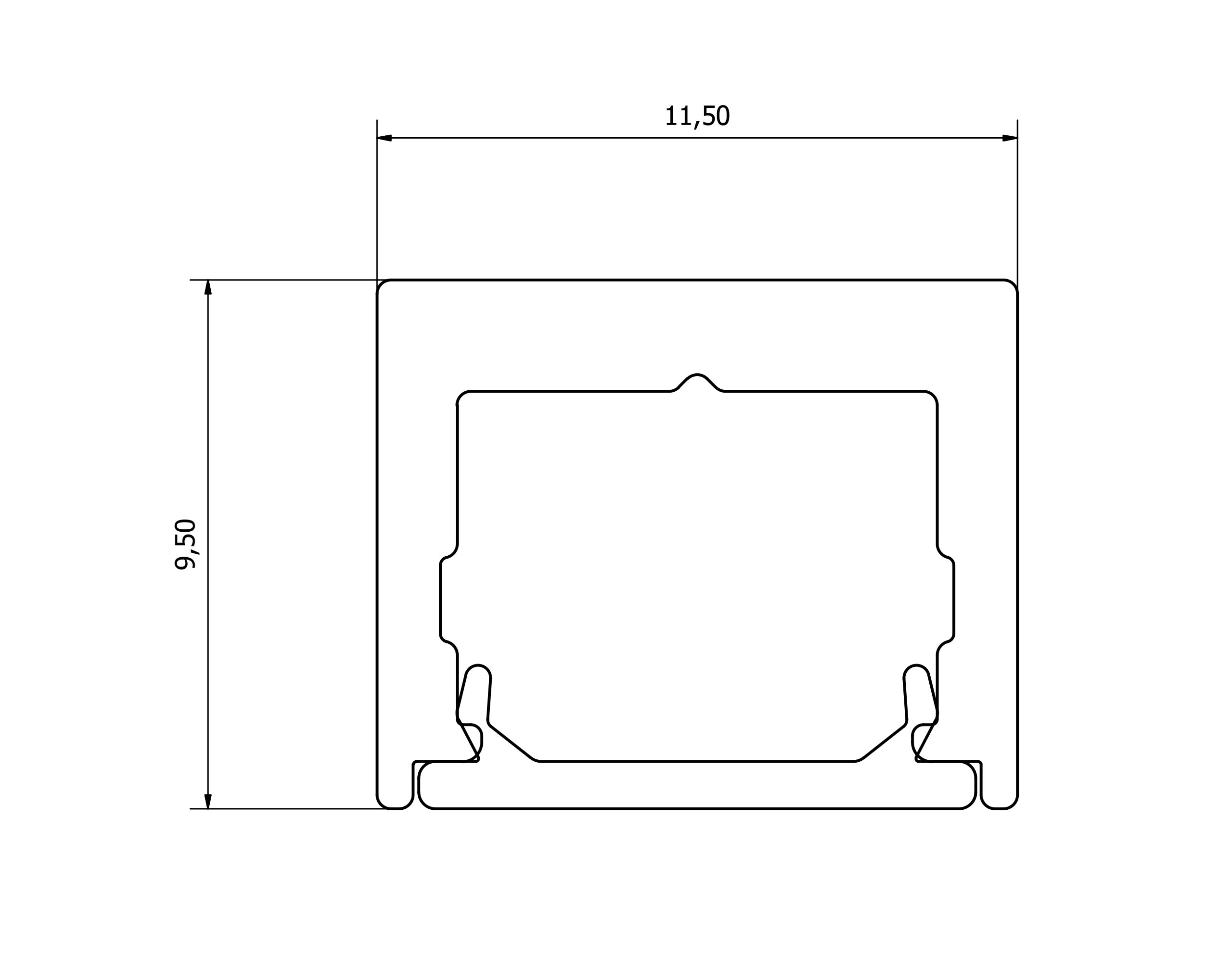

At only 11.5mm wide, Slim Jim 10 is a miniature profile designed for those tricky little spots – stair nosings, small cabinetry details and more. With the Spec Series Slim 9.6W IP65 LED Strip, Slim Jim 10 can even be used in exterior applications.

SKU: SJ10 Categories: ,

Description

Application

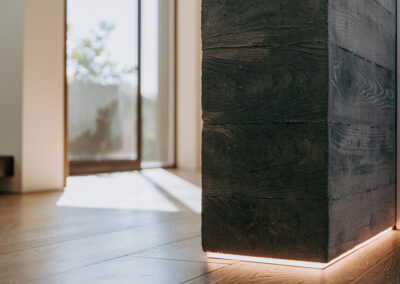

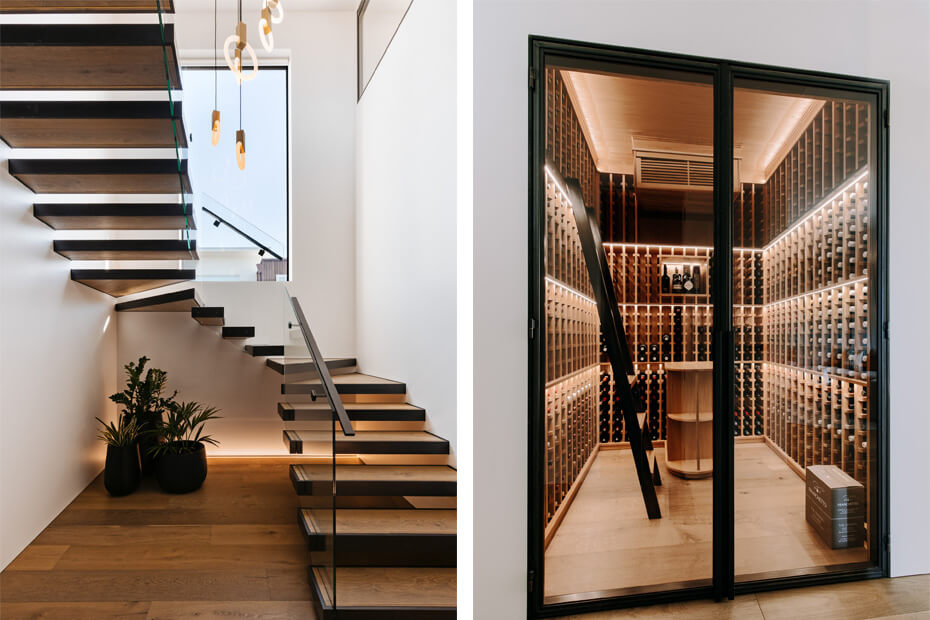

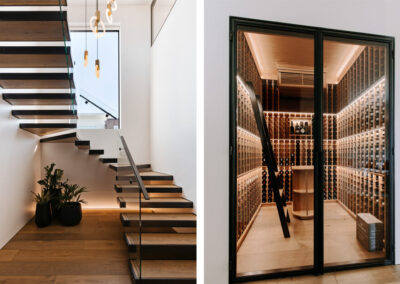

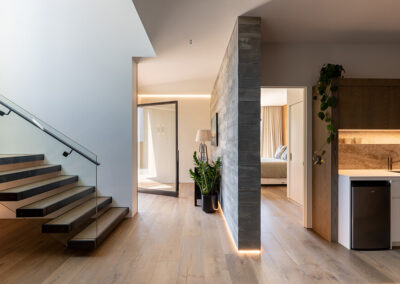

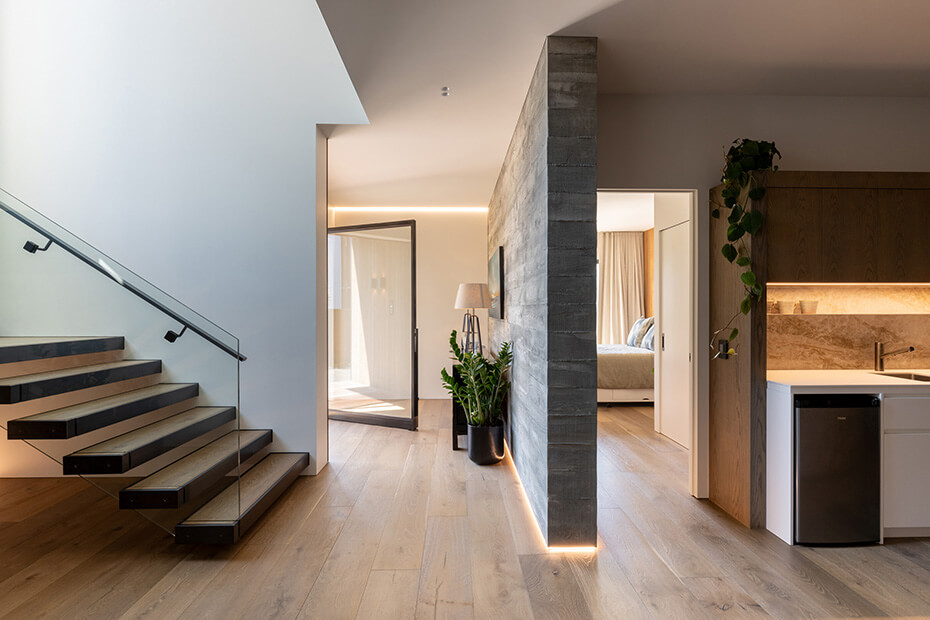

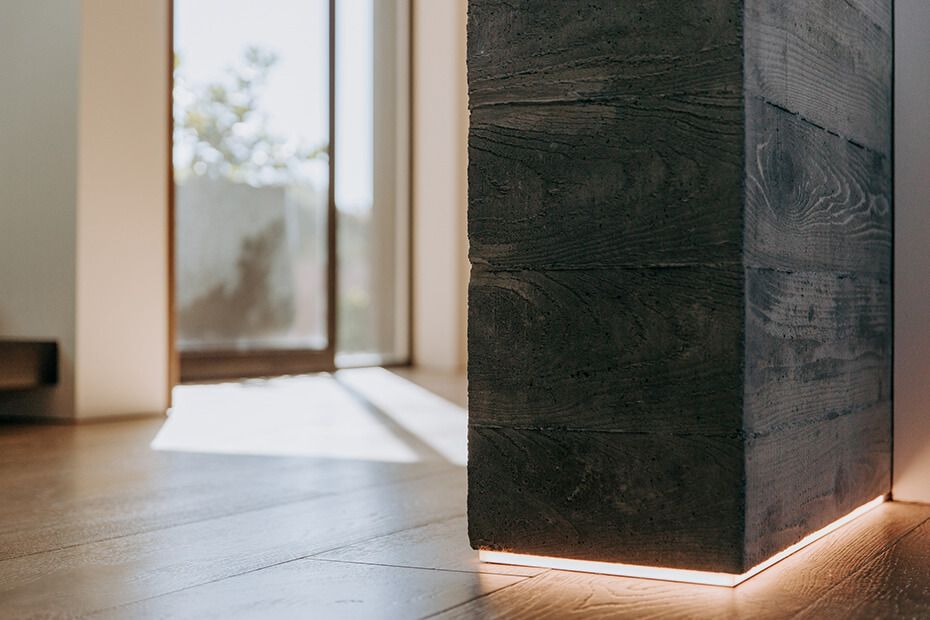

Stair nosings, shower niches, joinery, negative spaces between timber or ply and many more.

Installation

Interior and exterior (with IP65 rated strip).

Material

Extruded aluminium body, polycarbonate diffuser, AES plastic end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Opal Polycarbonate

led strip options
features
  • New Zealand designed and made.
  • Made for task lighting, kitchen cabinetry, shelving or display units.
  • Compact, miniature profile designed for smaller spaces.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
mounting options
  • Surface Mounted
  • Recessed
finish options
  • Natural Silver Anodised
  • Custom Powder Coat.
  • Product Information
    Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
  • Download
    Product Information Pack
    Click to view @ Dropbox.com
