Where’s Ben 25

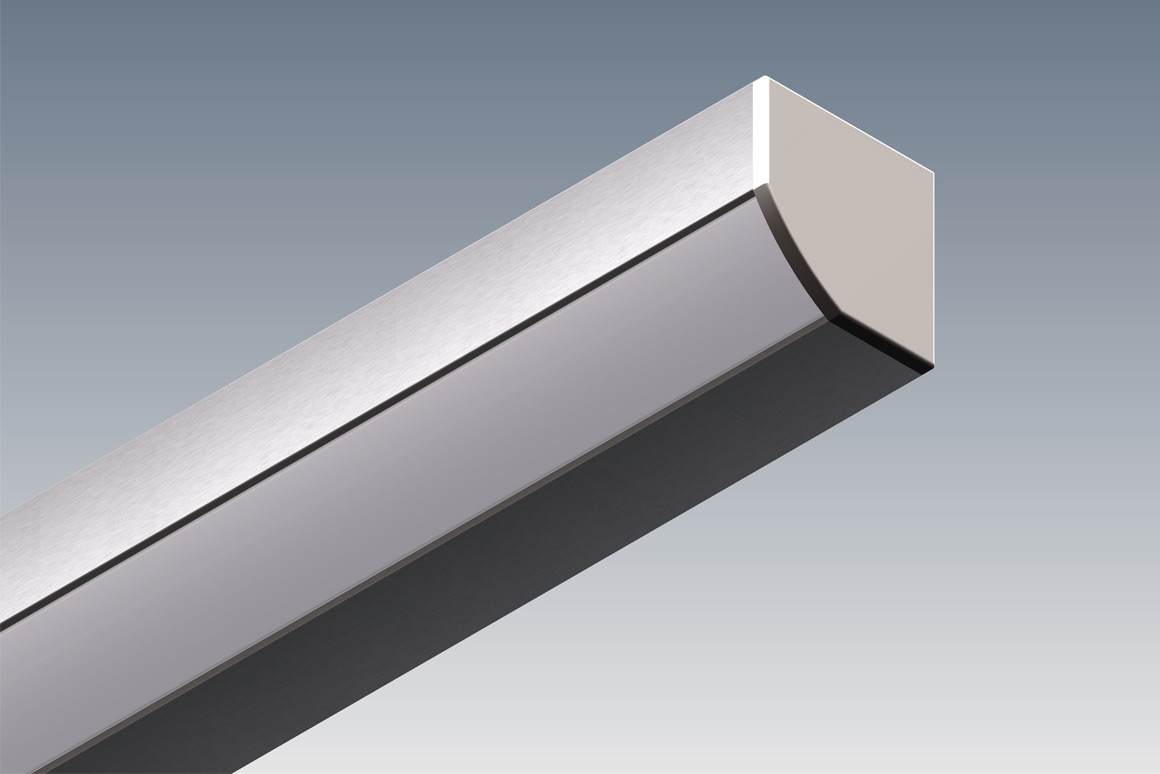

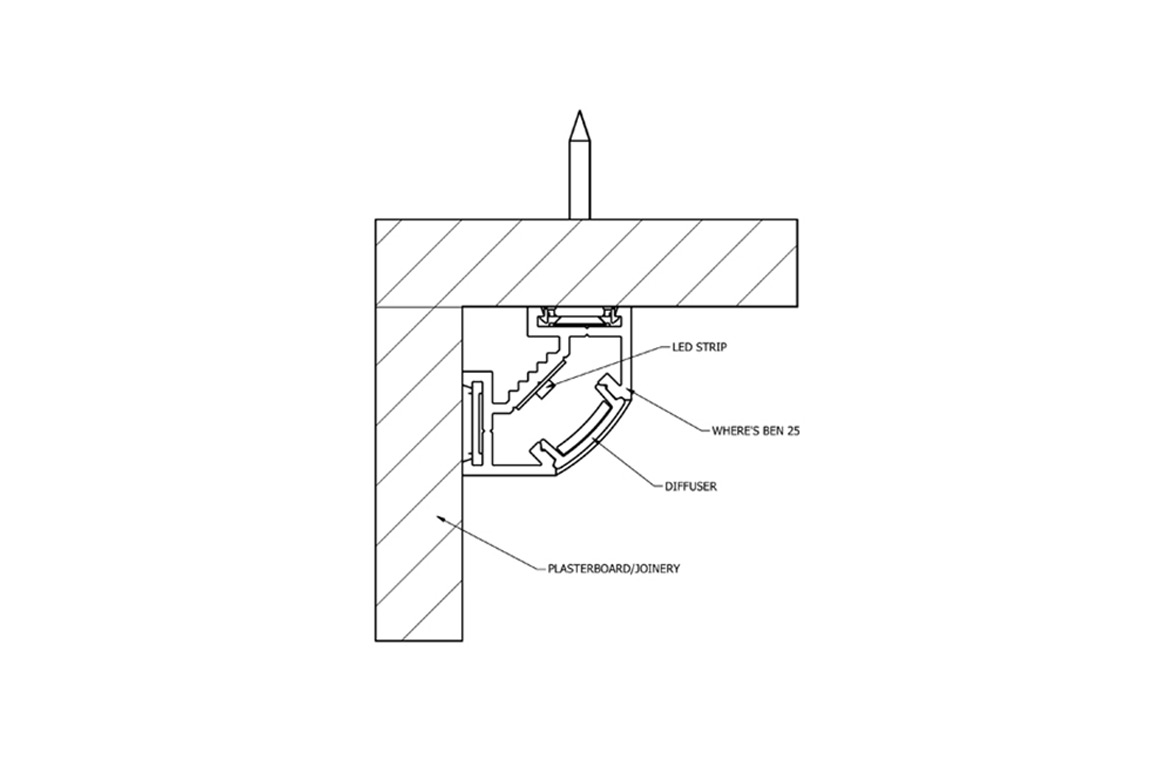

The Where’s Ben 25 profile is a Fully Integrated Architectural, lighting solution. Designed to be recessed into the corner of perpendicular walls or into the corner of a wall and ceiling, Where’s Ben 25 offers a unique and subtle architectural detail.

Product Description

Application

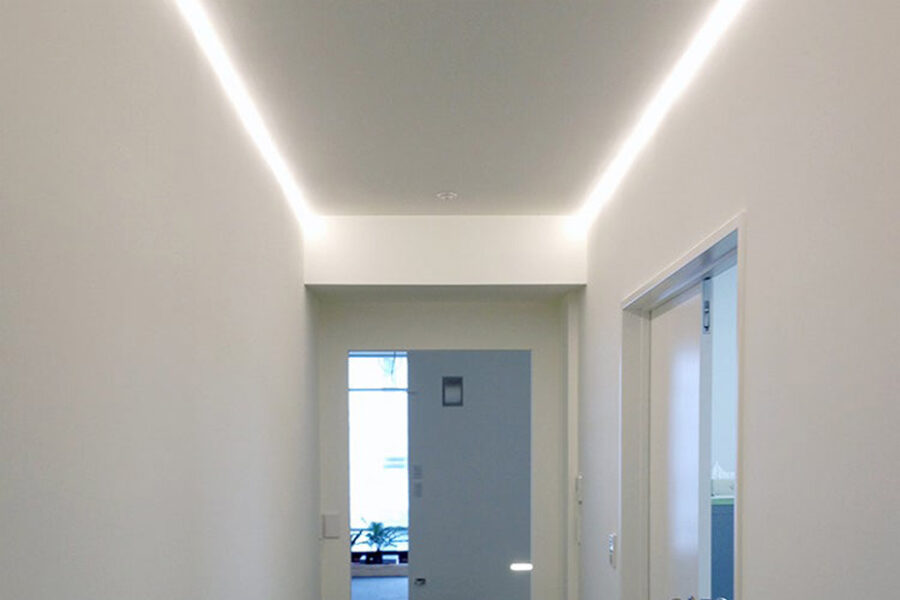

Hallways, bathrooms, mirror lighting.

Installation

Interior and exterior (with IP65 or IP67 rated LED strip).

Material

Aluminium body, polycarbonate diffuser, AES plastic end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffusor options

Opal Polycarbonate, Clear Polycarbonate

led strip options

View here

features

Customised lengths and configurations, made to measure.
New Zealand designed and made.
Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
Provides heat sinking for high wattage LED strips.
Dust & grease protection.

mounting options

Surface Mounted
Recessed

finish options

Natural Silver Anodised
Textura White Powder Coat
Textura Black Powder Coat
Custom Powder Coat Colours

Product Information
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
Download
Product Information Pack
Click to view @ Dropbox.com

Joining & Mounting Accessories

Straight Joiner

JN-ST-12

90 Degree Joiner

JN-90-12

135 Degree Joiner

JN-135-12

120 Degree Joiner

JN-120-12

Request Sample

Name(Required)

First Last

Phone(Required)

Email(Required)

Would you like a sample?

Yes please

No, I just have a question

Type Question Here

Address(Required)

Street Address Address Line 2 City Post Code Country

Comments

This field is for validation purposes and should be left unchanged.

The Where’s Ben 14 profile is the perfect solution for wall-washing, ceiling-washing or floor-washing. It creates an even wash of light on to a perpendicular surface meaning it is ideal for lighting art work, or brightening up dark walls or ceilings. Where’s Ben 14 can be surface mounted or recessed.

Dado Dave 20 is a sleek, architectural profile designed to provide high-output up lighting. The LED strip is positioned to maximise asymmetric distribution which offers smooth light out into the space. The concealed light source keeps glare to a minimum, while up to 2650 lumens per metre LED strip means it packs a punch. The extrusion is designed for super-quick screw-fixing, while a clip-in aluminium lid covers the screw heads and provides a smooth, easy-to-clean surface. For applications where Dado Dave 20 is being mounted flush with the bottom of a bulkhead, then the mounting adaptor can be used to reverse the direction of the mounting screw.

Simple Simon 7 is designed to be just that – simple. It provides a heatsink for high-powered LED strips and offers a smooth, flat surface to affix the LED strip to. The asymmetric screw channel means the product can be installed with the LED strip already attached. Simple Simon 7 is ideal for mounting within coves and pelmets, or any application where the LED strip doesn’t need to be diffused.

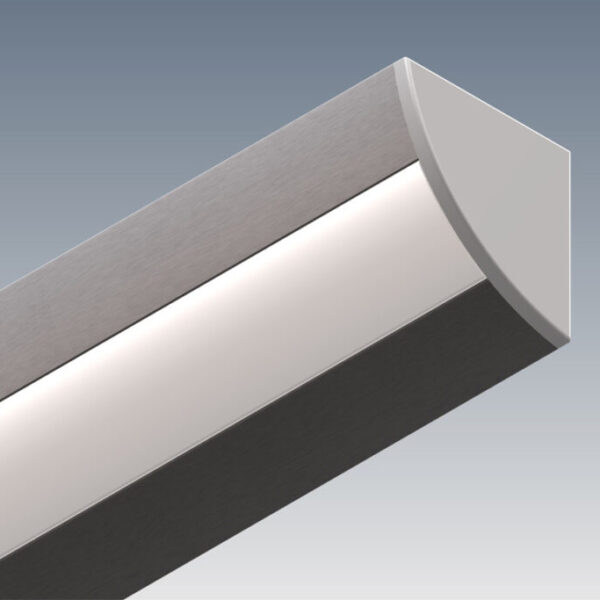

The Angle Andy 25 profile is perfect for mounting in corners of joinery, corners of perpendicular walls or into the corner of a wall and ceiling. Angle Andy 25 features one smooth side, meaning it is not confined to corner mounting, but can also be mounted with one side of the extrusion visible – ideal for wall washing or glass cabinetry.
