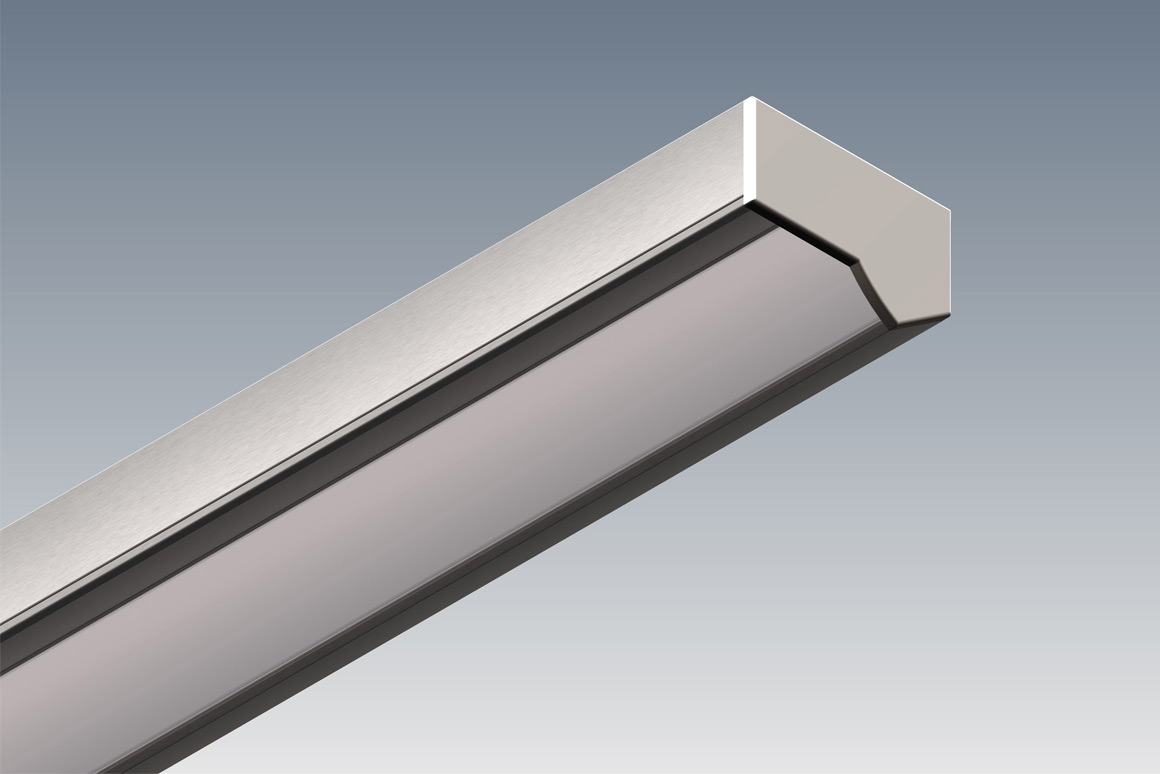

Where’s Ben 14

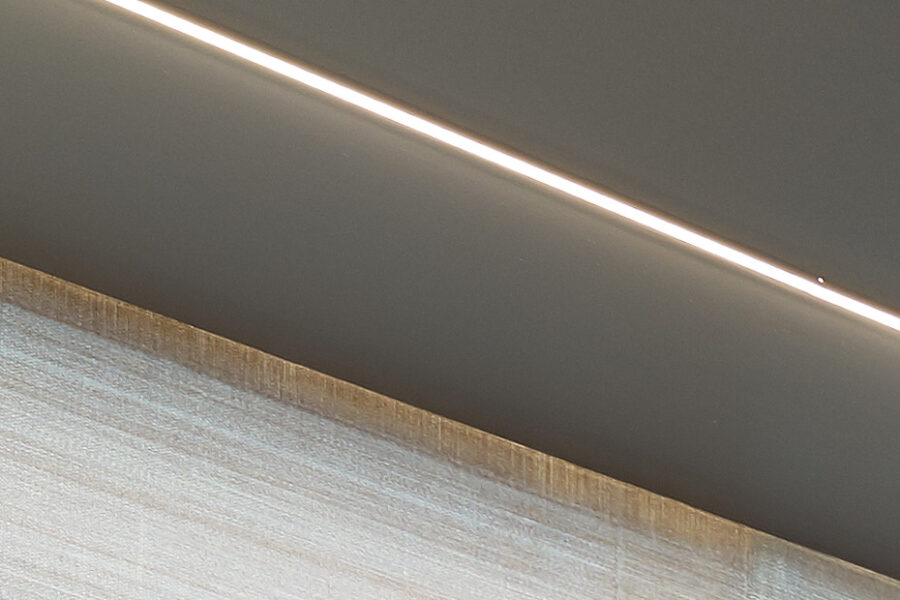

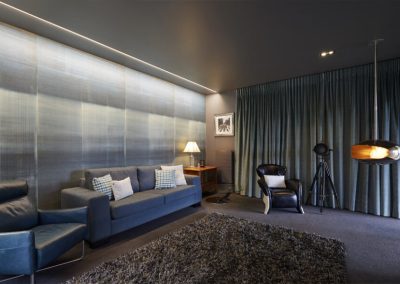

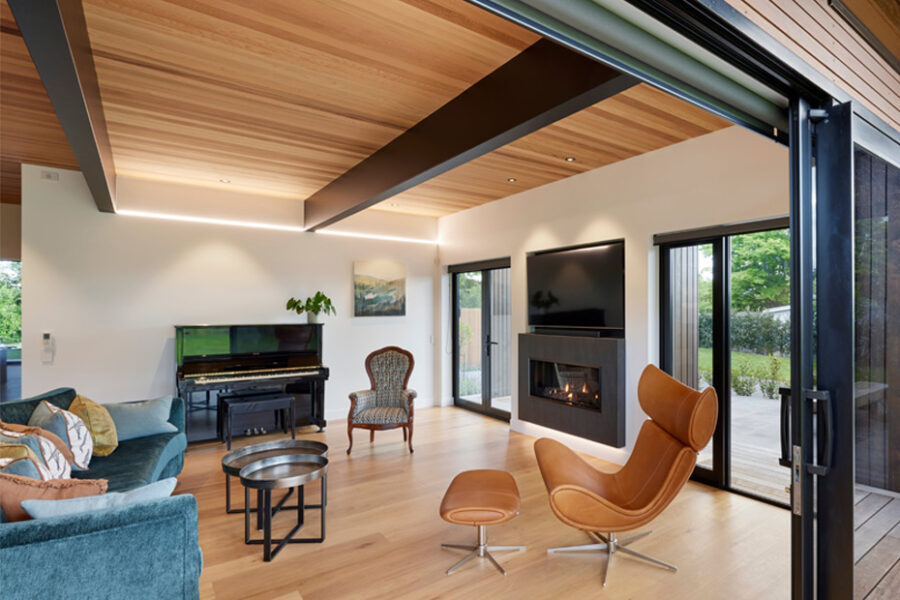

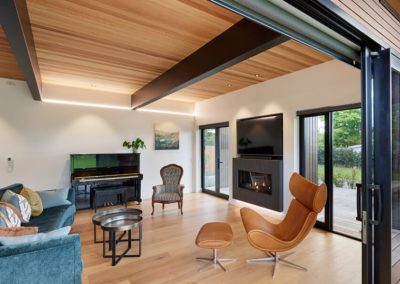

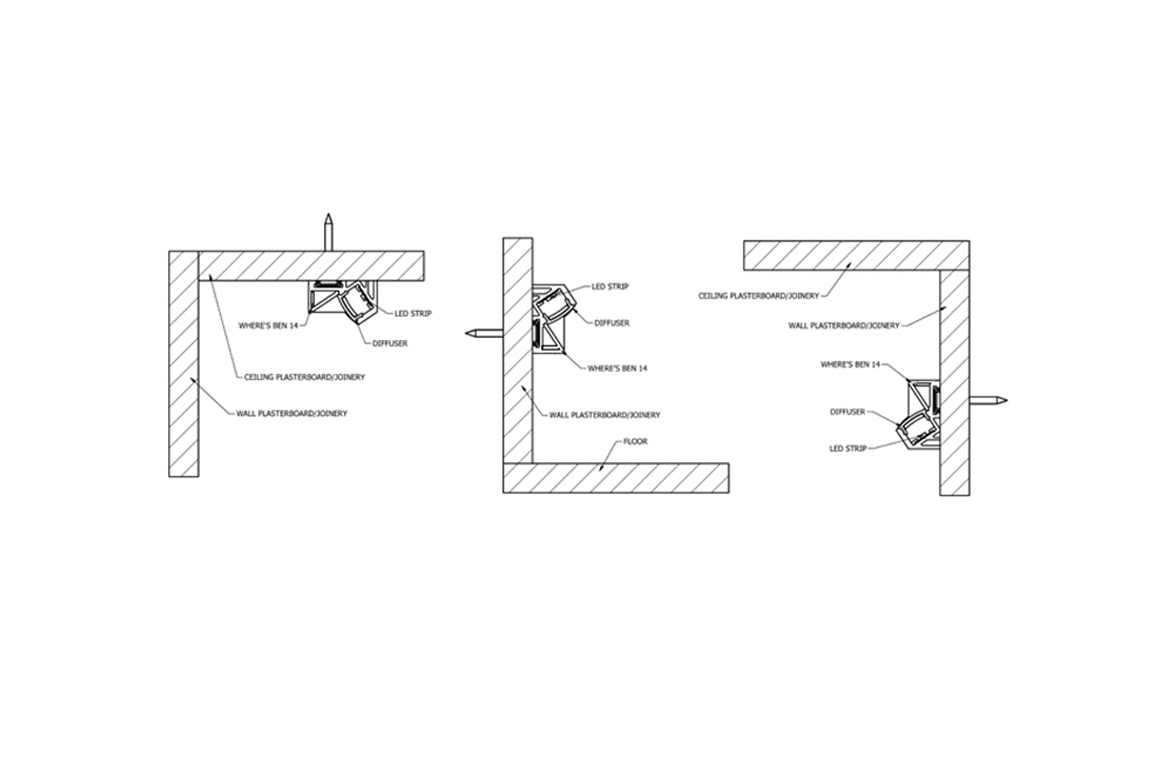

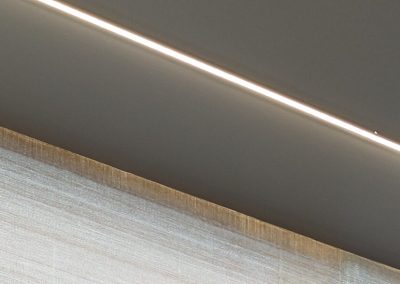

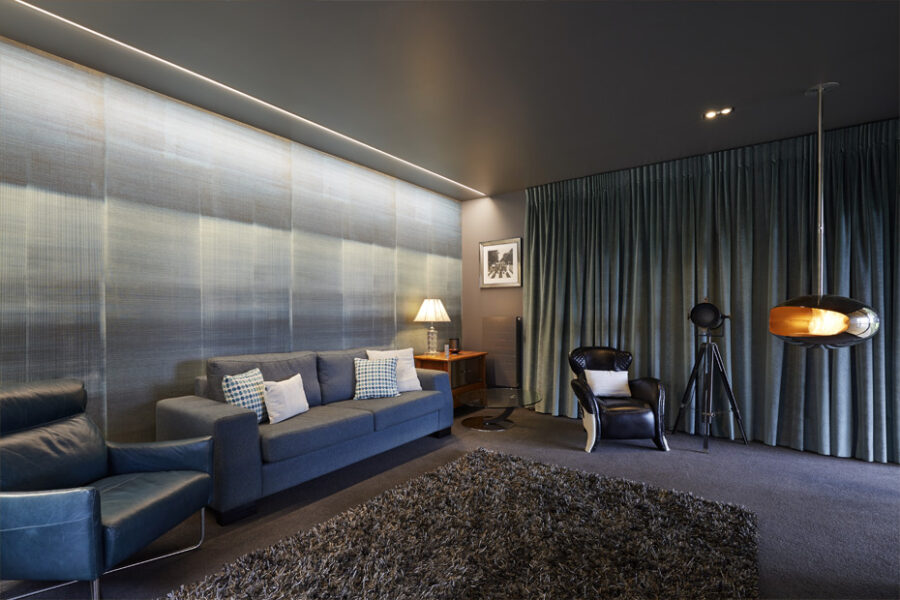

The Where’s Ben 14 profile is the perfect solution for wall-washing, ceiling-washing or floor-washing. It creates an even wash of light on to a perpendicular surface meaning it is ideal for lighting art work, or brightening up dark walls or ceilings. Where’s Ben 14 can be surface mounted or recessed.

Product Description

Application

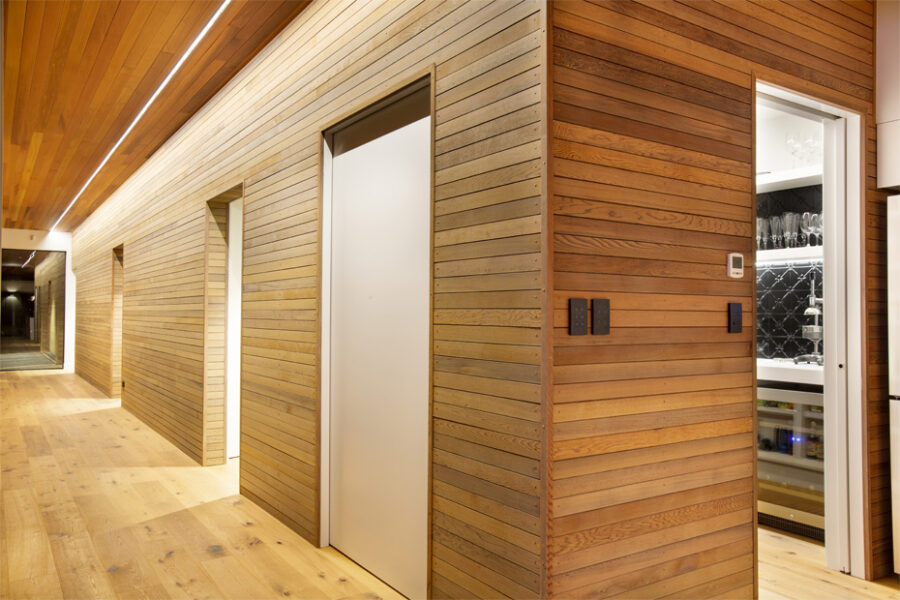

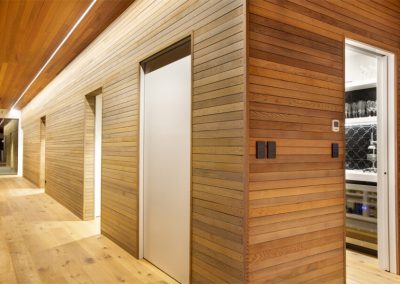

Wall washing, uplight, lighting for shelving or display units, hallway lighting, lighting signage & art.

Installation

Interior and exterior (with IP65 or IP67 rated LED strip).

Material

Aluminium body, polycarbonate diffuser, AES plastic end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffusor options

Opal Polycarbonate, Clear Polycarbonate

led strip options

View here

features

Customised lengths and configurations, made to measure.
New Zealand designed and made.
Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
Provides heat sinking for high wattage LED strips.
Dust & grease protection.

mounting options

Surface Mounted
Recessed

finish options

Natural Silver Anodised
Textura White Powder Coat
Textura Black Powder Coat
Custom Powder Coat Colours

Product Information
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
Download
Product Information Pack
Click to view @ Dropbox.com

Joining & Mounting Accessories

Straight Joiner

JN-ST-12

90 Degree Joiner

JN-90-12

135 Degree Joiner

JN-135-12

120 Degree Joiner

JN-120-12

Recess cowling for plasterboard

2M Long C-WB14-I

Recess cowling end cap for plasterboard

C-WB14-EC-I
