Sweet 16

The Sweet 16 profile is a powerful, compact uplight/downlight solution. With a single LED strip for downlighting and two for uplighting, Sweet 16 is ideal for boardrooms, reception counters and kitchen islands. Sweet 16 can be wired with two independent, dimmable circuits to achieve the perfect amount of light. Both wire and rod suspension options are available.

Product Description

Application

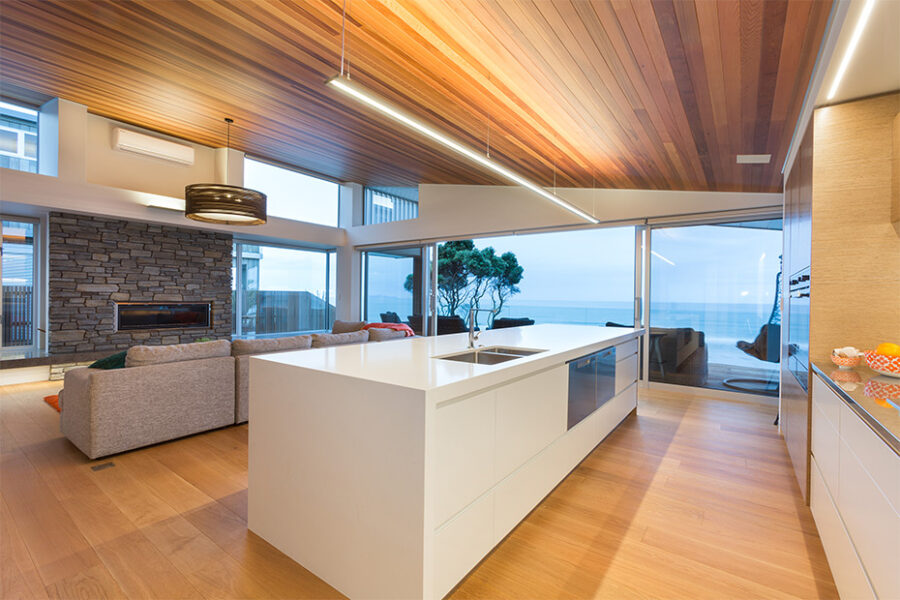

Kitchen islands, boardroom tables, reception counters, office spaces.

Installation

Interior only.

Material

Aluminium body, polycarbonate diffuser, aluminium end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffusor options

Opal Polycarbonate, Clear Polycarbonate

led strip options

View here

features

Customised lengths and configurations, made to measure.
New Zealand designed and made.
Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
Provides heat sinking for high wattage LED strips.
Dust & grease protection.

mounting options

Rod Suspended
Wire Suspended
Wall Mounted

finish options

Natural Silver Anodised
Textura White Powder Coat
Textura Black Powder Coat
Custom Powder Coat Colours

Product Information
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
Download
Product Information Pack
Click to view @ Dropbox.com

Joining & Mounting Accessories

Straight Joiner

JN-ST-6

90 Degree Joiner

JN-90-6

Suspension Rod – 0.5m, 1m, 2m

ROD-0.5M / ROD-1M / ROD-2M

Surface Mounted Rod Suspension Kit (Rod Not Incl.)

SRK-8-S (SILVER) / SRK-8-W (WHITE) / SRK-8-B (BLACK)

Recessed Rod Suspension Kit (Rod Not Incl.)

SRK-3-S (SILVER) / SRK-3-W (WHITE) / SRK-3-B (BLACK)

Cable Base 60, Recessed

CB-S16-60-R-S (SILVER) / CB-S16-60-R-W (WHITE)

Cable Base 80, Surface Mount

CB-S16-80-SM-S (SILVER) / CB-S16-80-SM-W (WHITE)

Wire Suspension – 1M, 2M, 4M

SWK-V-1M / SWK-V-2M / SWK-V-4M

Wall Bracket

WB-S16
