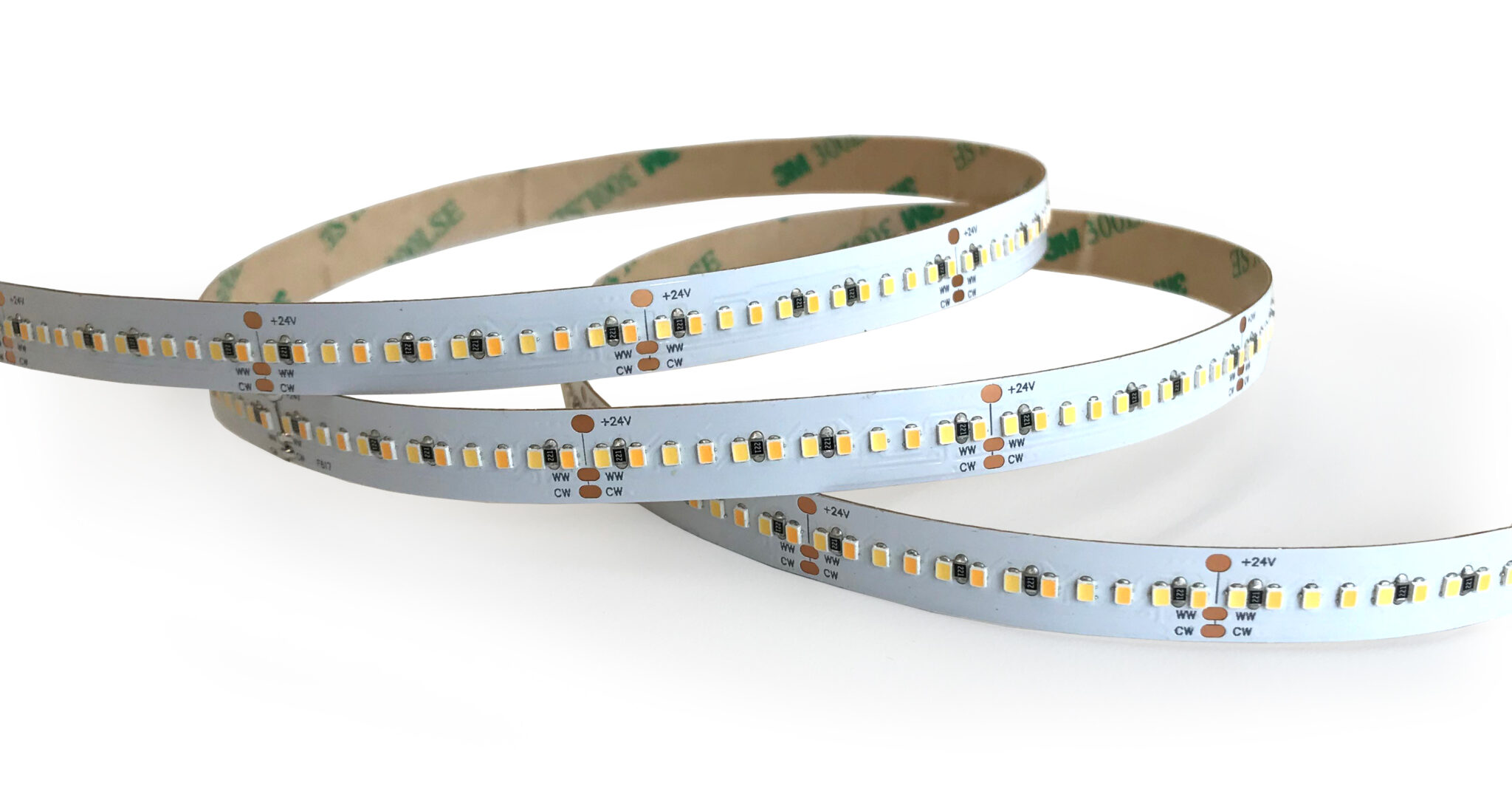

Spec Series Tuneable White LED Strip
Spec Series Colour Tuneable White LED Strips are available as a close-pitch or a high-output version. Colour temperature selection from 1800K to 5000K allows a broad range of colour temperatures which can be controlled via simple stand-alone systems, Casambi controllers or many other automation systems.
Category: LED Strip
Product Information
5-year warranty
CRI: 80+ for SPEC-20-CTUNE-18/50
PCB width: 6-8mm
Source life: L70 @ 50,000 hours
CRI: 90+ for SPEC-19.2-CTUNE-18/50
3SDCM
Input voltage: 24V DC
features
| Code | Watts per metre | Colour temp. | Lumens per metre | LEDs per metre | Max. length per feed | Protection |
|
SPEC-19.2 -CTUNE
|
19.2W
|
1800-5000K
|
1200 – 1500
|
288 | 5M | IP20 |
|
SPEC-20 -CTUNE
|
20W
|
1800-5000K | 1500 – 1850 | 196 | 4M | IP20 |
Please Note
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
LED pitch figures refer to LEDs of a single colour.
Lumen figures above apply at 3000K-4000K colour selections.
SPEC-19.2-CTUNE is 620lm at 1800K and 850lm at 5000K.
SPEC-20-CTUNE is 750lm at 1800K and 980lm at 5000K.
LED pitch figures refer to LEDs of a single colour.
Lumen figures above apply at 3000K-4000K colour selections.
SPEC-19.2-CTUNE is 620lm at 1800K and 850lm at 5000K.
SPEC-20-CTUNE is 750lm at 1800K and 980lm at 5000K.
Please take particular care when selecting LED strips, as not all options are available for all profiles. Please consult profile product pages on our website to check LED strip compatibility with each profile.
Other LED strip options may be available upon request.
All LED strip lumen values mentioned in the tables refer to source lumens (bare LED strip). Losses through diffuser/profile are not represented. Please consult photometric data for delivered lumen values.
Please note that for dimmable applications, our LED strips should be used with dimming controllers or drivers with a PWM frequency of 2000Hz or less in order to maintain warranty.
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
Product Information Pack
