Spec Series RGB+Twin White LED Strip

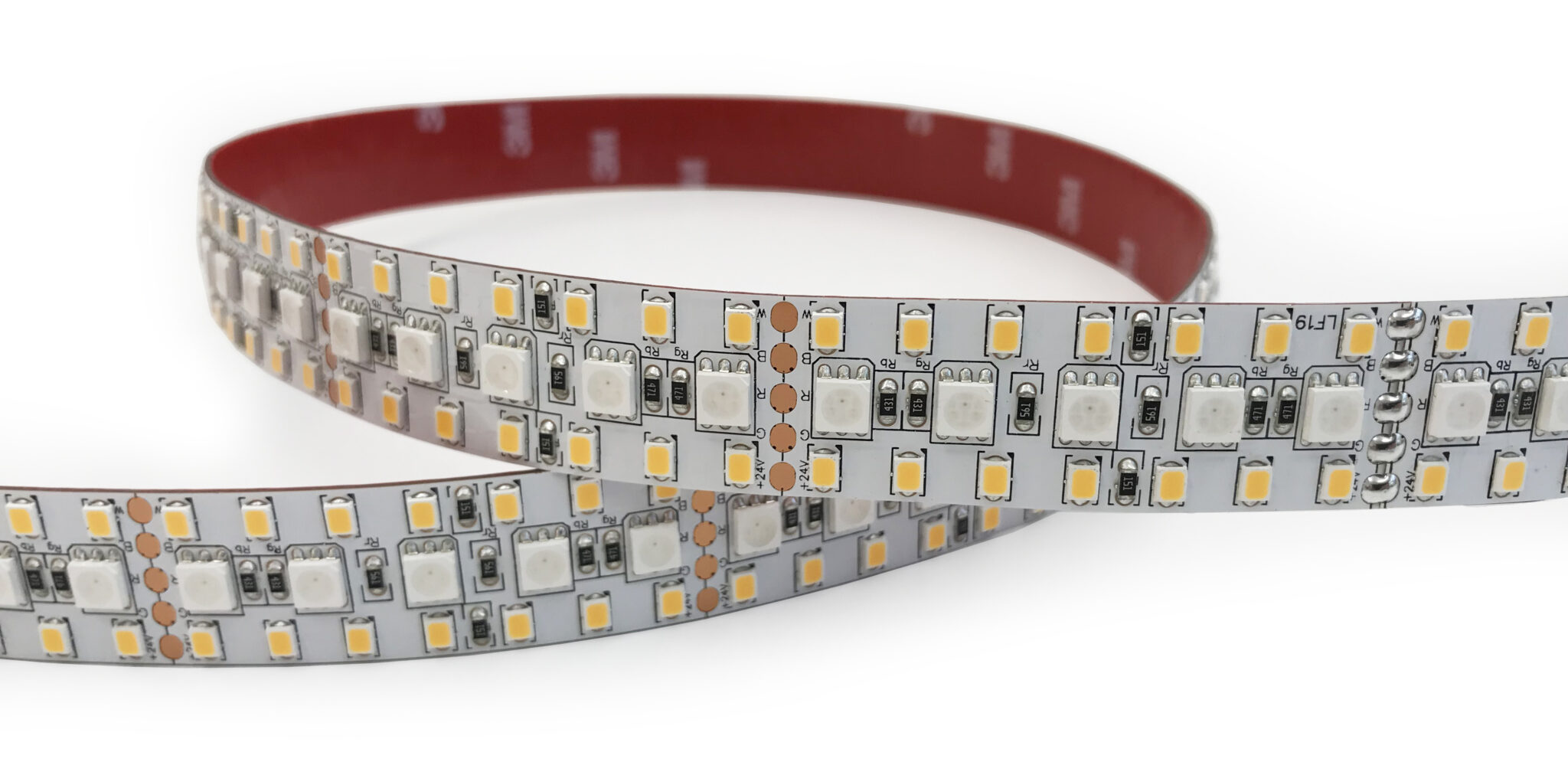

The totally unique Spec Series RGB+Twin White LED strip provides a double row of high lumen output white LED diodes and an independently controlled RGB row, all on the same PCB. Perfect for use with our ‘Flat Freddie 35’, ‘Downhill Dan 35’ or ‘Bob Each Way 65’ profiles.
Category: LED Strip
Product Information
5-year warranty
R9: 50+
PCB width: 20mm
Source life: L70 @ 50,000 hours
CRI: 90+
3SDCM
Input voltage: 24V DC
features
| Code | Watts per metre | Colour temp. | Lumens per metre | LEDs per metre | Max. length per feed | Protection |
|
SPEC-15-RGB-25-2X30
|
15W RGB, 25W White
|
RGB +3000K
|
1990
|
4M | IP20, IP65 | |
|
SPEC-15-RGB-25-2X40
|
15W RGB, 25W White
|
RGB +4000K | 2100 | 4M | IP20, IP65 |
Please Note
For IP67 versions, add “-IP67” to end of codes above. Example code SPEC-07-40-IP67.
IP54 and IP67 version reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10%. Colour temperature tolerance +/- 5%.
Please take particular care when selecting LED strips, as not all options are available for all profiles. Please consult profile product pages on our website to check LED strip compatibility with each profile.
Other LED strip options may be available upon request.
All LED strip lumen values mentioned in the tables refer to source lumens (bare LED strip). Losses through diffuser/profile are not represented. Please consult photometric data for delivered lumen values.
Please note that for dimmable applications, our LED strips should be used with dimming controllers or drivers with a PWM frequency of 2000Hz or less in order to maintain warranty.
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
Product Information Pack
