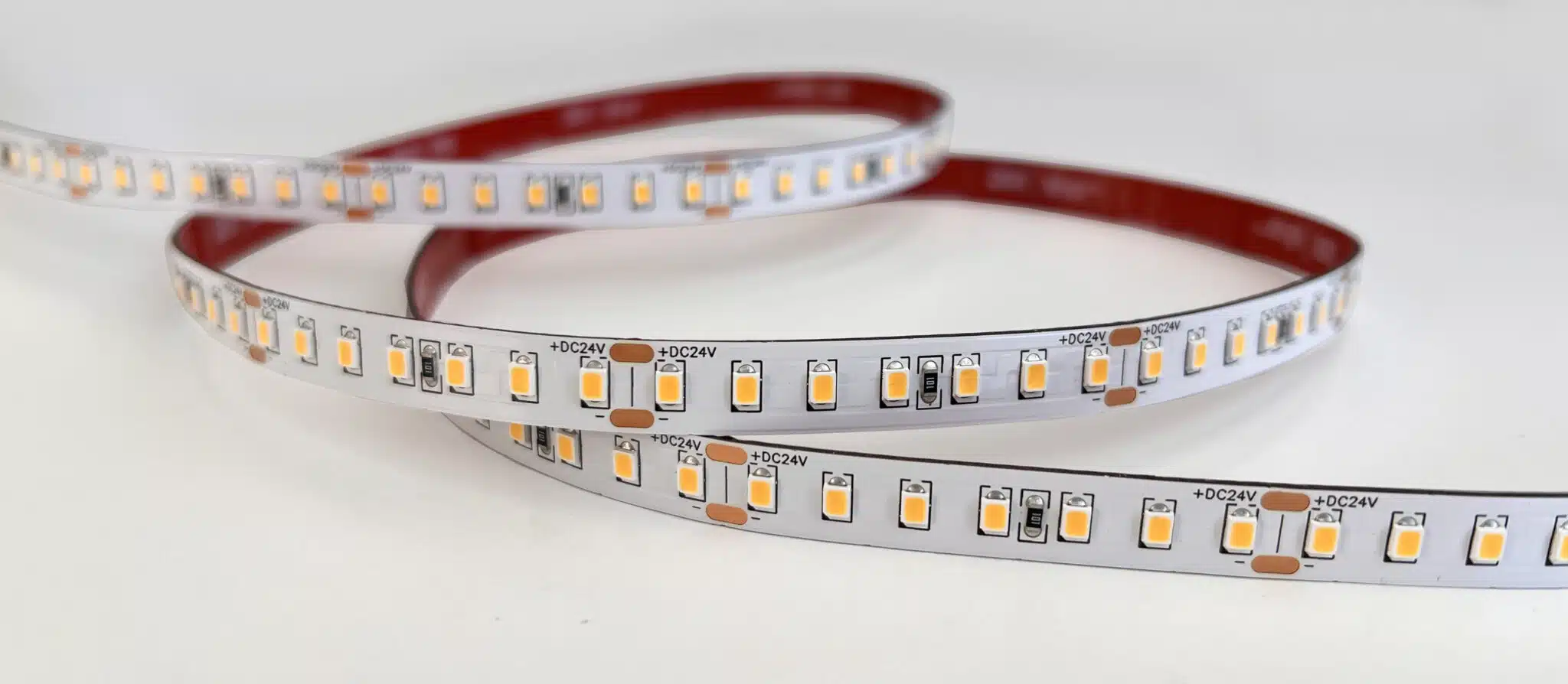

Spec Series General LED Strip
Spec Series General LED Strip is a cost-effective range of specification-level LED strip. High CRI and high R9 values provide rich, accurate colours and IP67 versions allow it to be used in bathrooms or exterior applications.
Category: LED Strip
Product Information
5-year warranty
R9: 50+
PCB width: 10mm
Source life: L70 @ 50,000 hours
CRI: 90+
3SDCM
Input voltage: 24V DC
features
| Code | Watts per metre | Colour temp. | Lumens per metre | LEDs per metre | Max. length per feed | Protection |
|
SPEC-07-30
|
7W
|
3000K | 760 | 128 | 5M | IP20, IP67 |
|
SPEC-07-40
|
7W
|
4000K
|
800
|
128 | 5M | IP20, IP67 |
|
SPEC-14.4-30-140
|
14.4W
|
3000K | 1150 | 140 | 5M | IP20, IP67 |
|
SPEC-14.4-40-140
|
14.4W
|
4000K
|
1180
|
140 | 5M | IP20, IP67 |
|
SPEC-15-30
|
15W
|
3000K | 1425 | 126 | 5M | IP20, IP67 |
|
SPEC-15-40
|
15W
|
4000K
|
1500
|
126 | 5M | IP20, IP67 |
Please Note
For IP67 versions, add “-IP67” to end of codes above. Example code: SPEC-14.4-30-140-IP67.
IP67 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Please take particular care when selecting LED strips, as not all options are available for all profiles. Please consult profile product pages on our website to check LED strip compatibility with each profile.
Other LED strip options may be available upon request.
All LED strip lumen values mentioned in the tables refer to source lumens (bare LED strip). Losses through diffuser/profile are not represented. Please consult photometric data for delivered lumen values.
Please note that for dimmable applications, our LED strips should be used with dimming controllers or drivers with a PWM frequency of 2000Hz or less in order to maintain warranty.
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
Product Information Pack
