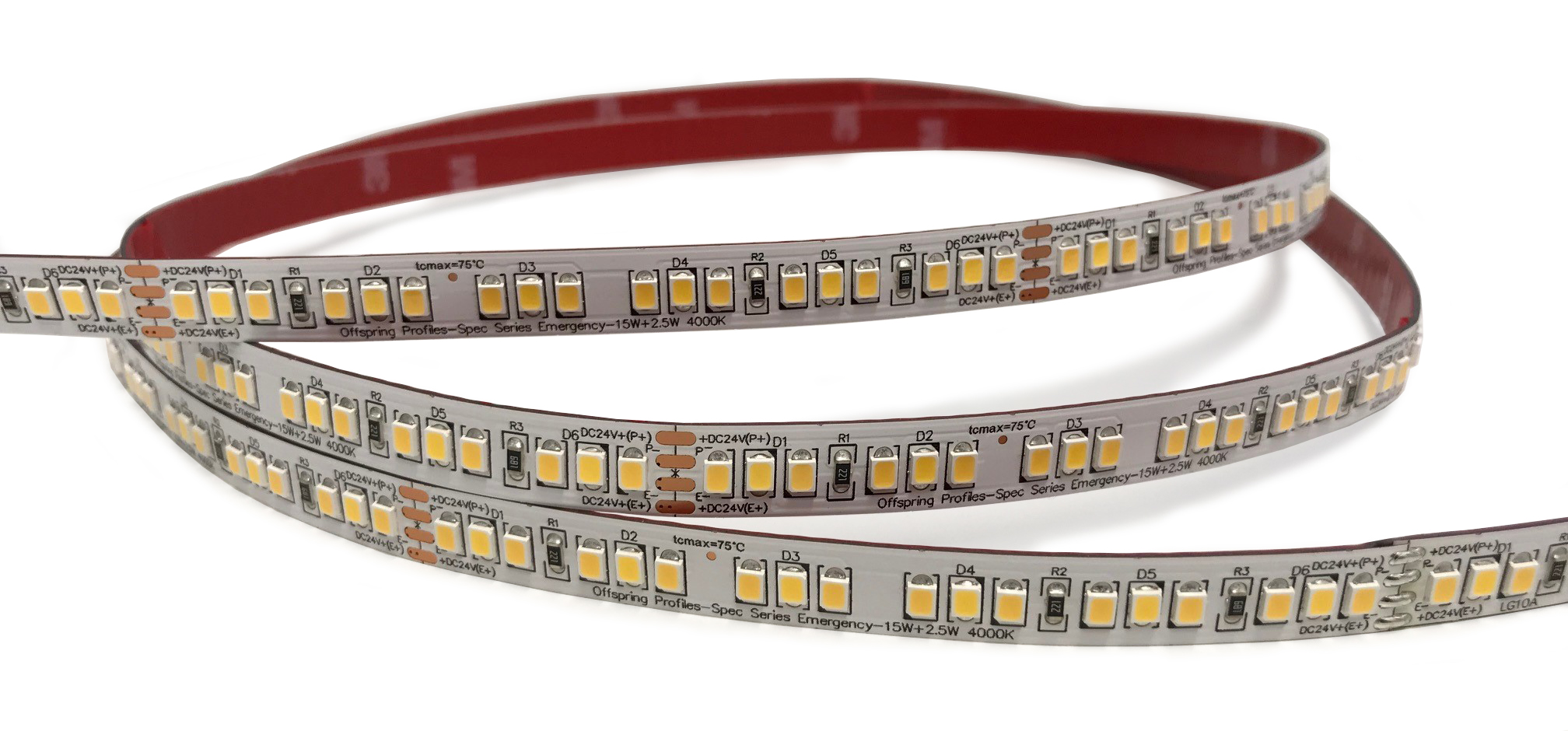

Spec Series Emergency LED Strip
Spec Series Emergency LED strip is a unique strip designed for use with our Richie Rail 17, Richie Rail 20 and Richie Rail 26 illuminated handrail series. A 1080 lumen per metre circuit provides the primary light source while a 180 lumen per metre circuit provides emergency lighting in a power cut.
Category: LED Strip
Product Information
5-year warranty
R9: 50+
PCB width: 10mm
Source life: L70 @ 50,000 hours
CRI: 90+
3SDCM
Input voltage: 24V DC
features
| Code | Watts per metre | Colour temp. | Lumens per metre | LEDs per metre | Max. length per feed | Protection |
| SPEC-15-30-2.5-40-EME |
15W primary, 2.5W emergency
|
3000K primary, 4000K emergency | 1025 primary, 180 emergency | 180 | 5M | IP20, IP67 |
|
SPEC-15-40-2.5-40-EME
|
15W primary, 2.5W emergency
|
4000K primary, 4000K emergency
|
1080 primary, 180 emergency
|
180 | 5M | IP20, IP67 |
Please Note
For IP67 versions, add “-IP67” to end of codes above. Example code: SPEC-15-40-2.5-40-EME-IP67.
IP67 versions reduce above stated lumen figures by approximately 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Other colour temperatures available on special order.
Please take particular care when selecting LED strips, as not all options are available for all profiles. Please consult profile product pages on our website to check LED strip compatibility with each profile.
Other LED strip options may be available upon request.
All LED strip lumen values mentioned in the tables refer to source lumens (bare LED strip). Losses through diffuser/profile are not represented. Please consult photometric data for delivered lumen values.
Please note that for dimmable applications, our LED strips should be used with dimming controllers or drivers with a PWM frequency of 2000Hz or less in order to maintain warranty.
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
