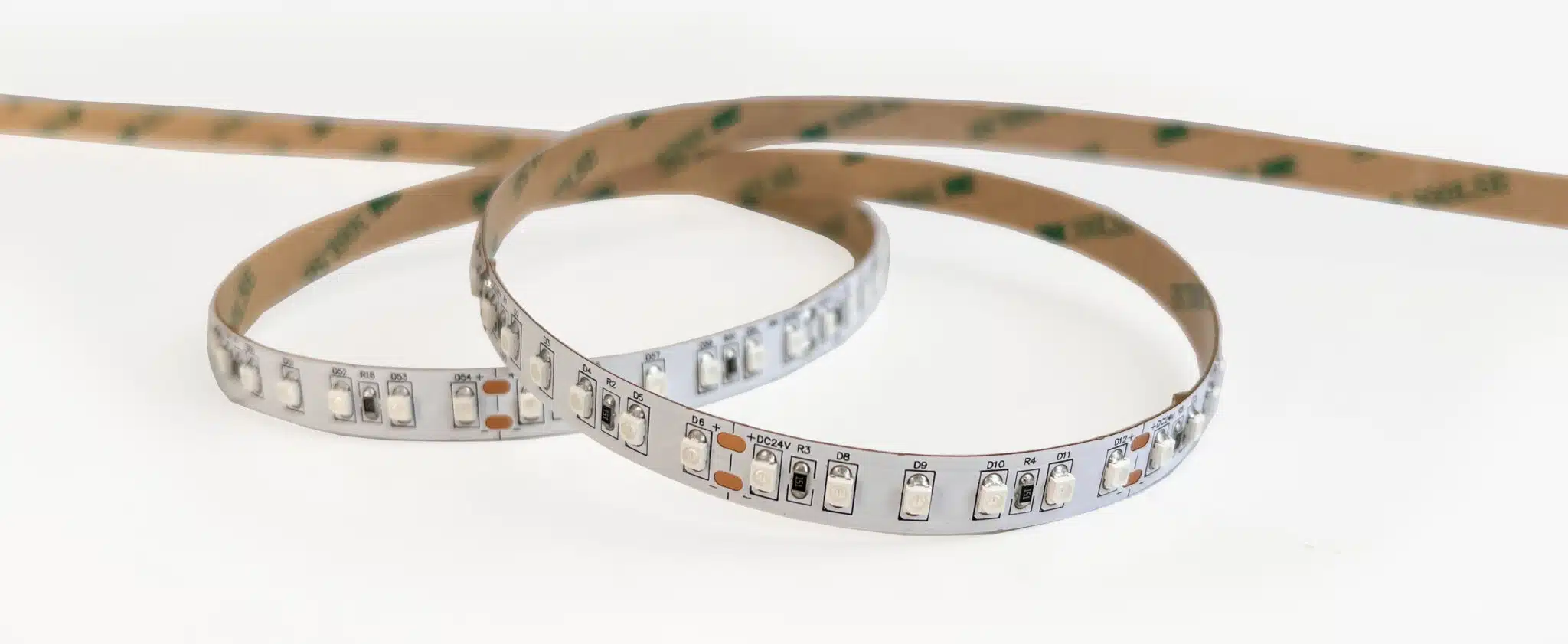

Spec Series Colour LED Strip
Spec Series Colour LED Strip offers fixed-colour options of red, green and blue. IP65 versions are great for adding colour to exterior applications.
SKU: COB
Category: LED Strip
Product Information
5-year warranty
PCB width: 10mm
Input voltage: 24V DC
Source life: L70 @ 50,000 hours
features
| Code | Watts per metre | Colour temp. | Lumens per metre | LEDs per metre | Max. length per feed | Protection |
| SPEC-9.6-R | 9.6W | RED | 240 | 120 | 5M | IP20, IP65 |
| SPEC-9.6-G | 9.6W | GREEN | 720 | 120 | 5M | IP20, IP65 |
| SPEC-9.6-B | 9.6W | BLUE | 180 | 120 | 5M | IP20, IP65 |
Please Note
For IP65 versions, add “-IP65” to end of codes above. Example code: SPEC-9.6-G-IP65.
IP65 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Please take particular care when selecting LED strips, as not all options are available for all profiles. Please consult profile product pages on our website to check LED strip compatibility with each profile.
Other LED strip options may be available upon request.
All LED strip lumen values mentioned in the tables refer to source lumens (bare LED strip). Losses through diffuser/profile are not represented. Please consult photometric data for delivered lumen values.
Please note that for dimmable applications, our LED strips should be used with dimming controllers or drivers with a PWM frequency of 2000Hz or less in order to maintain warranty.
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
Product Information Pack
