Sonny side up 22 prod

Sonny Side Up 22

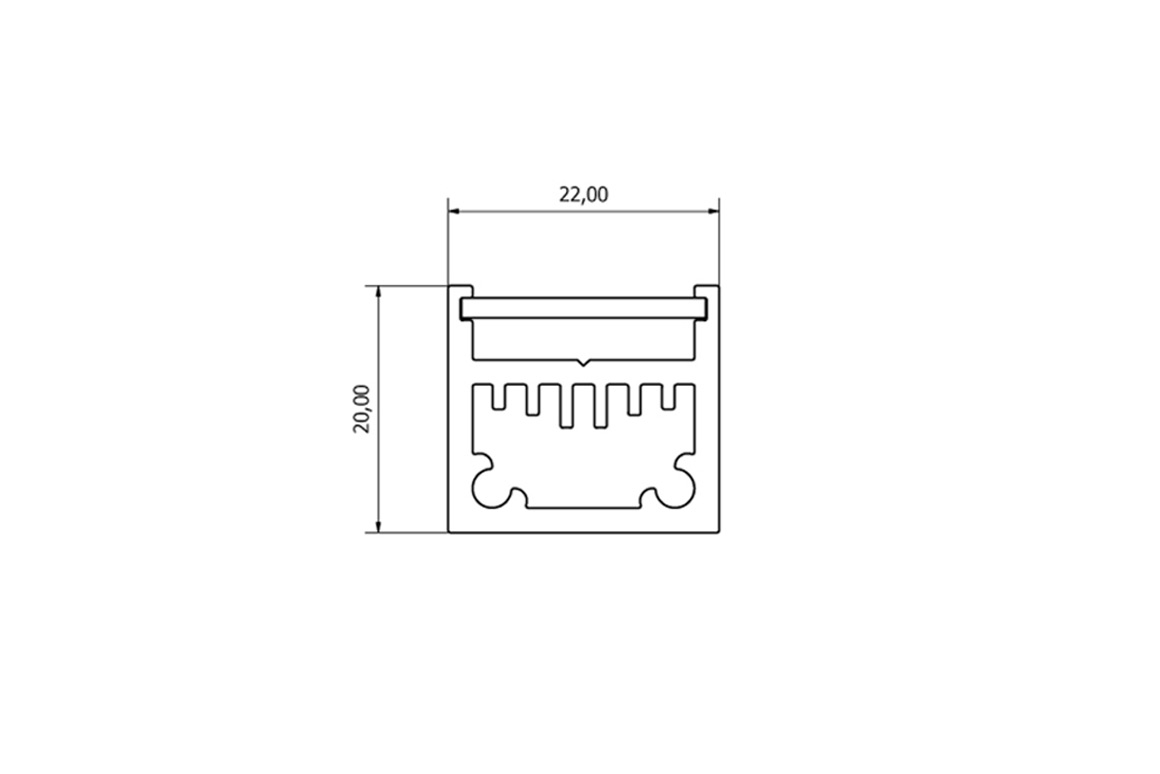

Sonny Side Up 22 is a purpose-designed powerful uplight profile. Don’t be fooled by its petite size as it packs a mighty punch of light up to an amazing 2650 lumens per metre. Both wire and rod suspensions are available for the Sonny Side Up 22 extrusion.

SKU: SSU22 Categories: ,
Share

Product Description

Application

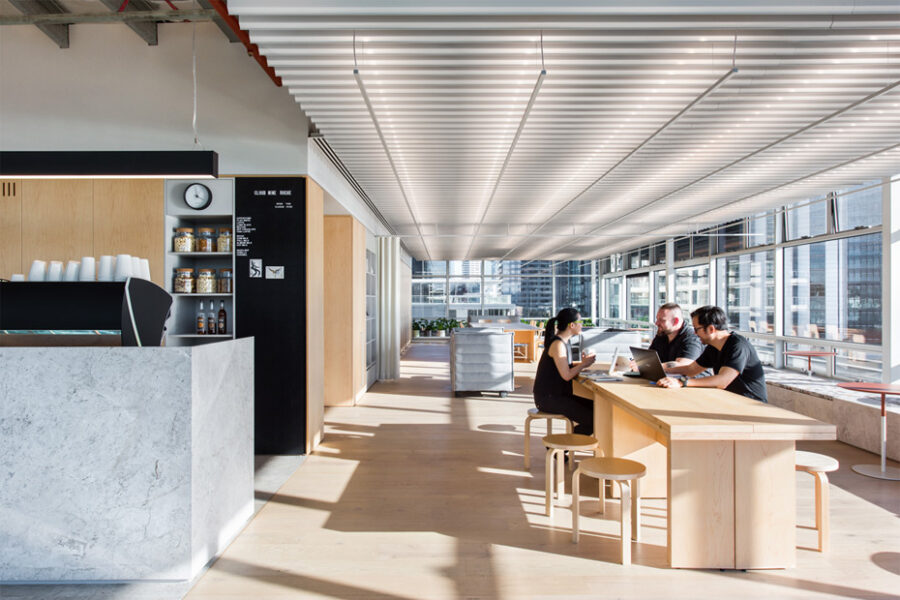

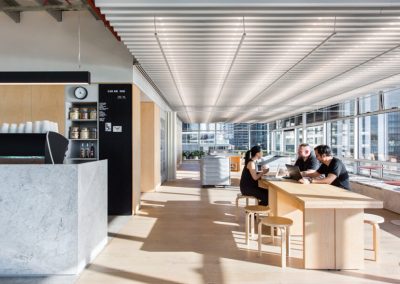

Reception counters, meeting rooms, commercial offices.

Installation

Interior only.

Material

Aluminium body, polycarbonate diffuser, aluminium end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffusor options

Clear polycarbonate

led strip options
features
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Provides heat sinking for high wattage LED strips.
  • Dust & grease protection.
mounting options
  • Rod Suspended
  • Wire Suspended
finish options
  • Natural Silver Anodised
  • Textura White Powder Coat
  • Textura Black Powder Coat
  • Custom Powder Coat Colours
  • Product Information
    Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
  • Download
    Product Information Pack
    Click to view @ Dropbox.com

Joining & Mounting Accessories

Straight Joiner

JN-ST-18

90 Degree Joiner

JN-90-18

Suspension rod
Suspension Rod – 0.5m, 1m, 2m

ROD-0.5M / ROD-1M / ROD-2M

Surface mounted rod suspension kit
Surface Mounted Rod Suspension Kit (Rod Not Incl.)

SRK-9-S (SILVER) / SRK-9-W (WHITE) / SRK-9-B (BLACK)

Recessed rod suspension kit
Recessed Rod Suspension Kit (Rod Not Incl.)

SRK-4-S (SILVER) / SRK-4-W (WHITE) / SRK-4-B (BLACK)

Cable Base 60, Recessed

CB-SSU22-60-R-S (SILVER)/ CB-SSU22-60-R-W (WHITE)

Cable Base 80, Surface Mount

CB-SSU22-80-SM-S (SILVER) / CB-SSU22-80-SM-W (WHITE)

Wire suspension
Wire Suspension – 1M, 2M, 4M

SWK-4-1M / SWK-4-2M / SWK-4-4M
