Nellie Neon 23
Nellie Neon is a range of flexible LED Neon products, including white and RGBW LED options. The Nellie Neon 23 is a RGBW “dual-bend” neon that can be bent in two axes which allows for curves in two planes – great for complex applications such as curved joinery or walls. With cut increments at 62.5mm and various mounting accessories, Nellie Neon is incredibly versatile.
Category: Surface Mounted, Neon
Product Information
Material
Silicon casing
Power Supply
24V DC – remote driver options ranging from 6W up to 320W.
Dimming
Various options available including Casambi, DALI, 0-10V, DMX – please enquire.
LED Options
Other LED strip options including other optics may be available upon request. Please consult your local distributor for further information
Mounting Options
Surface Mounted
Profile Finish Options
Natural Silver Anodised
Mannex Appliance White Powder Coat
Mannex Black Powder Coat
Custom Powder Coat Colours
features
| Code | Watts per metre | Colour temp. | Lumens per metre | Cutting increments | Beam | Max. length per feed | Protection |
|
NN23-18-RGBW
|
18W
|
RGB+3000k
|
190 @ 3000k, 550 with all channels on
|
62.5mm | 120° | 5M | IP65/IP67* & IK06 |
Please Note
Wattage and lumen tolerance +/- 10%. Colour temperature tolerance +/- 5%.
*IP65 rating is achieved with end cap and feed accessories below. IP67 rating is achieved with die-cast factory ends and feeds. Please allow a longer lead time for die-cast ends. Please consult your nearest distributor for lead times.
Product Information Pack
Request Sample
Joining & Mounting Accessories

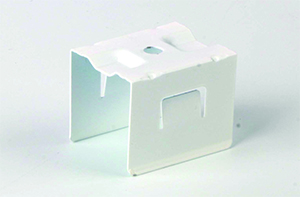

Mounting Clip
NN23-MC

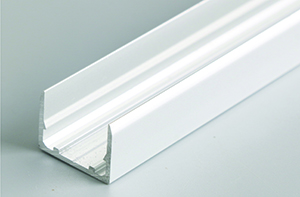

Aluminium mounting profile
NN23-MP-2M

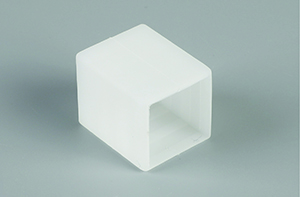

End cap
NN23-EC

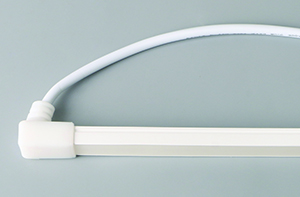

End cap with feed & connector, side feed or top feed
NN23-TF (top feed) / NN23-SF (side feed)

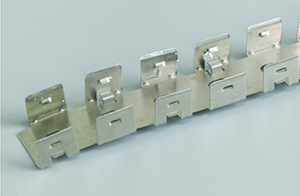

Flexible stainless steel mounting profile
NN23-FMP
