Nellie Neon 16
The Nellie Neon 16 is a “dual-bend” white-light neon that can be bent in two axes which allows for curves in two planes – great for complex applications such as curved joinery or walls. With cut increments at 50mm and various mounting accessories, Nellie Neon is incredibly versatile.
Category: Surface Mounted, Neon
Product Information
Interior and exterior
Material
Silicon casing
Power Supply
24V DC – remote driver options ranging from 6W up to 320W.
Dimming
Various options available including Casambi, DALI, 0-10V, DMX – please enquire.
Mounting Options
Surface Mounted
Profile Finish Options
Natural Silver Anodised
Mannex Appliance White Powder Coat
Mannex Black Powder Coat
Custom Powder Coat Colours
features
| Code | Watts per metre | Colour temp. | Lumens per metre | Cutting increments | Beam | Max. length per feed | Protection |
|
NN16-14-27
|
14W
|
2700K
|
640
|
50mm | 120° | 10M | IP65/IP67* & IK06 |
|
NN16-14-30
|
14W
|
3000K | 675 | 50mm | 120° | 10M | IP65/IP67* & IK06 |
|
NN16-14-40
|
14W
|
4000K
|
710
|
50mm | 120° | 10M | IP65/IP67* & IK06 |
Please Note
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
that can be bent in two axes which allows for curves in two planes – great for complex applications such as curved joinery or walls. With cut increments
at 50mm and various mounting accessories, Nellie Neon is incredibly versatile.
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
Product Information Pack
Request Sample
Joining & Mounting Accessories

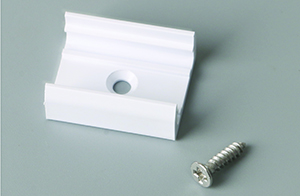

Mounting Clip
NN16-MC
Aluminium mounting profile
NN16-MP-2M
End cap
NN16-EC
End cap with feed & connector, side feed or top feed
NN16-TF (top feed) / NN16-SF (side feed)
Flexible stainless steel mounting profile
NN16-FMP
