Nellie Neon 10

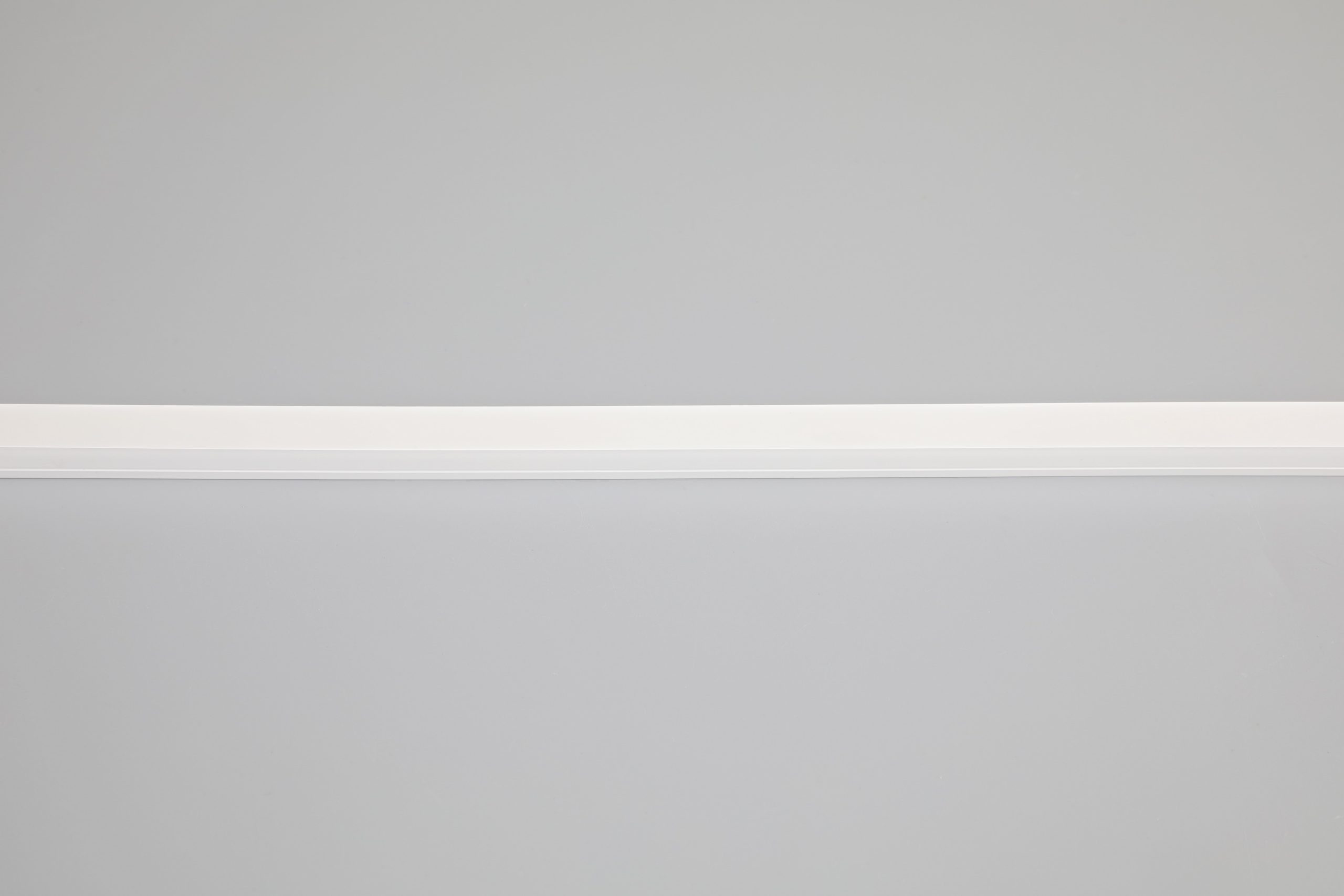

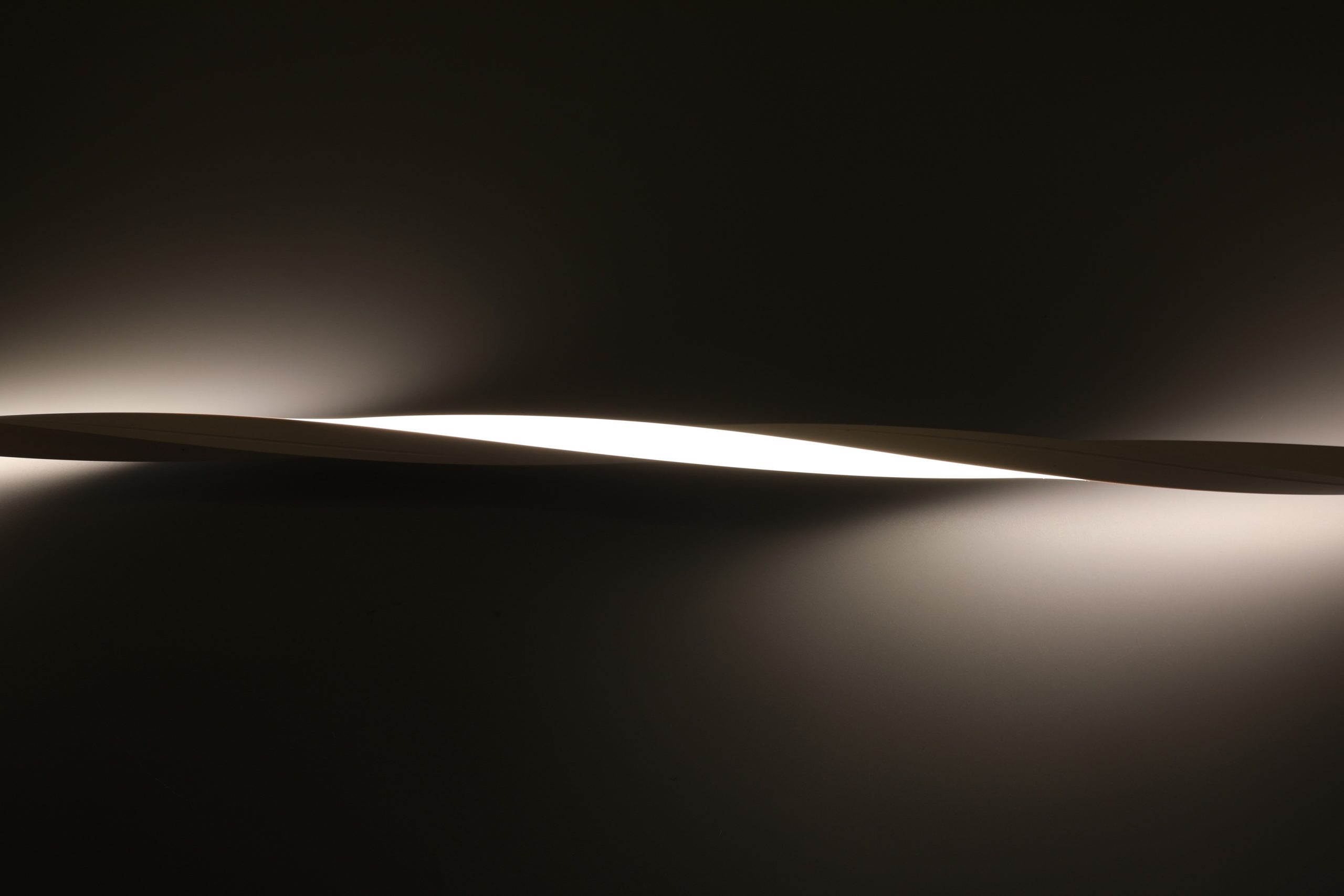

Nellie Neon is a range of flexible LED neon products, including white and RGBW LED options. The Nellie Neon 10 is a “dual-bend” white-light neon that can be bent in two axes which allows for curves in two planes – great for complex applications such as curv ed joinery or walls. With no minimum cut increments and various mounting accessories, Nellie Neon 10 is incredibly versatile.
Category: Surface Mounted, Neon
Product Information
Interior and exterior
Material
Silicon casing
Power Supply
24V DC – remote driver options ranging from 6W up to 320W.
Dimming
Various options available including Casambi, DALI, 0-10V, DMX – please enquire.
Mounting Options
Surface Mounted
Profile Finish Options
Natural Silver Anodised
Mannex Appliance White Powder Coat
Mannex Black Powder Coat
Custom Powder Coat Colours
features
| Code | Watts per metre | Colour temp. | Lumens per metre | Beam angle | Cutting length | Max. length per feed | Protection |
|
NN10-8-27
|
8W
|
2700K
|
430
|
120° | Free-cut | 5M | IP65/IP67, IK06 |
|
NN10-8-30
|
8W
|
3000K | 455 | 120° | Free-cut | 5M | IP65/IP67, IK06 |
|
NN10-8-40
|
8W
|
4000K
|
480
|
120° | Free-cut | 5M | IP65/IP67, IK06 |
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
Product Information Pack
Request Sample
Joining & Mounting Accessories
Mounting Clip
NN10-MC
Aluminium mounting profile
NN10-MP-2M
End cap
NN10-EC
End cap with feed & connector, side feed or top feed
NN10-TF (top feed) / NN10-SF (side feed)
Flexible stainless steel mounting profile
NN10-FMP
