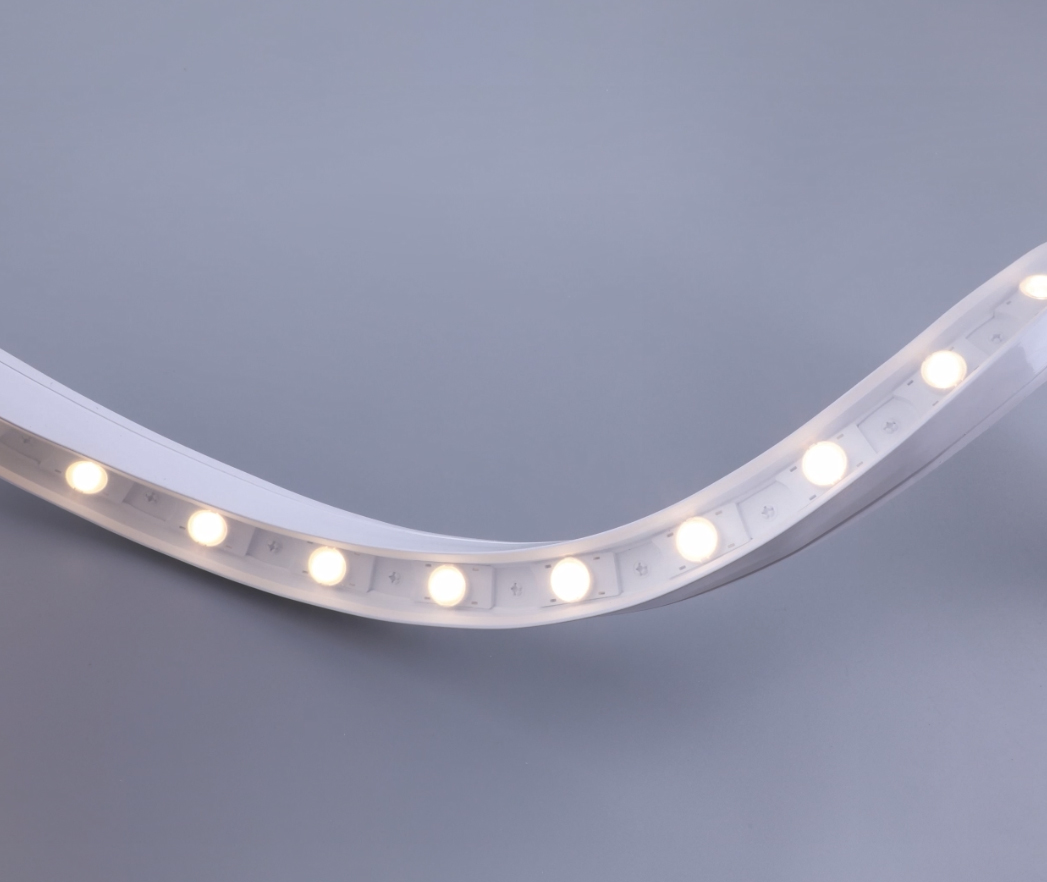

GRACIE GRAZER 23

The Gracie Grazer Series is an award-winning and patented LED strip system with built-in lens optics offering ultimate control for wall grazing. Various mounting accessories and the ability to bend in two axes makes the Grazer Series incredibly versatile. Gracie Grazer 23 is available in 2700K, 3000K or 4000K.

SKU: GG23-18 Category:
Share

Product Description

Installation

Interior and exterior

Material

Silicon casing, plastic optics.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

Dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

FEATURES
  • Wall grazing optics
  • iF Design Award
  • Black or white outer silicon casing
  • 2700K, 3000K or 4000K colour temperatures
MOUNTING OPTIONS
  • Ceiling Mounted
  • Surface Mounted
FINISH OPTIONS
  • Natural Silver Anodised
  • Textura White Powder Coat
  • Textura Black Powder Coat
  • Custom Powder Coat Colours
DIFFUSER OPTIONS
  • 30° wall grazing optic
CODEWATTS P/MCOLOURLUMENS P/MBEAMLED P/MCASE COLOURCUTTING LENGTHMAX. RUN PER FEEDPROTECTION
GG23-18-27-WH2700K1710
GG23-18-30-WH18W3000K180030°24White250mm5MIP65 / IK07
GG23-18-40-WH4000K1890
GG23-18-27-BL2700K1520
GG23-18-30-BL18W3000K160030°24Black250mm5MIP65 / IK07
GG23-18-40-BL4000K1680
Please Note

Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%

  • Product Information
    Download the most up to date product information: Data Sheet and Installation Instructions
  • Download
    Product Information Pack
    Click to view @ Dropbox.com

Joining & Mounting Accessories

Mounting Clip

GG23-MC

Flexible stainless steel mounting profile

GG23-FMP

Aluminium mounting profile

GG23-MP

Adjustable mounting bracket (for aluminium mounting profile)

GG23-MBADJ

End cap with feed & connector, side feed or top feed

GG23-TD-WH (white, top feed) / GG23-TF-BL (black, top feed) / GG23-SF-WH (white, side feed) / GG23-SF-1-BL (black, side feed)

End cap

GG23-EC-WH (white) / GG23-EC-BL (black)

Connector cable

GG23-CC-WH (white)
GG23-CC-BL (black)
