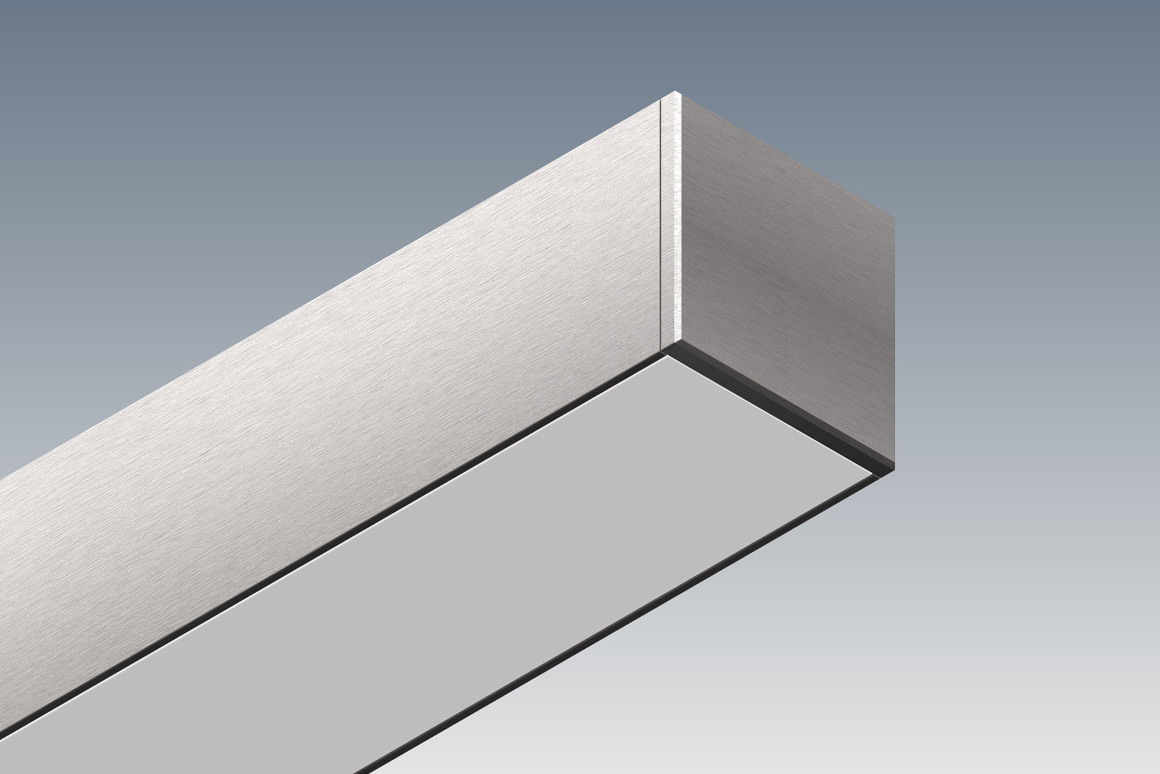

Flat Freddie 30

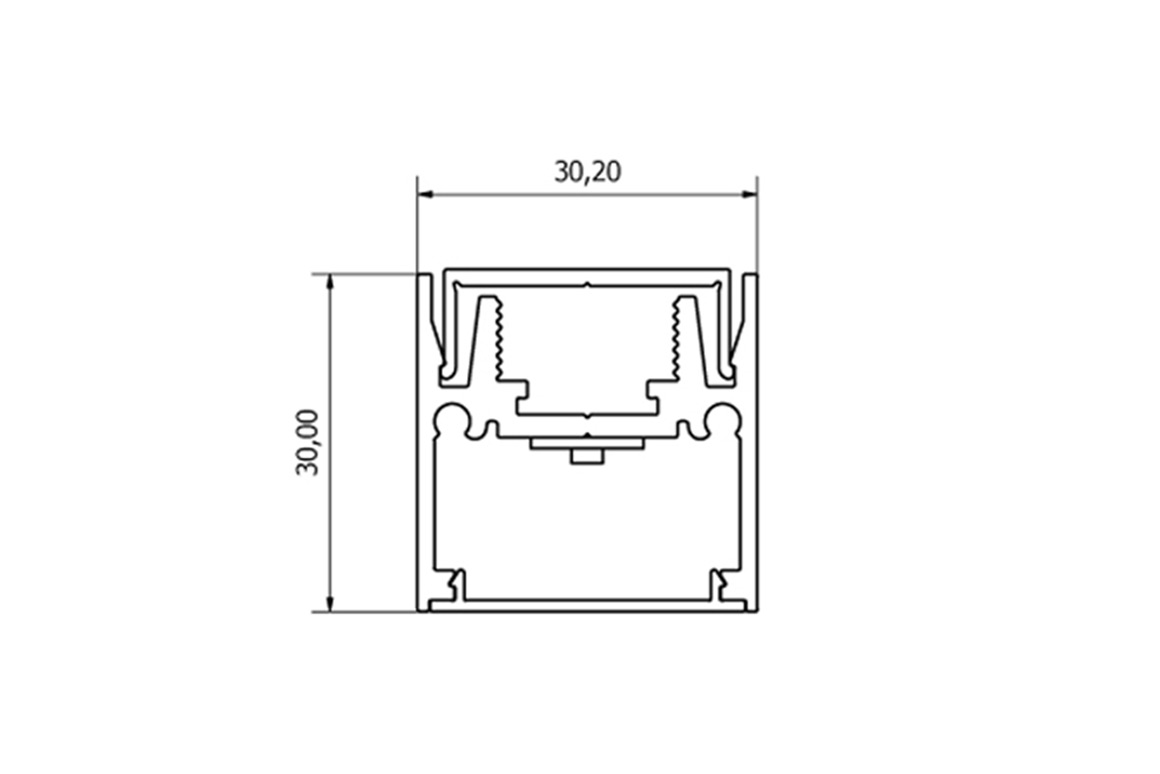

The Flat Freddie 30 extrusion is a close cousin of Downhill Dan 30, but with a squarer profile for a more architectural look. It also features a more efficient diffuser for maximum output. Utilizing up to a 26W per metre LED strip, the profile is ideal for applications where maximum light output is key. A versatile system suitable for various mounting options, Flat Freddie 30 can be surface mounted, recessed and suspended. Both wire and rod suspension options are available and the cowling accessory for plastered ceilings and walls creates a beautiful trimless finish.

SKU: FF30 Categories: , , , ,
Share

Product Description

Application

General downlighting in kitchens, living rooms, dining rooms, reception counters.

Installation

Interior and exterior (with IP65 or IP67 rated LED strip).

Material

Aluminium body, PMMA diffuser, aluminium end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Satin PMMA, Clear Polycarbonate

led strip options
features
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
  • Provides heat sinking for high wattage LED strips.
  • Dust and grease protection.
mounting options
  • Surface Mounted
  • Recessed
  • Rod Suspended
  • Wire Suspended
  • Wall Mounted
finish options
  • Natural Silver Anodised
  • Textura White Powder Coat
  • Textura Black Powder Coat
  • Custom Powder Coat Colours.
  • Product Information
    Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
  • Download
    Product Information Pack
    Click to view @ Dropbox.com

Joining & Mounting Accessories

Straight Joiner

JN-ST-12

90 Degree Joiner

JN-90-12

135 Degree Joiner

JN-135-12

120 Degree Joiner

JN-120-12

Suspension rod
Suspension Rod – 0.5m, 1m, 2m

ROD-0.5M / ROD-1M / ROD-2M

Surface mounted rod suspension kit
Surface Mounted Rod Suspension Kit (Rod Not Incl.)

SRK-6-S (SILVER) / SRK-6-W (WHITE) / SRK-6-B (BLACK)

Recessed rod suspension kit
Recessed Rod Suspension Kit (Rod Not Incl.)

SRK-1-S (SILVER) / SRK-1-W (WHITE) / SRK-1-B (BLACK)

Cable Base 60, Recessed

CB-60-R-S (SILVER) / CB-60-R-W (WHITE)

Cable Base 80, Surface Mount

CB-80-SM-S (SILVER) / CB-80-SM-W (WHITE)

Wire suspension
Wire Suspension – 1M, 2M, 4M

SWK-1-1M / SWK-1-2M / SWK-1-4M

Wall bracket
Wall Bracket

WB-30

Mounting clip
Mounting Clip

MC-30

Recess Cowling for Plasterboard – 2m Long

C-30-I

Recess Cowling End Cap for Plasterboard

C-30-EC-I
