Downhill Dan 22

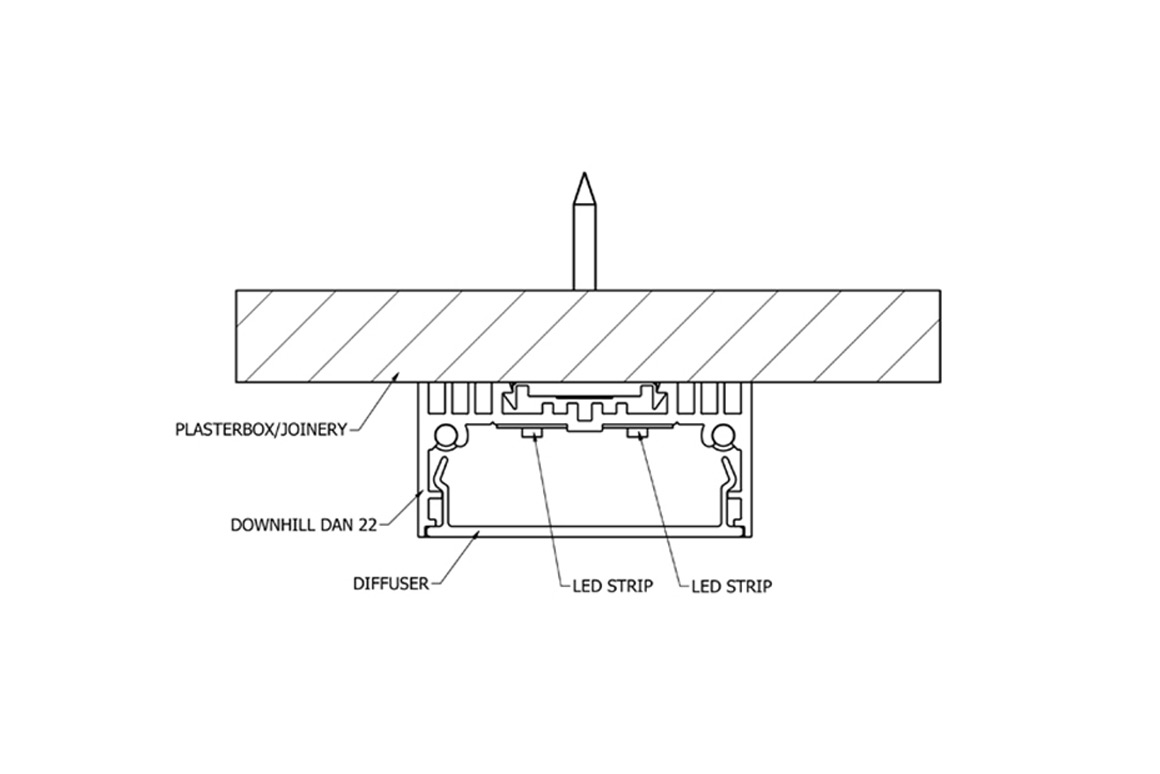

The Downhill Dan 22 profile is our most powerful downlighting system. Utilizing two LED ribbon strips mounting in parallel, this profile is ideal for applications where maximum output is key. Both wire and rod suspension options are available and a simple method of recessing into plasterboard ceilings provides a clean, trimless look.

Product Description

Application

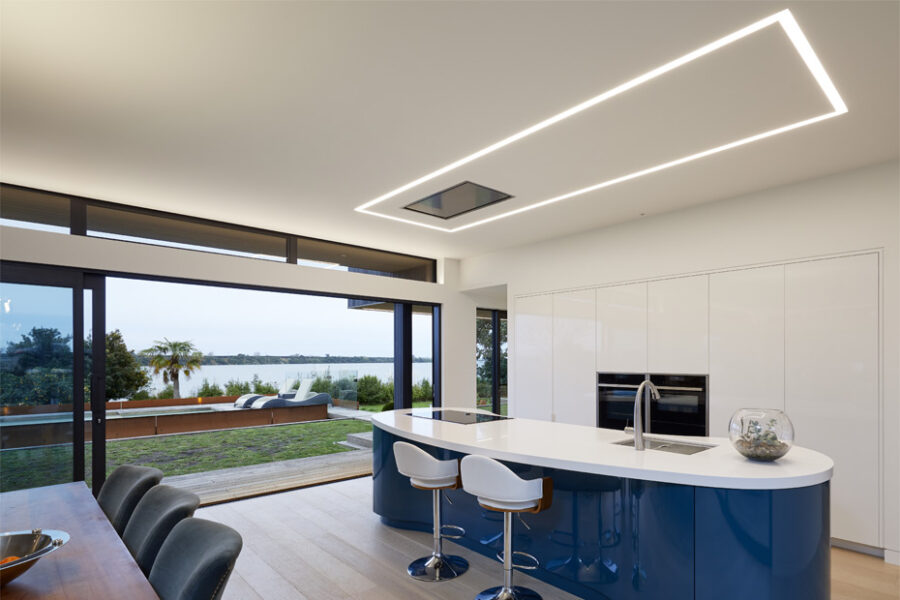

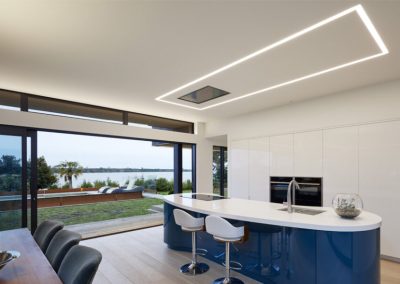

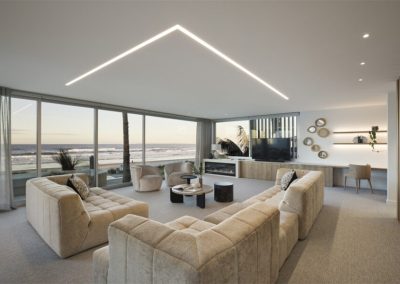

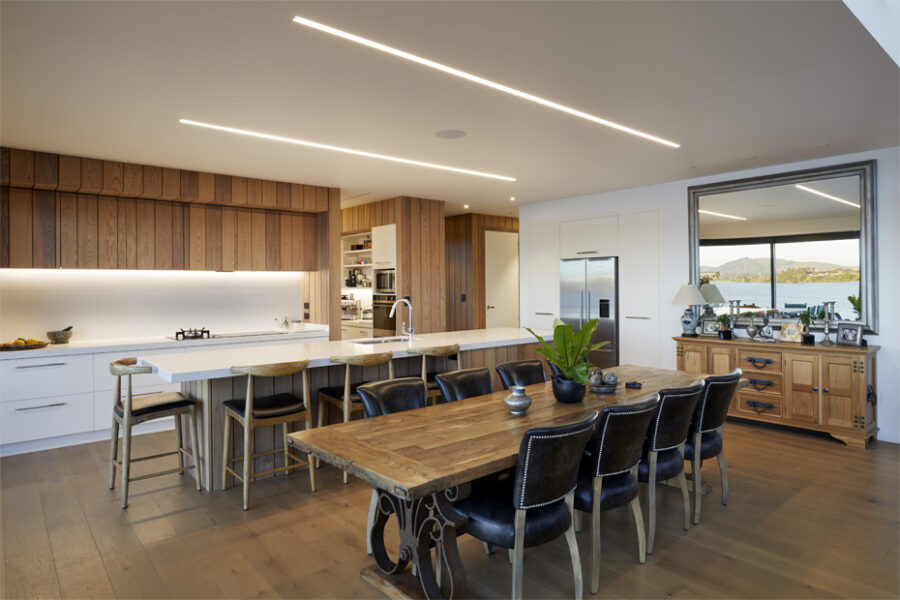

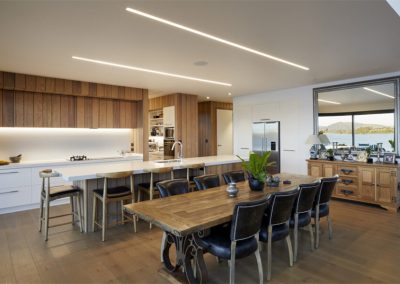

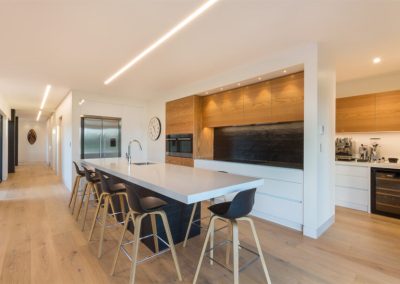

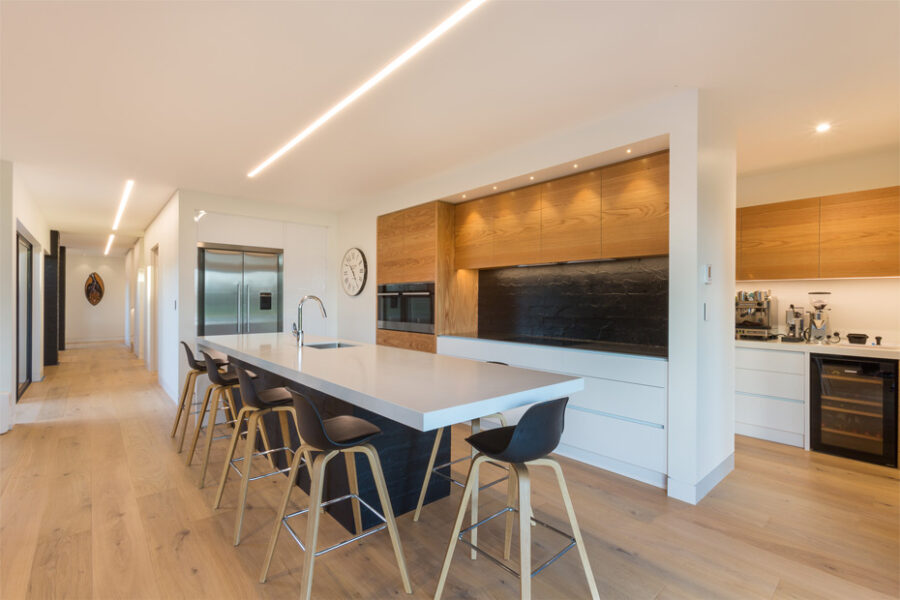

General downlighting in kitchens, living rooms, dining rooms, reception counters.

Installation

Interior and exterior (with IP65 or IP67 rated LED strip).

Material

Aluminium body, PMMA diffuser, aluminium end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Satin PMMA

led strip options

View here

features

Customised lengths and configurations, made to measure.
New Zealand designed and made.
Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
Provides heat sinking for high wattage LED strips.
Dust and grease protection.

mounting options

Surface Mounted

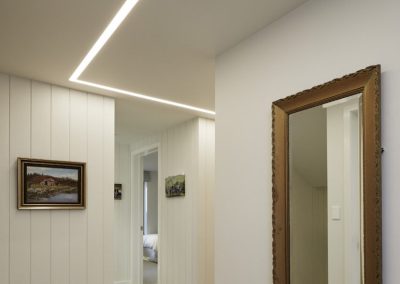

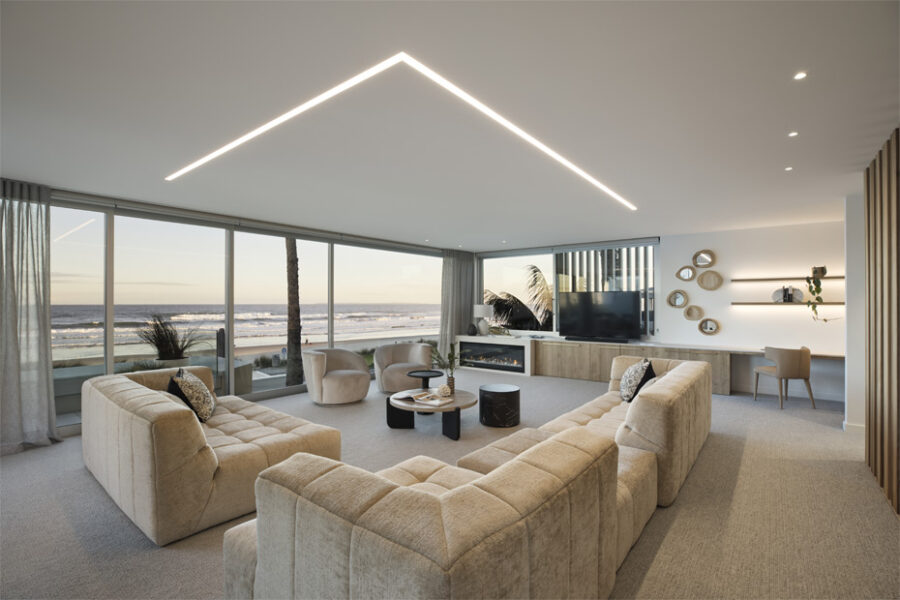

Recessed
Rod Suspended
Wire Suspended

finish options

Natural Silver Anodised
Textura White Powder Coat
Textura Black Powder Coat
Custom Powder Coat Colours.

Product Information
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
Download
Product Information Pack
Click to view @ Dropbox.com

Joining & Mounting Accessories

Straight Joiner

JN-ST-23

90 Degree Joiner

JN-90-23

Suspension Rod – 0.5m, 1m, 2m

ROD-0.5M / ROD-1M / ROD-2M

Surface Mounted Rod Suspension Kit (Rod Not Incl.)

SRK-7-S (SILVER) / SRK-7-W (WHITE) / SRK-7-B (BLACK)

Recessed Rod Suspension Kit (Rod Not Incl.)

SRK-2-S (SILVER) / SRK-2-W (WHITE) / SRK-2-B (BLACK)

Cable Base 60, Recessed

CB-60-R-S (SILVER) / CB-60-R-W (WHITE)

Cable Base 80, Surface Mount

CB-80-SM-S (SILVER) / CB-80-SM-W (WHITE)

Wire Suspension – 1M, 2M, 4M

SWK22-1M / SWK22-2M / SWK22-4M

Recess Cowling for Plasterboard – 2m Long

C-22-I

Recess Cowling End Cap for Plasterboard

C-22-EC-I
