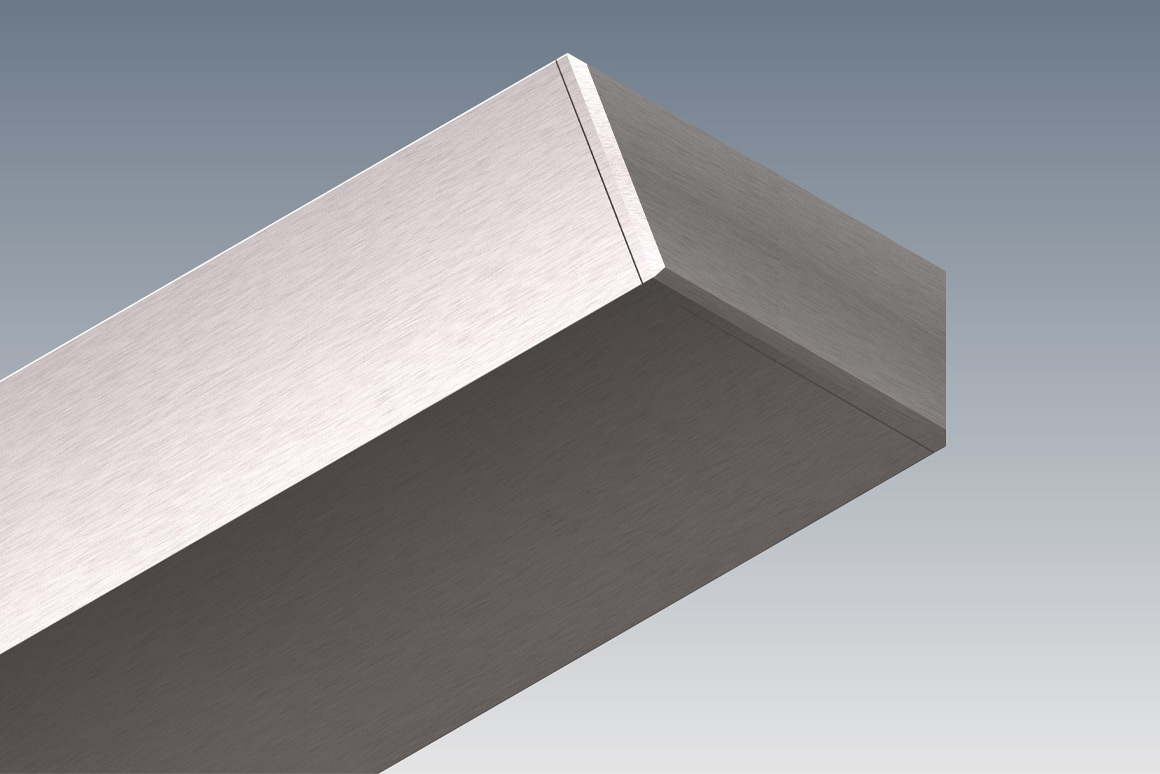

Dado dave 20 prod

Dado Dave 20

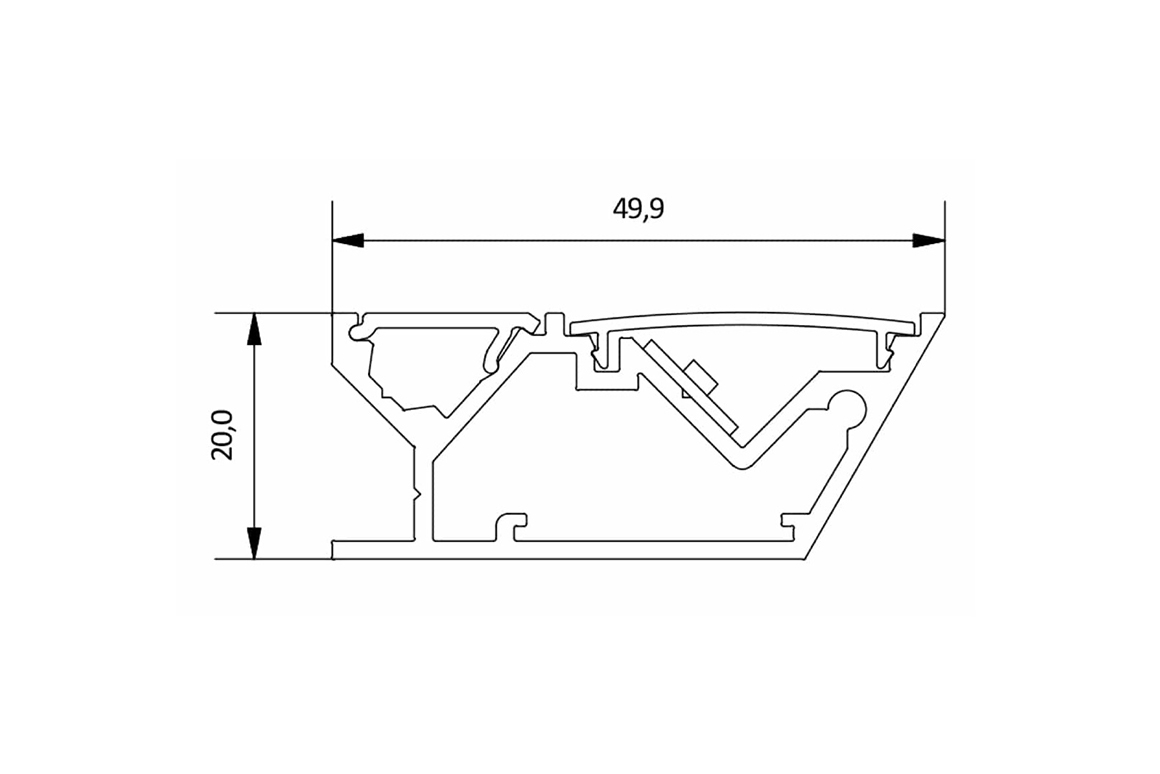

Dado Dave 20 is a sleek, architectural profile designed to provide high-output up lighting. The LED strip is positioned to maximise asymmetric distribution which offers smooth light out into the space. The concealed light source keeps glare to a minimum, while up to 2650 lumens per metre LED strip means it packs a punch. The extrusion is designed for super-quick screw-fixing, while a clip-in aluminium lid covers the screw heads and provides a smooth, easy-to-clean surface. For applications where Dado Dave 20 is being mounted flush with the bottom of a bulkhead, then the mounting adaptor can be used to reverse the direction of the mounting screw.

SKU: DAD20 Categories: ,
Share

Product Description

Application

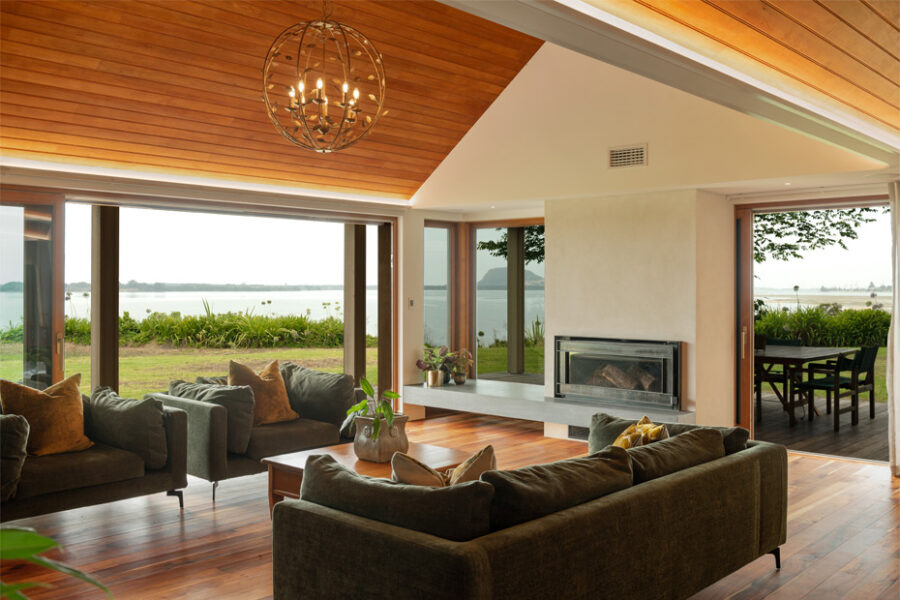

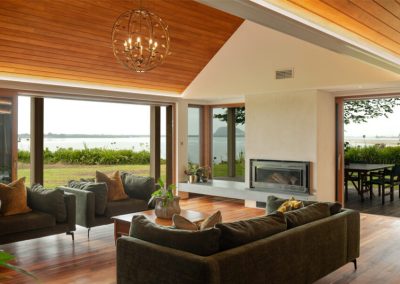

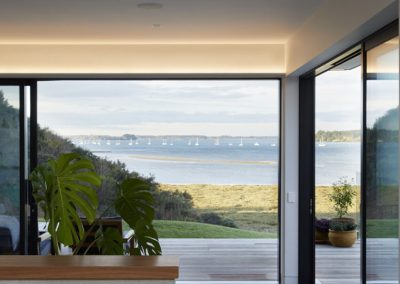

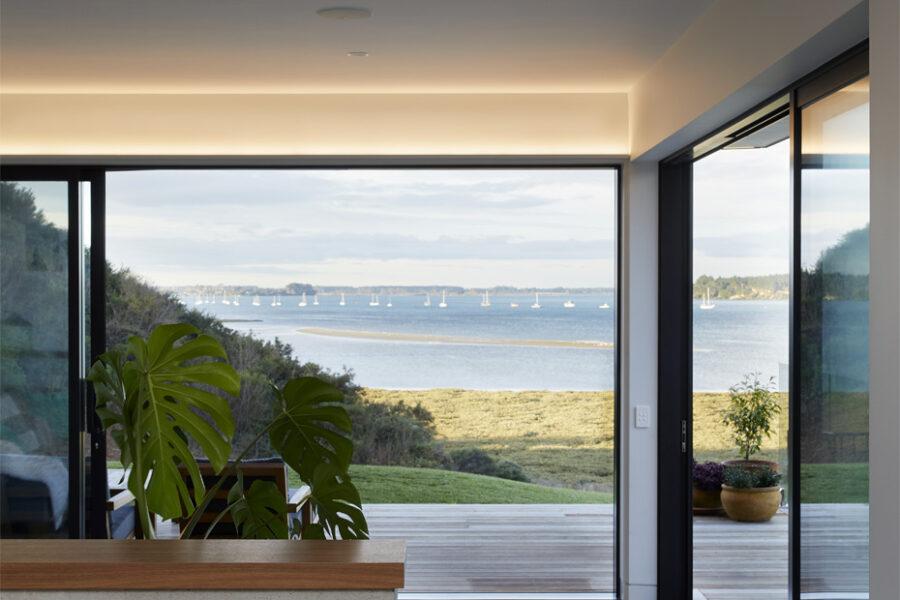

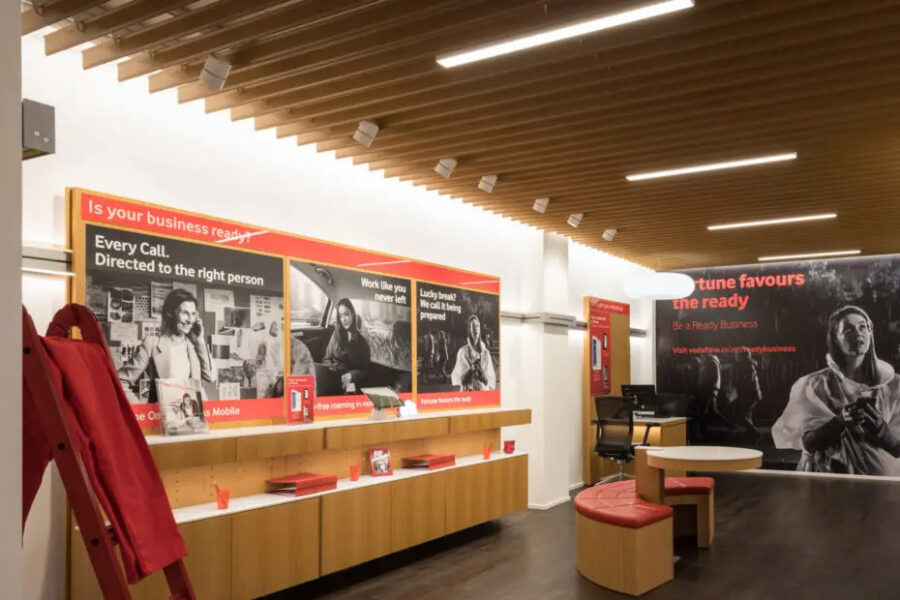

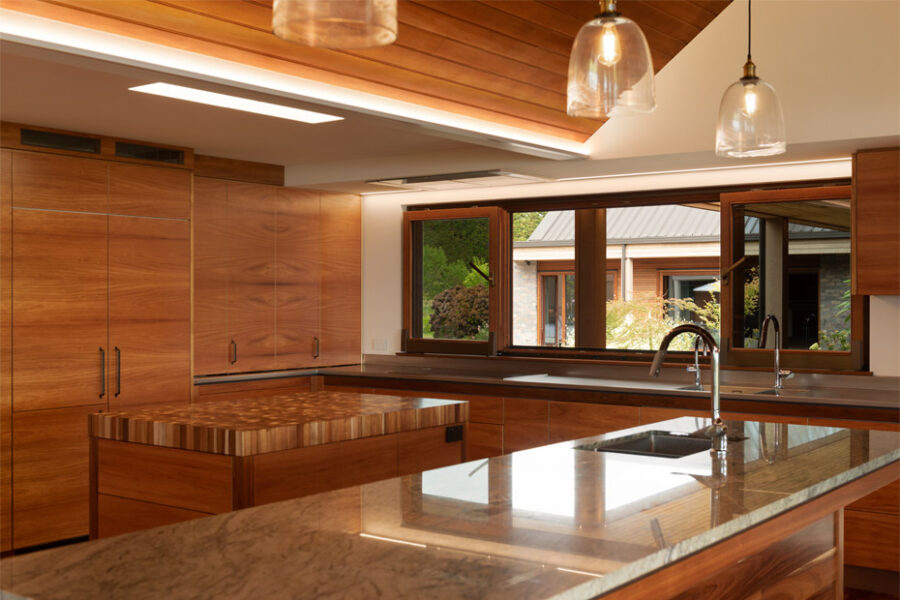

Concealed indirect lighting for living rooms, board rooms, hallways.

Installation

Interior only.

Material

Aluminium body, polycarbonate diffuser, aluminium end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Opal Polycarbonate, Clear Polycarbonate

led strip options
features
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
  • Provides heat sinking for high wattage LED strips.
  • Dust and grease protection.
mounting options
  • Surface Mounted
  • Wall Mounted
finish options
  • Natural Silver Anodised
  • Textura White Powder Coat
  • Textura Black Powder Coat
  • Custom Powder Coat Colours.
  • Product Information
    Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
  • Download
    Product Information Pack
    Click to view @ Dropbox.com

Joining & Mounting Accessories

Straight Joiner

JN-LOC

Bulkhead mounting adaptor
Bulkhead Mounting Adaptor

MA – 4M
