Bob Each Way 65

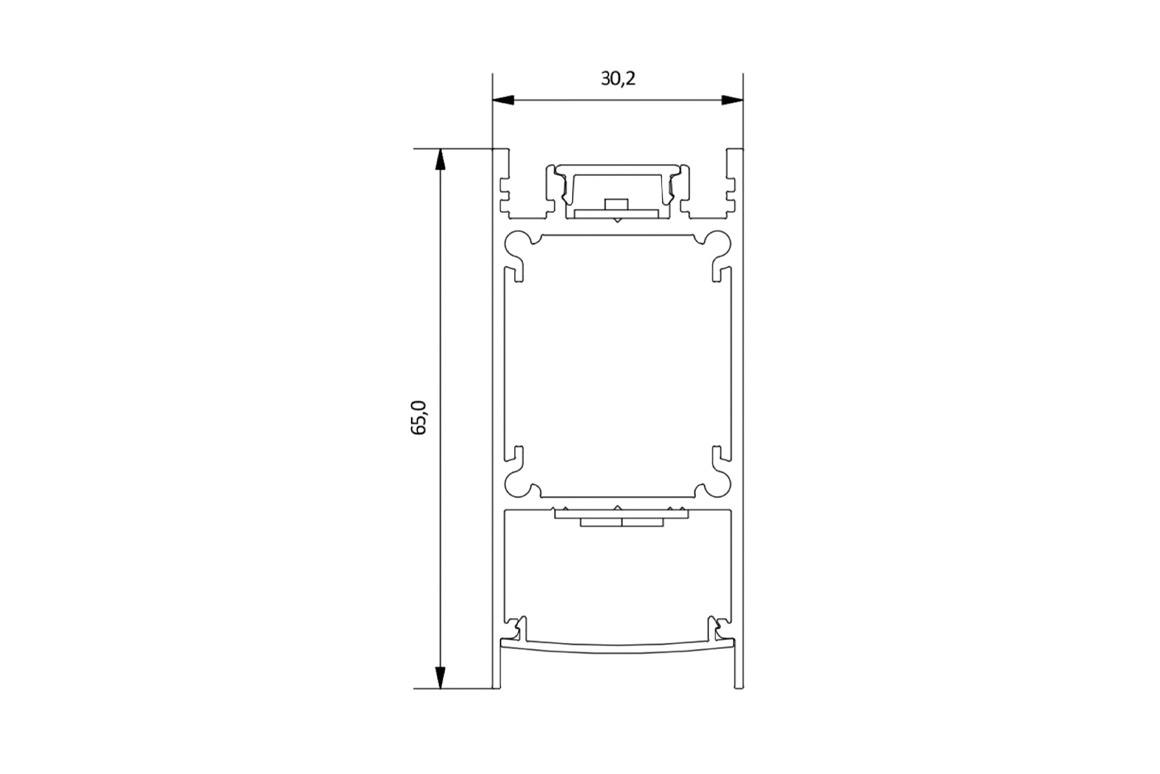

The Bob Each Way 65 profile is a compact uplight/downlight solution. A versatile system suitable for various mounting options, Bob Each Way 65 can be surface mounted, wall mounted and suspended. Both wire and rod suspension options are available for the Bob Each Way 65 profile.

Product Description

Application

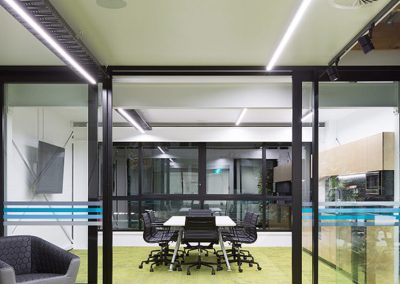

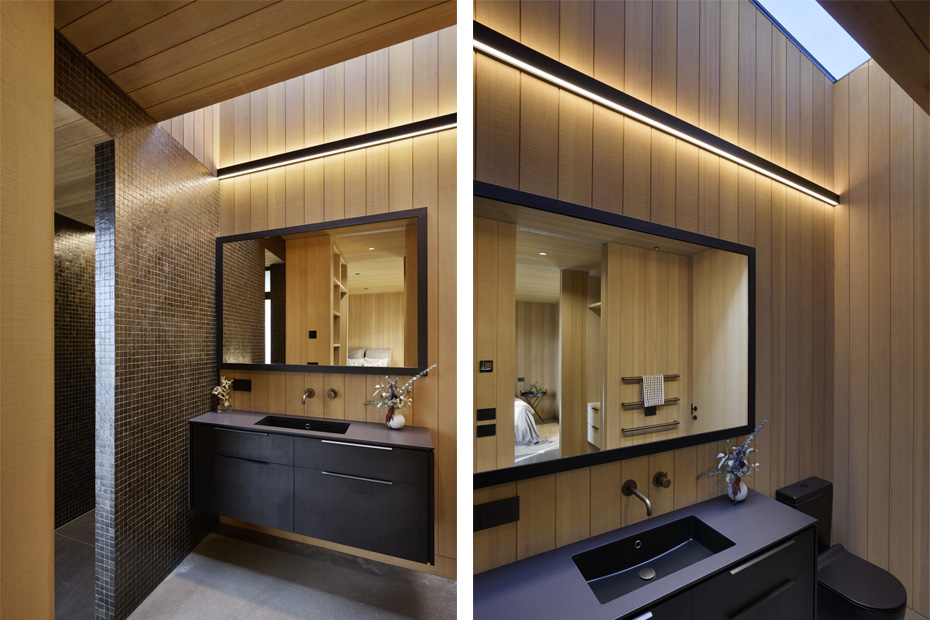

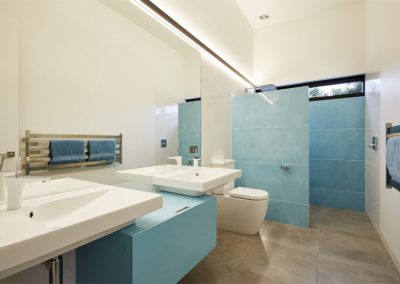

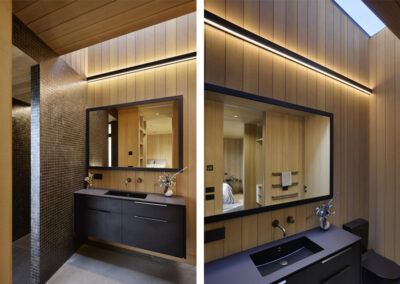

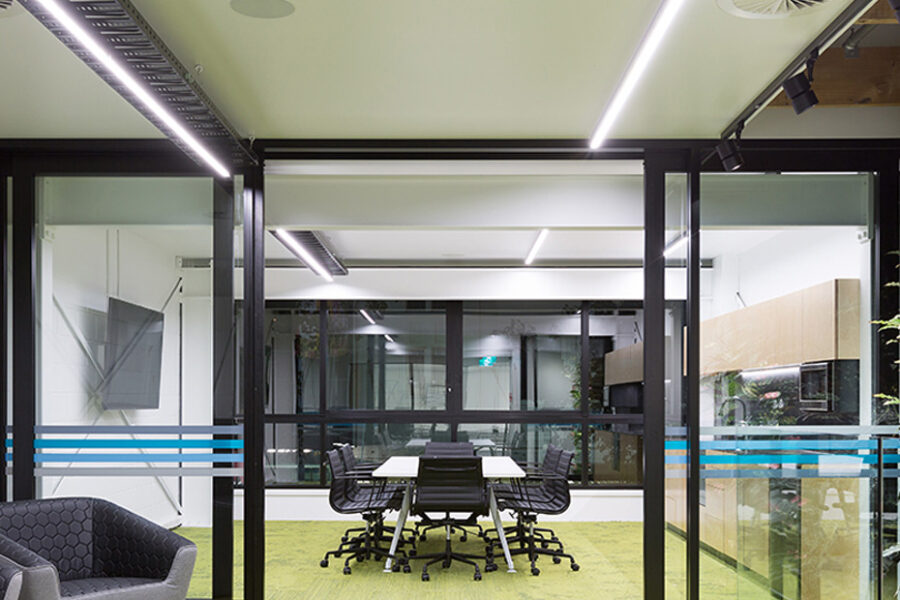

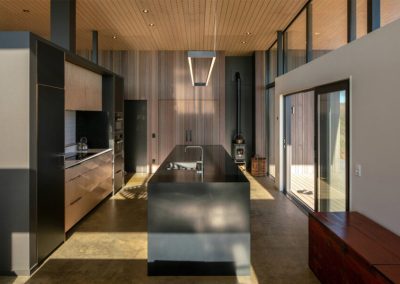

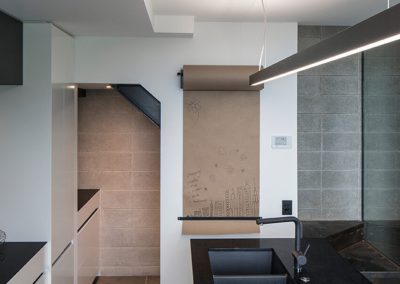

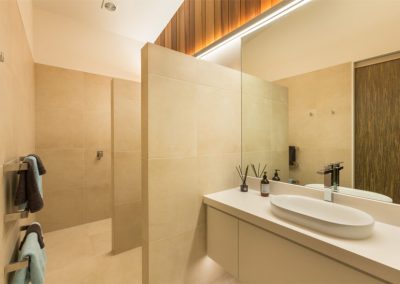

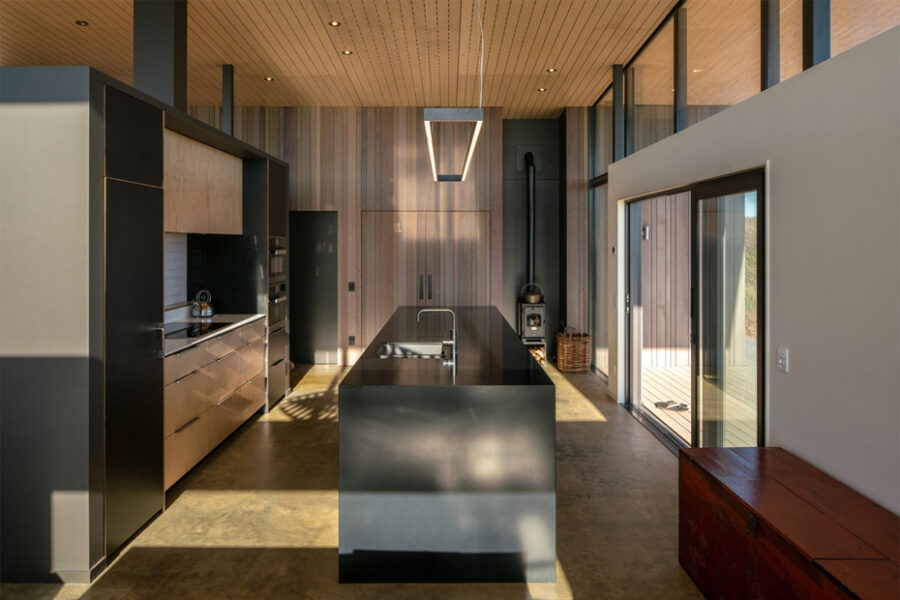

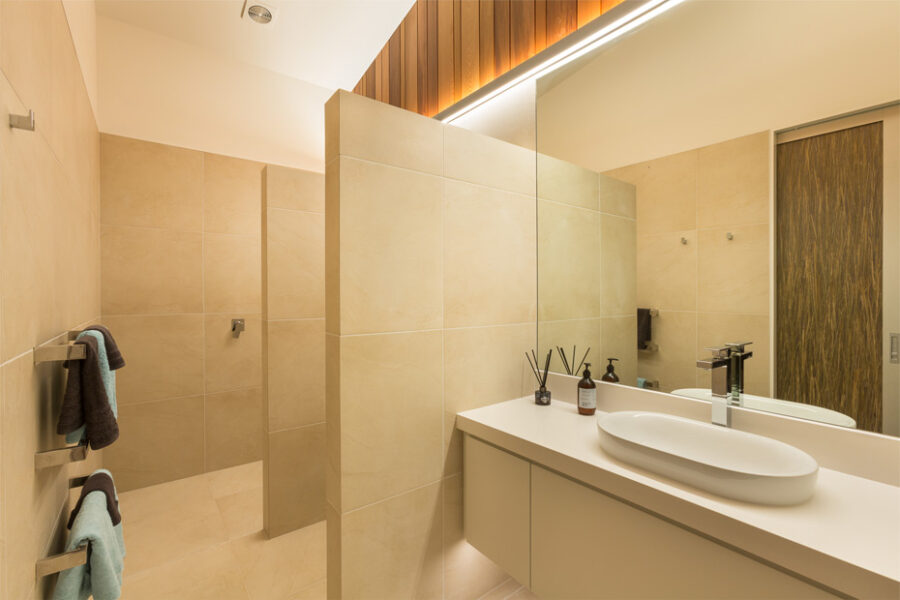

Task lighting over kitchen islands or reception counters, mirror lighting.

Installation

Interior and exterior (with IP65 or IP67 rated LED strip).

Material

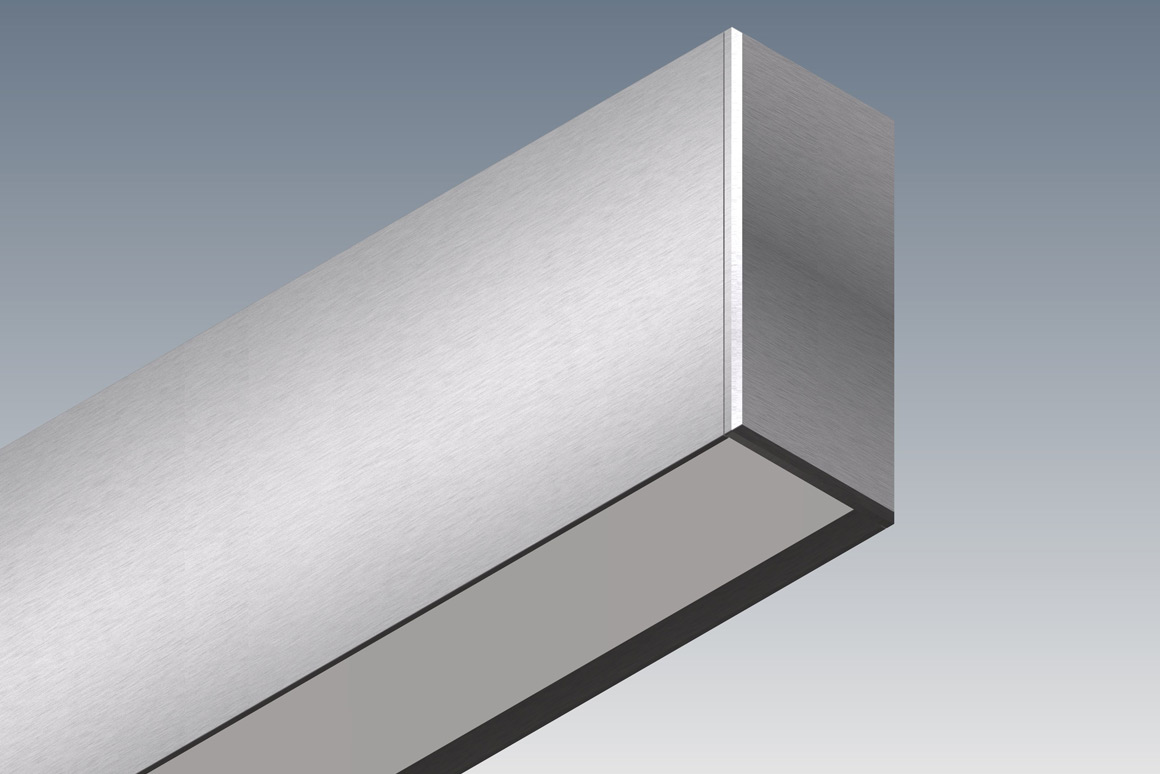

Aluminium body, polycarbonate diffuser, aluminium end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Opal Polycarbonate, Clear Polycarbonate

led strip options

View here

features

Customised lengths and configurations, made to measure.
New Zealand designed and made.
Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
Provides heat sinking for high wattage LED strips.
Dust and grease protection.

mounting options

Surface Mounted
Rod Suspended
Wire Suspended
Wall Mounted

finish options

Natural Silver Anodised
Textura White Powder Coat
Textura Black Powder Coat
Custom Powder Coat Colours.

Product Information
Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
Download
Product Information Pack
Click to view @ Dropbox.com

Joining & Mounting Accessories

Straight Joiner

JN-ST-6

90 Degree Joiner

JN-90-6

Joiner Locator

JN-LOC

Suspension Rod – 0.5m, 1m, 2m

ROD-0.5M / ROD-1M / ROD-2M

Surface Mounted Rod Suspension Kit (Rod Not Incl.)

SRK-10-S (SILVER) / SRK-10-W (WHITE) / SRK-10-B (BLACK)

Recessed Rod Suspension Kit (Rod Not Incl.)

SRK-5-S (SILVER) / SRK-5-W (WHITE) / SRK-5-B (BLACK)

Cable Base 60, Recessed

CB-BEW-60-R-S (SILVER) / CB-BEW-60-R-W (WHITE)

Cable Base 80, Surface Mount

CB-BEW-80-SM-S (SILVER) / CB-BEW-80-SM-W (WHITE)

WIRE SUSPENSION – 2M, 4M

SWK-5-2M / SWK-5-4M

Wall Bracket

WB-BEW
