Angle Andy 25

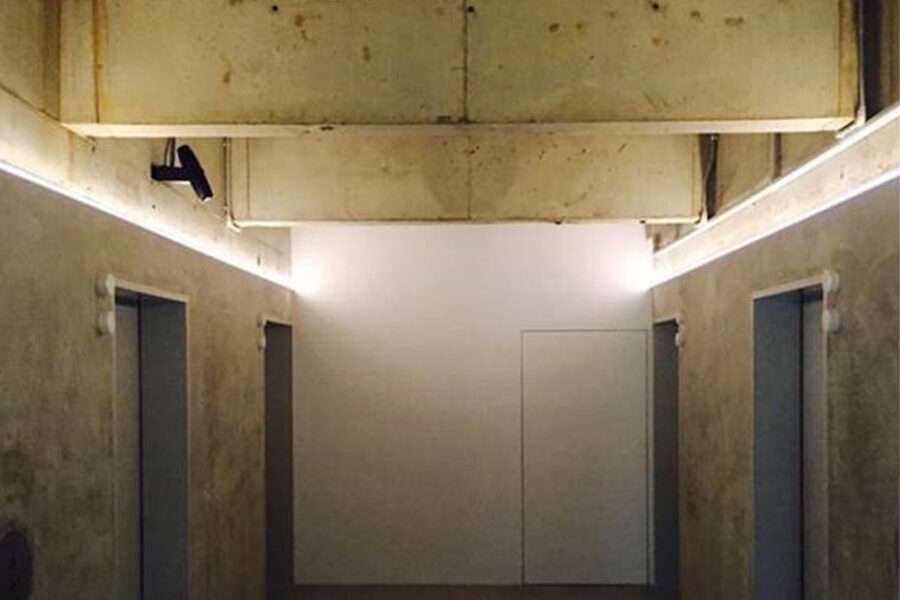

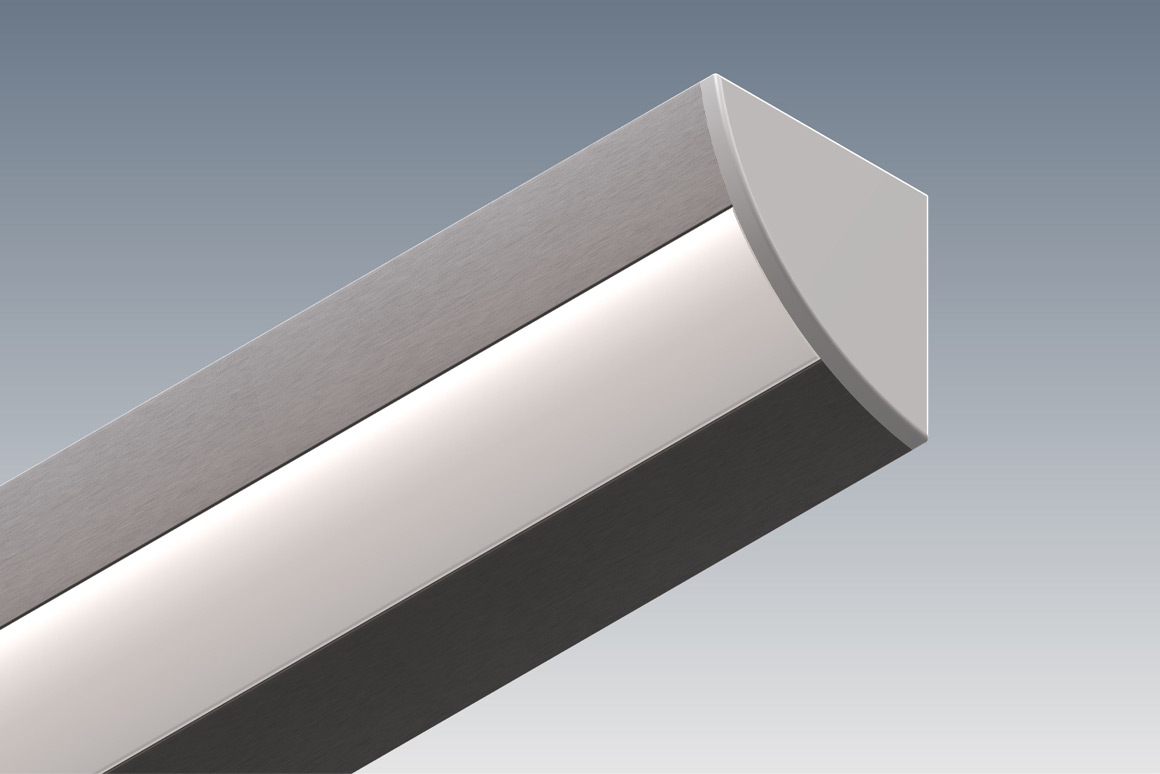

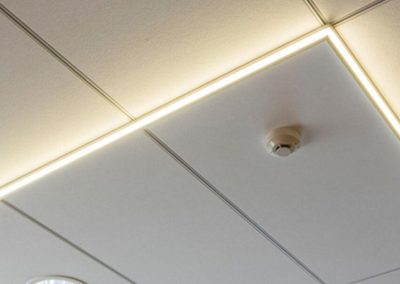

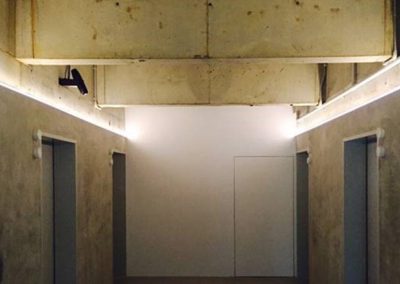

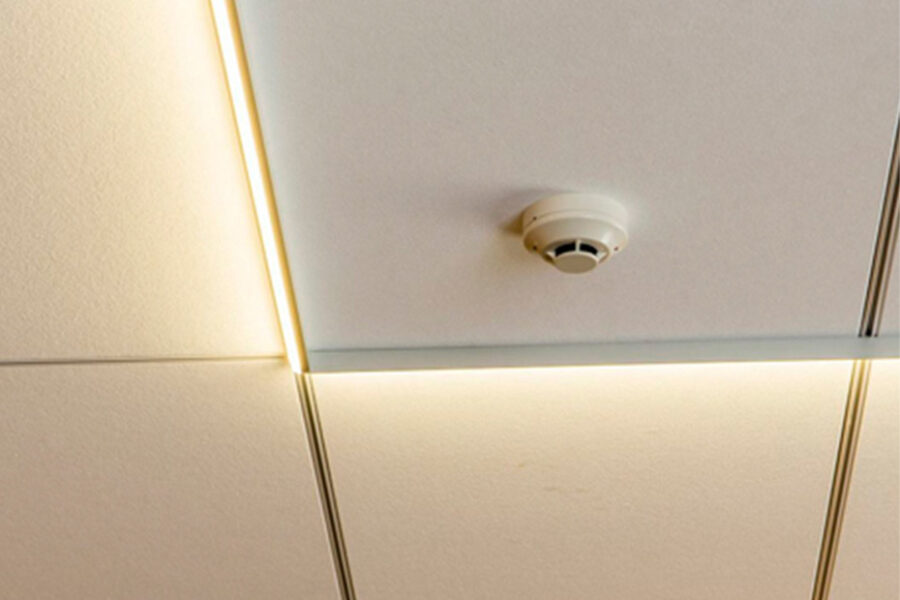

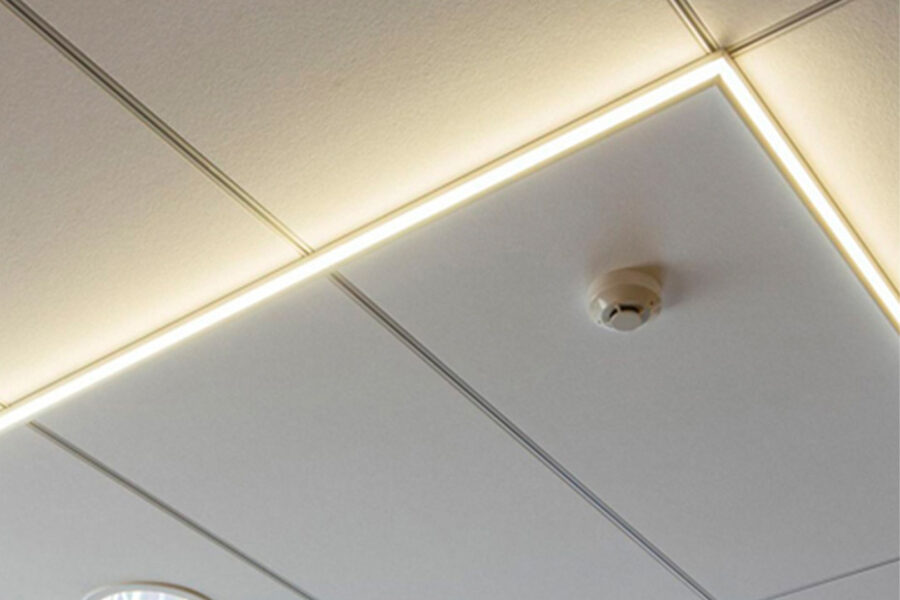

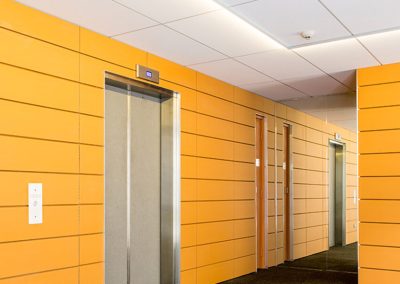

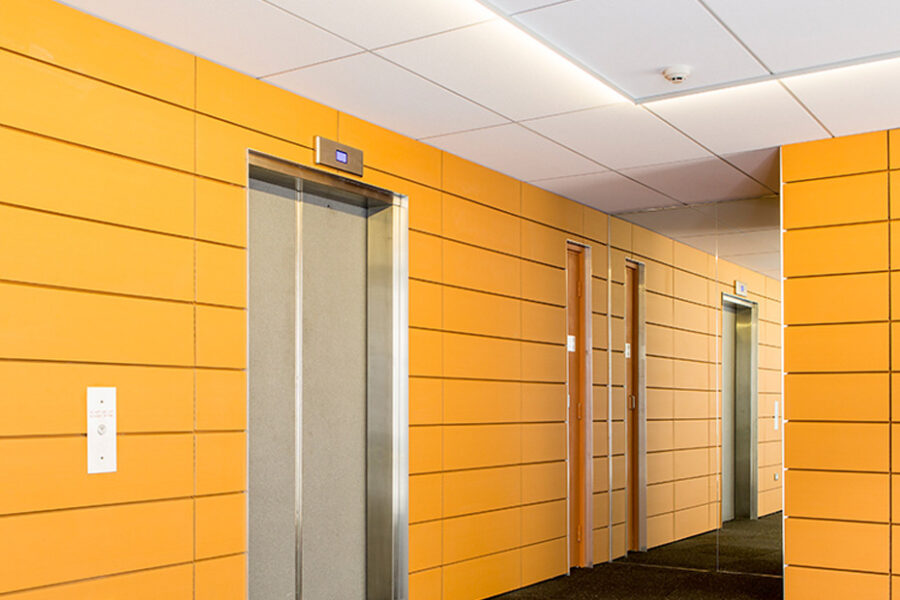

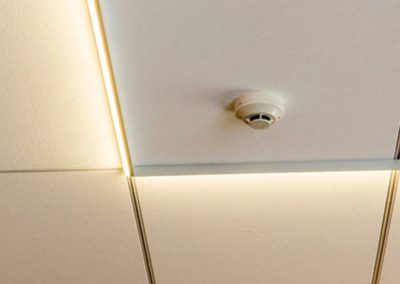

The Angle Andy 25 profile is perfect for mounting in corners of joinery, corners of perpendicular walls or into the corner of a wall and ceiling. Angle Andy 25 features one smooth side, meaning it is not confined to corner mounting, but can also be mounted with one side of the extrusion visible – ideal for wall washing or glass cabinetry.

SKU: AA25 Categories: ,
Share

Product Description

Application

Task lighting in kitchen cabinetry, lighting for shelving or display units, hallway lighting, wall-washing.

Installation

Interior and exterior (with IP65 or IP67 rated LED strip).

Material

Aluminium body, polycarbonate diffuser, AES plastic end caps.

Light Source

LED ribbon strip.

Power Supply

24V DC – remote driver options ranging from 6W up to 320W.

dimming

Various options available including Casambi, DALI, 0-10V, DMX – please enquire.

diffuser options

Opal Polycarbonate, Clear Polycarbonate

led strip options
features
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
  • Provides heat sinking for high wattage LED strips.
  • Dust and grease protection.
mounting options
  • Surface Mounted
  • Rod Suspended
finish options
  • Natural Silver Anodised
  • Textura White Powder Coat
  • Textura Black Powder Coat
  • Custom Powder Coat Colours.
  • Product Information
    Download the most up to date product information: Data Sheet, Installation Instructions, Photometric Files and BIM models.
  • Download
    Product Information Pack
    Click to view @ Dropbox.com

Joining & Mounting Accessories

Straight Joiner, for Top of Extrusion

JN-ST-12

90 Degree Joiner

JN-90-12

135 Degree Joiner

JN-135-12

120 Degree Joiner

JN-120-12

Joinery Mounting Clip

JMC-12

Suspension rod
Suspension Rod – 0.5m, 1m, 2m

ROD-0.5M / ROD-1M / ROD-2M

Surface mounted rod suspension kit
Surface Mounted Rod Suspension Kit (Rod Not Incl.)

SRK-6-S (SILVER) / SRK-6-W (WHITE) / SRK-6-B (BLACK)

Recessed rod suspension kit
Recessed Rod Suspension Kit (Rod Not Incl.)

SRK-1-S (SILVER) / SRK-1-W (WHITE) / SRK-1-B (BLACK)
